DSPIC30F6014-20E/PF

DSPIC30F6014-20E/PF Overview

Product belongs to the dsPIC 30F series. Tray is the packaging method for this product 80-TQFP Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 80-TQFP (14x14) This product has 68 I/O ports for versatile connectivity. Operating frequency: 20 MIPS Program memory type: FLASH CAN, I2C, SPI, UART/USART interface Supply Voltage: 2.5 V ~ 5.5 V 16-Bit architecture Internal oscillator type

DSPIC30F6014-20E/PF Image

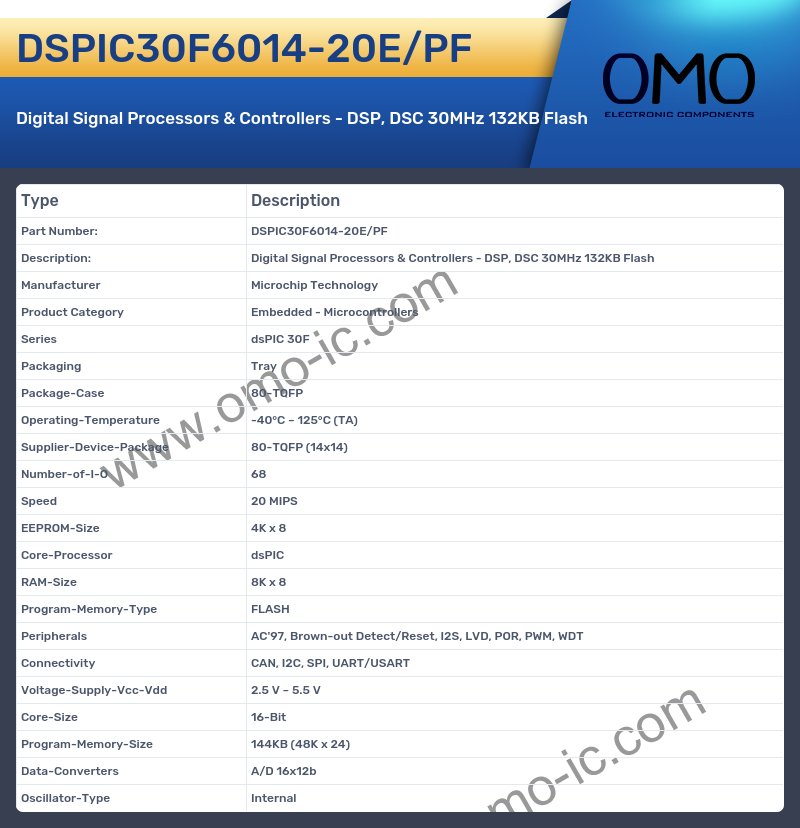

DSPIC30F6014-20E/PF Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series dsPIC 30F
• Packaging Tray
• Package-Case 80-TQFP
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 80-TQFP (14x14)
• Number-of-I-O 68
• Speed 20 MIPS
• EEPROM-Size 4K x 8
• Core-Processor dsPIC
• RAM-Size 8K x 8
• Program-Memory-Type FLASH
• Peripherals AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT
• Connectivity CAN, I2C, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 2.5 V ~ 5.5 V
• Core-Size 16-Bit
• Program-Memory-Size 144KB (48K x 24)
• Data-Converters A/D 16x12b
• Oscillator-Type Internal
