DSPIC33EP512MU814-E/PL

DSPIC33EP512MU814-E/PL Overview

Product belongs to the dsPIC 33EP series. Tray is the packaging method for this product 144-LQFP Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 144-LQFP (20x20) This product has 122 I/O ports for versatile connectivity. Operating frequency: 60 MIPs Program memory type: FLASH CAN, I2C, IrDA, LIN, QEI, SPI, UART/USART, USB OTG interface Supply Voltage: 3 V ~ 3.6 V 16-Bit architecture Internal oscillator type

DSPIC33EP512MU814-E/PL Image

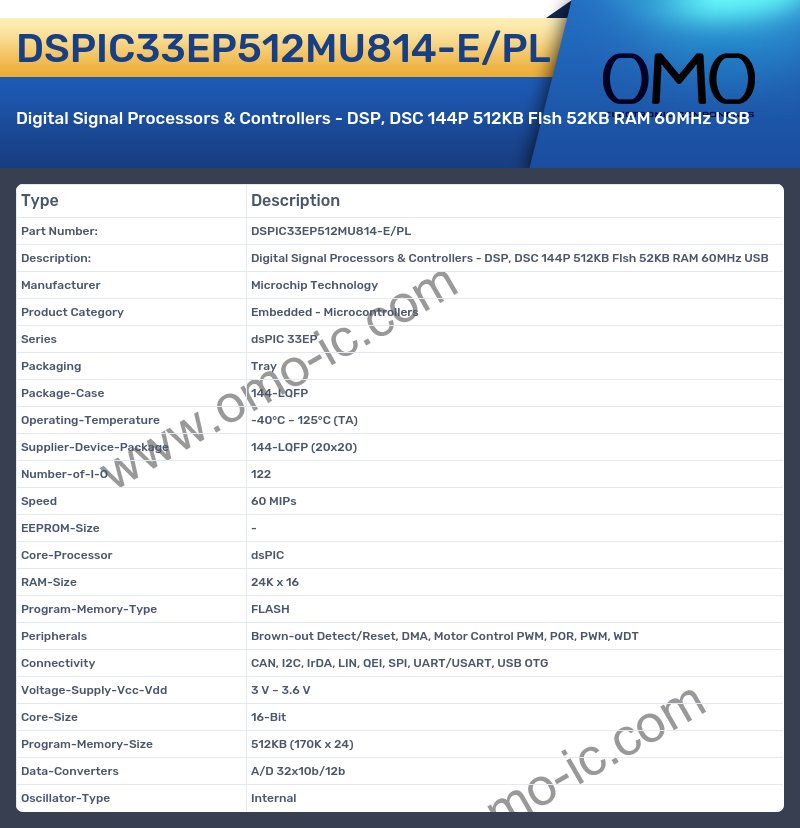

DSPIC33EP512MU814-E/PL Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series dsPIC 33EP
• Packaging Tray
• Package-Case 144-LQFP
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 144-LQFP (20x20)
• Number-of-I-O 122
• Speed 60 MIPs
• EEPROM-Size -
• Core-Processor dsPIC
• RAM-Size 24K x 16
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT
• Connectivity CAN, I2C, IrDA, LIN, QEI, SPI, UART/USART, USB OTG
• Voltage-Supply-Vcc-Vdd 3 V ~ 3.6 V
• Core-Size 16-Bit
• Program-Memory-Size 512KB (170K x 24)
• Data-Converters A/D 32x10b/12b
• Oscillator-Type Internal
