E-L6258EA Overview

Product belongs to the L6258EA series. This product is categorized as Stepper Motor Controllers / Drivers Type: Bipolar Stepper Motor Driver Tube is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications PowerSO-36 DMOS is the technology used. Operational temperature range: 150°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: Parallel Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: PowerSO-36 The Half Bridge (4). Voltage-Load range is 12 V ~ 40 V. Brushed DC motor type is used for high-performance and efficient operation. This product operates at a 34 V supply voltage for reliable performance. 15 mA is 92 nA.

E-L6258EA Image

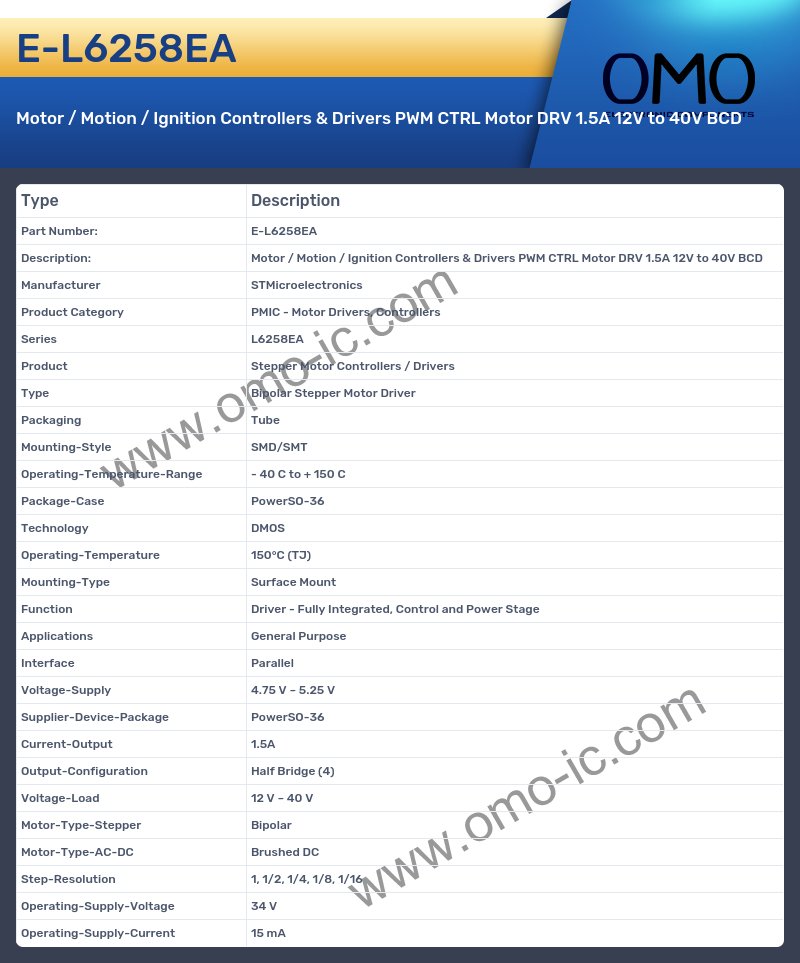

E-L6258EA Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Motor Drivers, Controllers
• Series L6258EA
• Product Stepper Motor Controllers / Drivers
• Type Bipolar Stepper Motor Driver
• Packaging Tube
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case PowerSO-36
• Technology DMOS
• Operating-Temperature 150°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface Parallel
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package PowerSO-36
• Current-Output 1.5A
• Output-Configuration Half Bridge (4)
• Voltage-Load 12 V ~ 40 V
• Motor-Type-Stepper Bipolar
• Motor-Type-AC-DC Brushed DC
• Step-Resolution 1, 1/2, 1/4, 1/8, 1/16
• Operating-Supply-Voltage 34 V
• Operating-Supply-Current 15 mA
