EMIF06-MSD02N16

EMIF06-MSD02N16 Overview

Product belongs to the IPAD series. Type: Low Pass Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 0.022" (0.55mm). 16-UFDFN Exposed Pad RC (Pi) is the technology used. Operational temperature range: -30°C ~ 85°C Surface Mount mounting type Rated voltage range of - Versatile Data Lines for Mobile Devices applications for maximum usability Number of channels: 6 Filter order is 2nd - of 10dB for superior noise reduction 45 Ohms Resistance Channel There are two Values: R = 45 Ohms, C = 20pF (Total). ESD-Protection": " Yes

EMIF06-MSD02N16 Image

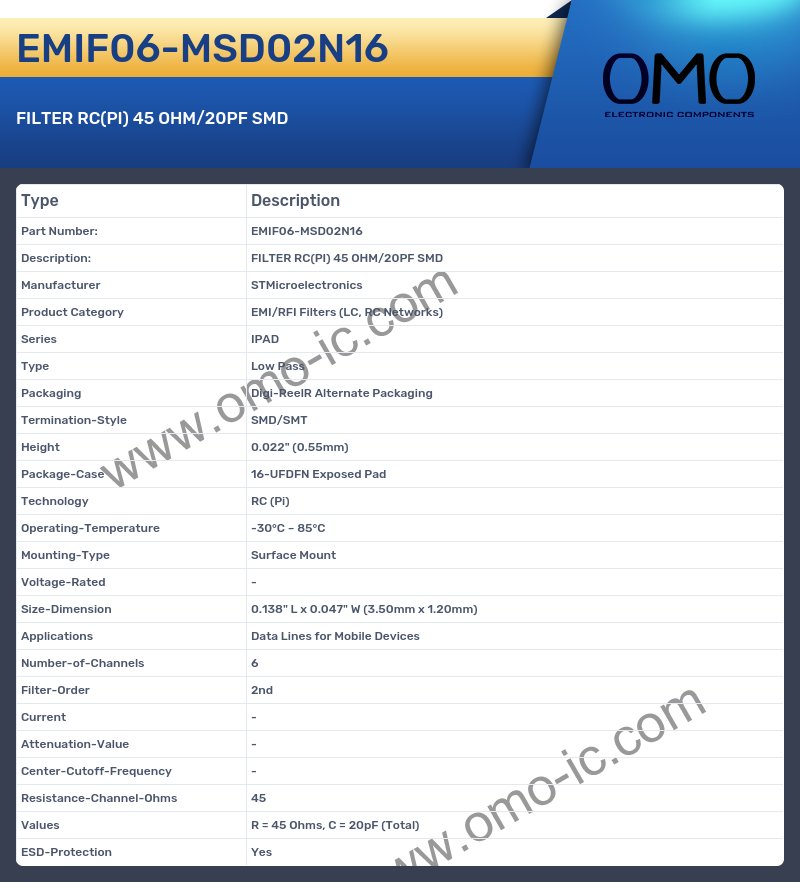

EMIF06-MSD02N16 Specifications

• Manufacturer STMicroelectronics
• Product Category EMI/RFI Filters (LC, RC Networks)
• Series IPAD
• Type Low Pass
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Height 0.022" (0.55mm)
• Package-Case 16-UFDFN Exposed Pad
• Technology RC (Pi)
• Operating-Temperature -30°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Rated -
• Size-Dimension 0.138" L x 0.047" W (3.50mm x 1.20mm)
• Applications Data Lines for Mobile Devices
• Number-of-Channels 6
• Filter-Order 2nd
• Current -
• Attenuation-Value -
• Center-Cutoff-Frequency -
• Resistance-Channel-Ohms 45
• Values R = 45 Ohms, C = 20pF (Total)
• ESD-Protection Yes
