ESDA25L

ESDA25L Overview

Product belongs to the ESDA, TRANSIL series. Type: Zener Tape & Reel (TR) is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. TO-236-3, SC-59, SOT-23-3 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 2 Channel 1 Channel Supplier device package: SOT-23-3 - Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 24V. The Voltage-Breakdown-Min is 25V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 300 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Breakdown-Voltage: 25 V The Cd-Diode-Capacitance is 50 pF 24 V working voltage Polarity: Unidirectional Bidirectional 9 kV of Vesd-Voltage-ESD-Contact 16 kV Vesd-Voltage-ESD-Air-Gap This product operates at a 24 V supply voltage for reliable performance.

ESDA25L Image

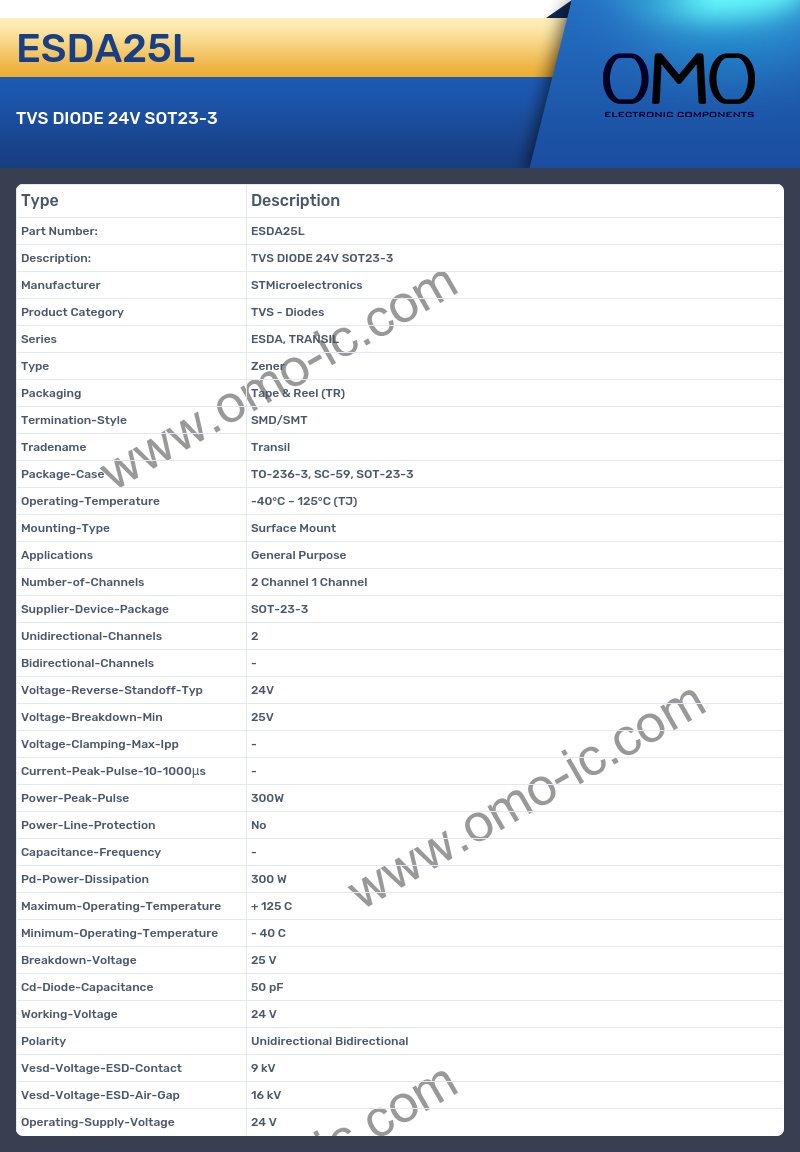

ESDA25L Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series ESDA, TRANSIL
• Type Zener
• Packaging Tape & Reel (TR)
• Termination-Style SMD/SMT
• Tradename Transil
• Package-Case TO-236-3, SC-59, SOT-23-3
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 2 Channel 1 Channel
• Supplier-Device-Package SOT-23-3
• Unidirectional-Channels 2
• Bidirectional-Channels -
• Voltage-Reverse-Standoff-Typ 24V
• Voltage-Breakdown-Min 25V
• Voltage-Clamping-Max-Ipp -
• Current-Peak-Pulse-10-1000μs -
• Power-Peak-Pulse 300W
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 300 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 25 V
• Cd-Diode-Capacitance 50 pF
• Working-Voltage 24 V
• Polarity Unidirectional Bidirectional
• Vesd-Voltage-ESD-Contact 9 kV
• Vesd-Voltage-ESD-Air-Gap 16 kV
• Operating-Supply-Voltage 24 V
