ESDCAN24-2BLY Overview

Product belongs to the Automotive, AEC-Q101, ESDCAY, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. TO-236-3, SC-59, SOT-23-3 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile Automotive, CAN applications for maximum usability Number of channels: 2 Channel Supplier device package: SOT-23-3 2 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 24V (Max). The Voltage-Breakdown-Min is 26.2V. No Power-Line-Protection 30pF @ 1MHz Capacitance-Frequency Power-off control: 230 W Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Breakdown-Voltage: 27 V Clamping-Voltage: 43 V The Cd-Diode-Capacitance is 30 pF 24 V working voltage Polarity: Bidirectional 5 A of IPP, Peak Pulse, and Current 30 kV of Vesd-Voltage-ESD-Contact 30 kV Vesd-Voltage-ESD-Air-Gap

ESDCAN24-2BLY Image

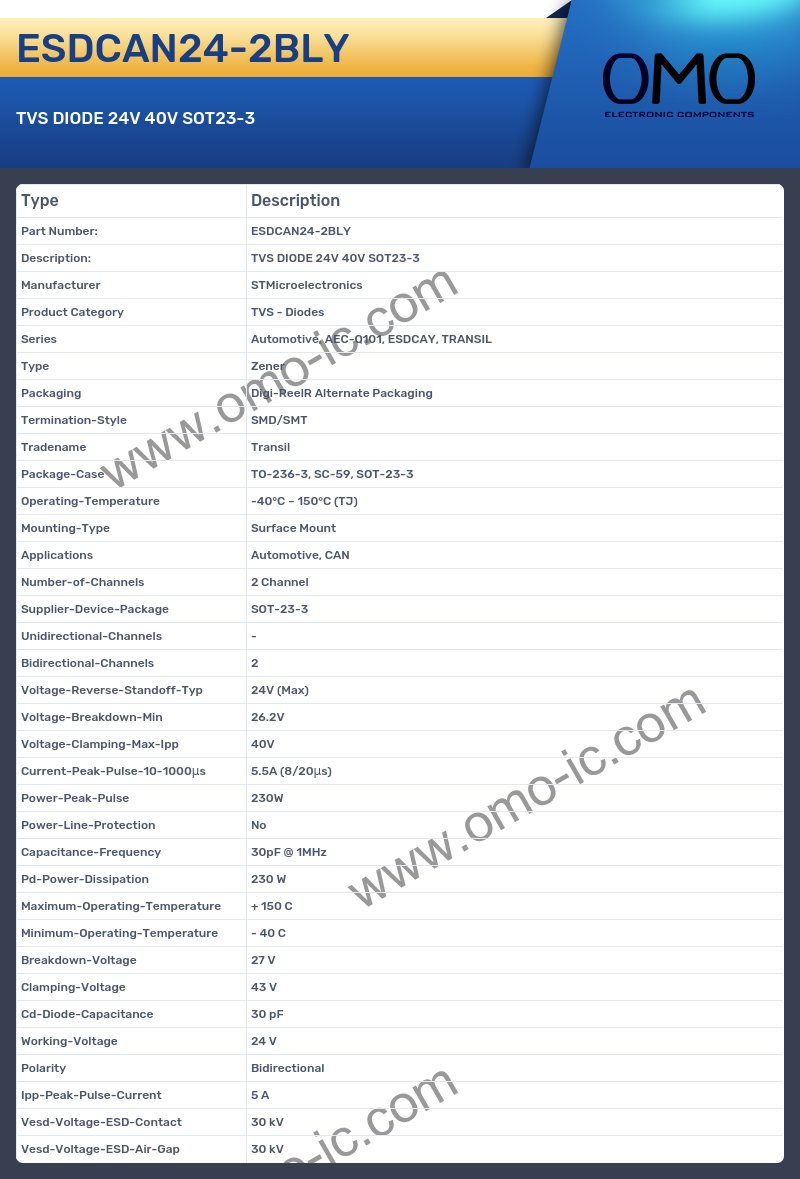

ESDCAN24-2BLY Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series Automotive, AEC-Q101, ESDCAY, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Tradename Transil
• Package-Case TO-236-3, SC-59, SOT-23-3
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications Automotive, CAN
• Number-of-Channels 2 Channel
• Supplier-Device-Package SOT-23-3
• Unidirectional-Channels -
• Bidirectional-Channels 2
• Voltage-Reverse-Standoff-Typ 24V (Max)
• Voltage-Breakdown-Min 26.2V
• Voltage-Clamping-Max-Ipp 40V
• Current-Peak-Pulse-10-1000μs 5.5A (8/20μs)
• Power-Peak-Pulse 230W
• Power-Line-Protection No
• Capacitance-Frequency 30pF @ 1MHz
• Pd-Power-Dissipation 230 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 27 V
• Clamping-Voltage 43 V
• Cd-Diode-Capacitance 30 pF
• Working-Voltage 24 V
• Polarity Bidirectional
• Ipp-Peak-Pulse-Current 5 A
• Vesd-Voltage-ESD-Contact 30 kV
• Vesd-Voltage-ESD-Air-Gap 30 kV
