HCF4081M013TR

HCF4081M013TR Overview

Product belongs to the 4000 series. This product is categorized as Single-Function Gate Digi-ReelR is the packaging method for this product Weight of 0.008501 oz SMD/SMT Mounting-Style SOP-14 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 20 V Supplier device package: 14-SO 4 is 8. 4 Gate is the number of gates included in this product. 5μA maximum quiescent current. AND Gate logic type 1.5 V ~ 4 V is a Logic-Level-Low; 3.5 V ~ 11 V is the Logic-Level-High Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Maximum supply voltage of 20 V Minimum supply voltage is 3 V HCF40 logic type 250 ns is 23 microseconds. High-Level-Output-Current of - 2.4 mA 2.4 mA low-level output current Number-of-Input-Lines: 2 Input Number-of-Output-Lines: 1 Output AND logic function

HCF4081M013TR Image

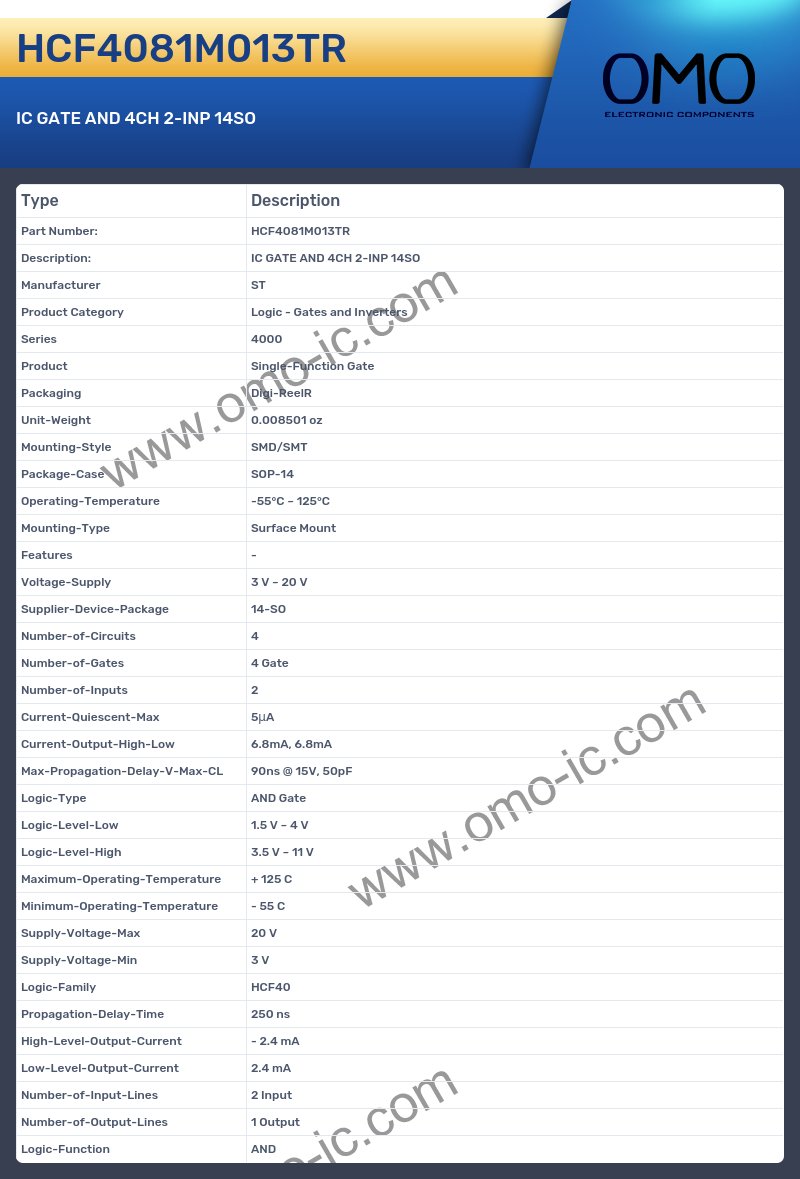

HCF4081M013TR Specifications

• Manufacturer ST
• Product Category Logic - Gates and Inverters
• Series 4000
• Product Single-Function Gate
• Packaging Digi-ReelR
• Unit-Weight 0.008501 oz
• Mounting-Style SMD/SMT
• Package-Case SOP-14
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 3 V ~ 20 V
• Supplier-Device-Package 14-SO
• Number-of-Circuits 4
• Number-of-Gates 4 Gate
• Number-of-Inputs 2
• Current-Quiescent-Max 5μA
• Current-Output-High-Low 6.8mA, 6.8mA
• Max-Propagation-Delay-V-Max-CL 90ns @ 15V, 50pF
• Logic-Type AND Gate
• Logic-Level-Low 1.5 V ~ 4 V
• Logic-Level-High 3.5 V ~ 11 V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Supply-Voltage-Max 20 V
• Supply-Voltage-Min 3 V
• Logic-Family HCF40
• Propagation-Delay-Time 250 ns
• High-Level-Output-Current - 2.4 mA
• Low-Level-Output-Current 2.4 mA
• Number-of-Input-Lines 2 Input
• Number-of-Output-Lines 1 Output
• Logic-Function AND
