HMC345LP3

HMC345LP3 Overview

Product belongs to the HMC345 series. Cut Strip Alternate Packaging is the packaging method for this product Weight of 57100 mg SMD/SMT Mounting-Style 16-VFQFN Exposed Pad Impedance value is 50 Ohm, 75 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: 5V Supplier device package: 16-SMT (3x3) Circuit type: SP4T Topology: Absorptive feedback P1dB is 21dBm (typ) IP1dB RF-Type: General Purpose Frequency upper limit of 8GHz Maximum operating temperature of + 85 C Minimum operating temperature: - 55 C Switch Configuration: SP4T 3 mA is 92 nA. The operating frequency is DC to 8 GHz. Maximum supply voltage of 5 V Quad switch functionality The 35 dB of this product is 35 dB.

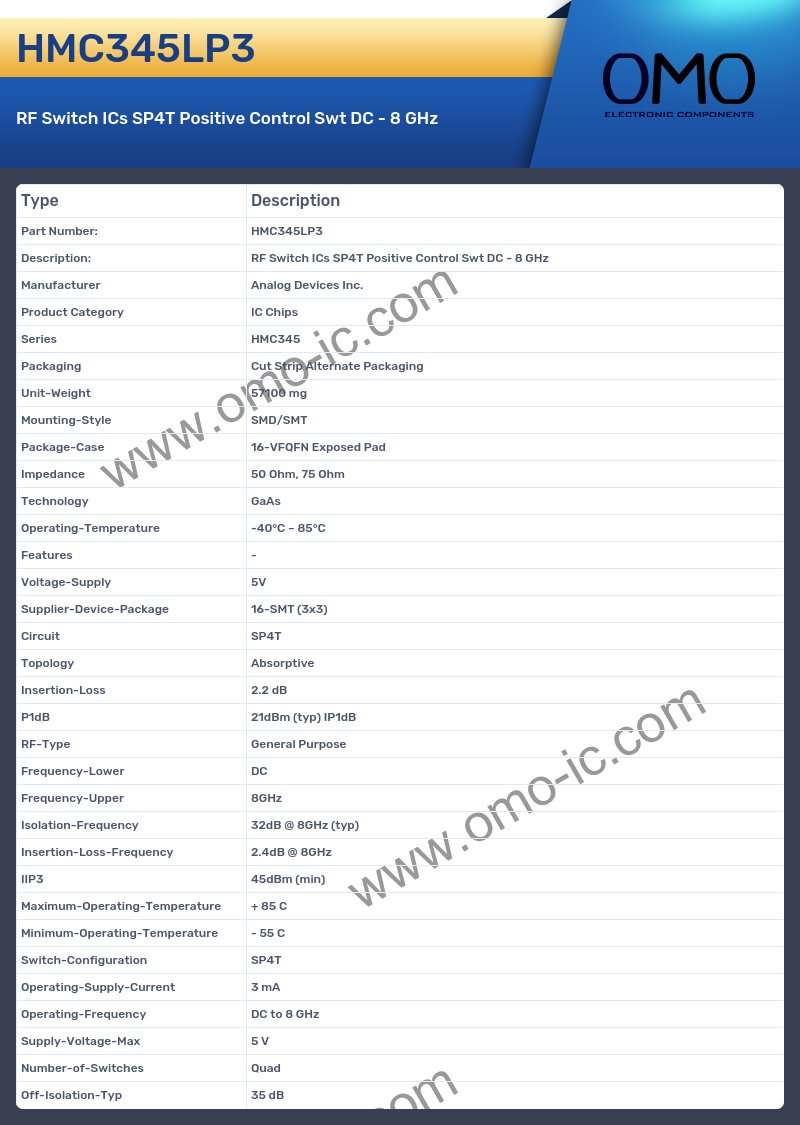

HMC345LP3 Image

HMC345LP3 Specifications

• Manufacturer Analog Devices Inc.
• Product Category IC Chips
• Series HMC345
• Packaging Cut Strip Alternate Packaging
• Unit-Weight 57100 mg
• Mounting-Style SMD/SMT
• Package-Case 16-VFQFN Exposed Pad
• Impedance 50 Ohm, 75 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply 5V
• Supplier-Device-Package 16-SMT (3x3)
• Circuit SP4T
• Topology Absorptive
• Insertion-Loss 2.2 dB
• P1dB 21dBm (typ) IP1dB
• RF-Type General Purpose
• Frequency-Lower DC
• Frequency-Upper 8GHz
• Isolation-Frequency 32dB @ 8GHz (typ)
• Insertion-Loss-Frequency 2.4dB @ 8GHz
• IIP3 45dBm (min)
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 55 C
• Switch-Configuration SP4T
• Operating-Supply-Current 3 mA
• Operating-Frequency DC to 8 GHz
• Supply-Voltage-Max 5 V
• Number-of-Switches Quad
• Off-Isolation-Typ 35 dB
