| Mfr. #: | HMC452ST89 |
|---|---|
| Hersteller: | Analog Devices Inc. |
| Beschreibung: | RF Amplifier 1 Watt pow amp SMT 04 - 2.2 GHz |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | HMC452ST89 Datenblatt |
Product belongs to the HMC452 series. Type: Power Amplifier Cut Strip Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOT-89-4 This product's 400MHz ~ 2.2GHz range is 0Hz to 2.2GHz. GaAs InGaP is the technology used. Frequency Bandwidth: 0.4 GHz to 2.2 GHz Number of channels: 1 Channel Voltage Supply Range: 5V Supplier device package: SOT-89 This product has a 510mA of 200μA. The device offers a 9dB of 26dB. Test-Frequency is 2.1GHz. P1dB is 31.5dBm RF-Type: General Purpose Power-off control: 2.7 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. 510 mA is 92 nA. The operating frequency is 0.4 GHz to 2.2 GHz. NF-Noise-Figure is 6.5 dB 49 dBm OIP3 third-order intercept The 20 dB is 12 dB.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

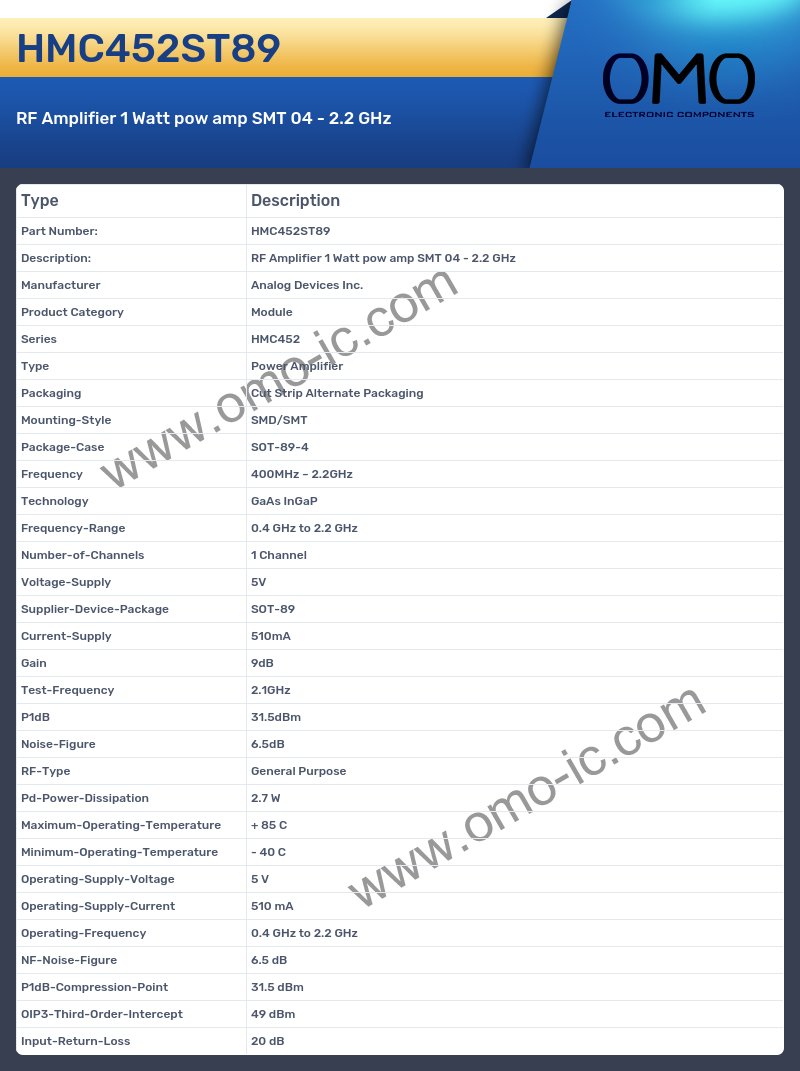

HMC452ST89 Specifications
A: What is the Series of the product?
Q: The Series of the product is HMC452.
A: At what frequency does the Type?
Q: The product Type is Power Amplifier.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Cut Strip Alternate Packaging
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SOT-89-4
A: What is the Frequency of the product?
Q: The Frequency of the product is 400MHz ~ 2.2GHz.
A: What is the Technology of the product?
Q: The Technology of the product is GaAs InGaP.
A: Is the cutoff frequency of the product Frequency-Range?
Q: Yes, the product's Frequency-Range is indeed 0.4 GHz to 2.2 GHz
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 1 Channel.
A: What is the Voltage-Supply of the product?
Q: The Voltage-Supply of the product is 5V.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed SOT-89
A: Is the cutoff frequency of the product Current-Supply?
Q: Yes, the product's Current-Supply is indeed 510mA
A: What is the Gain of the product?
Q: The Gain of the product is 9dB.
A: At what frequency does the Test-Frequency?
Q: The product Test-Frequency is 2.1GHz.
A: What is the P1dB of the product?
Q: The P1dB of the product is 31.5dBm.
A: At what frequency does the RF-Type?
Q: The product RF-Type is General Purpose.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 2.7 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 85 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: What is the Operating-Supply-Voltage of the product?
Q: The Operating-Supply-Voltage of the product is 5 V.
A: At what frequency does the Operating-Supply-Current?
Q: The product Operating-Supply-Current is 510 mA.
A: What is the Operating-Frequency of the product?
Q: The Operating-Frequency of the product is 0.4 GHz to 2.2 GHz.
A: Is the cutoff frequency of the product NF-Noise-Figure?
Q: Yes, the product's NF-Noise-Figure is indeed 6.5 dB
A: What is the OIP3-Third-Order-Intercept of the product?
Q: The OIP3-Third-Order-Intercept of the product is 49 dBm.
A: At what frequency does the Input-Return-Loss?
Q: The product Input-Return-Loss is 20 dB.
