| Mfr. #: | HMC486LP5E |
|---|---|
| Hersteller: | Analog Devices Inc. |
| Beschreibung: | RF Amplifier 2 Watt pow amp SMT 7 - 9 GHz |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | HMC486LP5E Datenblatt |
Product belongs to the HMC486G series. Type: Power Amplifier Cut Strip is the packaging method for this product Weight of 0.006653 oz SMD/SMT Mounting-Style QFN-32 This product's 7GHz ~ 9GHz range is 0Hz to 2.2GHz. GaAs is the technology used. Frequency Bandwidth: 7 GHz to 9 GHz Number of channels: 1 Channel Voltage Supply Range: 6.5 V ~ 7.5 V Supplier device package: 32-SMT (5x5) This product has a 1.3A of 200μA. The device offers a 22dB of 26dB. Test-Frequency is 7GHz ~ 8GHz. P1dB is 32dBm RF-Type: General Purpose Power-off control: 10 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 7 V supply voltage for reliable performance. 1.3 A is 92 nA. The operating frequency is 7 GHz to 9 GHz. NF-Noise-Figure is 7.5 dB 38 dBm OIP3 third-order intercept The 17 dB is 12 dB.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

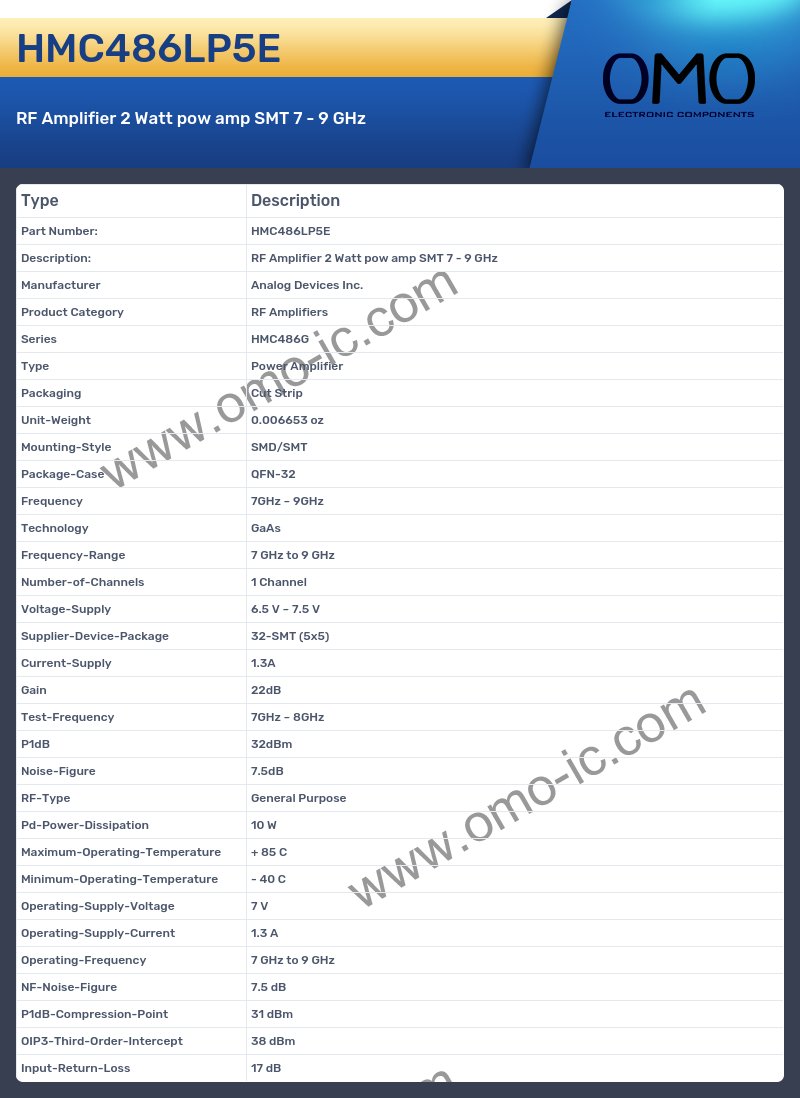

HMC486LP5E Specifications
A: What is the Series of the product?
Q: The Series of the product is HMC486G.
A: Is the cutoff frequency of the product Type?
Q: Yes, the product's Type is indeed Power Amplifier
A: At what frequency does the Packaging?
Q: The product Packaging is Cut Strip.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.006653 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is QFN-32.
A: At what frequency does the Frequency?
Q: The product Frequency is 7GHz ~ 9GHz.
A: What is the Technology of the product?
Q: The Technology of the product is GaAs.
A: Is the cutoff frequency of the product Frequency-Range?
Q: Yes, the product's Frequency-Range is indeed 7 GHz to 9 GHz
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 1 Channel.
A: At what frequency does the Voltage-Supply?
Q: The product Voltage-Supply is 6.5 V ~ 7.5 V.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 32-SMT (5x5).
A: At what frequency does the Current-Supply?
Q: The product Current-Supply is 1.3A.
A: What is the Gain of the product?
Q: The Gain of the product is 22dB.
A: Is the cutoff frequency of the product Test-Frequency?
Q: Yes, the product's Test-Frequency is indeed 7GHz ~ 8GHz
A: Is the cutoff frequency of the product P1dB?
Q: Yes, the product's P1dB is indeed 32dBm
A: At what frequency does the RF-Type?
Q: The product RF-Type is General Purpose.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 10 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 85 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 40 C.
A: What is the Operating-Supply-Voltage of the product?
Q: The Operating-Supply-Voltage of the product is 7 V.
A: At what frequency does the Operating-Supply-Current?
Q: The product Operating-Supply-Current is 1.3 A.
A: What is the Operating-Frequency of the product?
Q: The Operating-Frequency of the product is 7 GHz to 9 GHz.
A: What is the NF-Noise-Figure of the product?
Q: The NF-Noise-Figure of the product is 7.5 dB.
A: At what frequency does the OIP3-Third-Order-Intercept?
Q: The product OIP3-Third-Order-Intercept is 38 dBm.
A: At what frequency does the Input-Return-Loss?
Q: The product Input-Return-Loss is 17 dB.
