| Mfr. #: | HMC546LP2E |
|---|---|
| Hersteller: | Analog Devices Inc. |
| Beschreibung: | RF Switch ICs 10W SPDT Failsafe Switch 0.2 - 2.7 GHz |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | HMC546LP2E Datenblatt |
Product belongs to the HMC546 series. Cut Strip Alternate Packaging is the packaging method for this product Weight of 0.000744 oz SMD/SMT Mounting-Style DFN-6 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: - Supplier device package: 6-DFN (2x2) Circuit type: SPDT Topology: Reflective feedback P1dB is - RF-Type: WiMAX / WiBro Frequency upper limit of 2.7GHz Power-off control: 1.12 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SPDT The operating frequency is 0.2 GHz to 2.7 GHz. Maximum supply voltage of 8 V Minimum supply voltage is 3 V Single switch functionality The 22 dB of this product is 35 dB.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

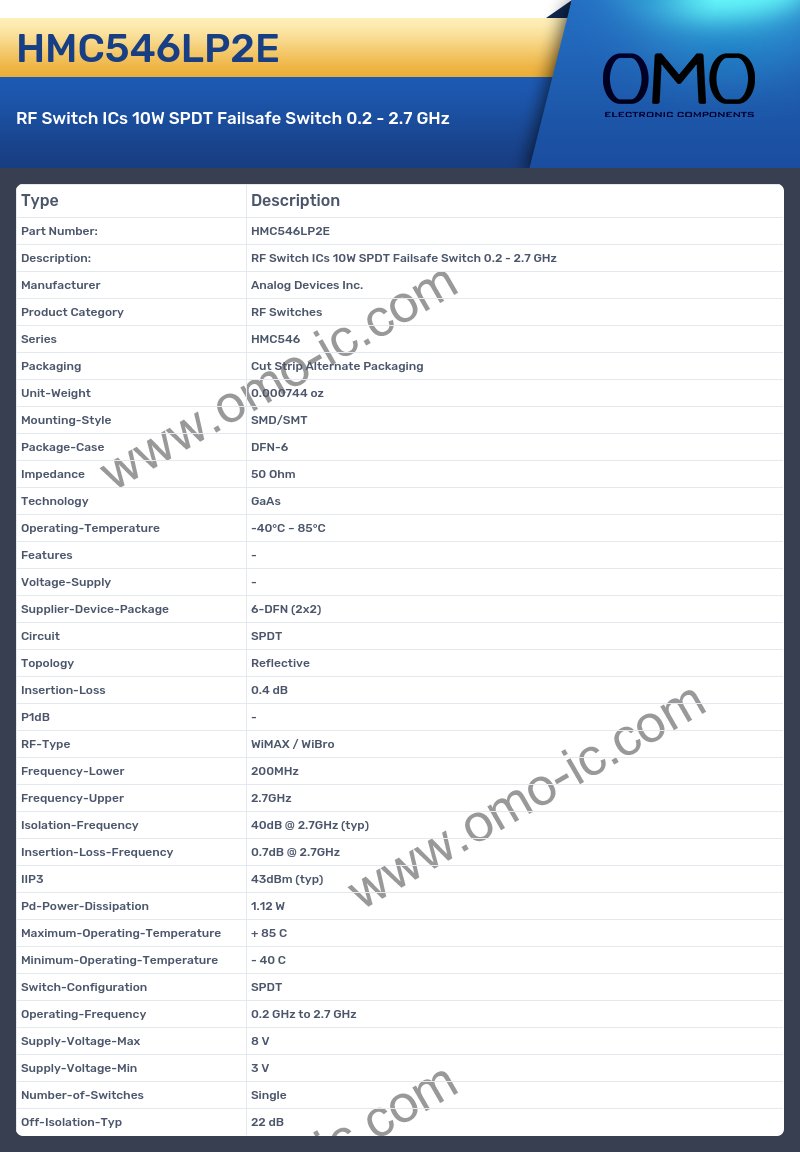

HMC546LP2E Specifications
A: At what frequency does the Series?
Q: The product Series is HMC546.
A: At what frequency does the Packaging?
Q: The product Packaging is Cut Strip Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.000744 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: What is the Package-Case of the product?
Q: The Package-Case of the product is DFN-6.
A: At what frequency does the Impedance?
Q: The product Impedance is 50 Ohm.
A: What is the Technology of the product?
Q: The Technology of the product is GaAs.
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 85°C.
A: What is the Voltage-Supply of the product?
Q: The Voltage-Supply of the product is -.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 6-DFN (2x2).
A: What is the Circuit of the product?
Q: The Circuit of the product is SPDT.
A: At what frequency does the Topology?
Q: The product Topology is Reflective.
A: Is the cutoff frequency of the product P1dB?
Q: Yes, the product's P1dB is indeed -
A: Is the cutoff frequency of the product RF-Type?
Q: Yes, the product's RF-Type is indeed WiMAX / WiBro
A: At what frequency does the Frequency-Upper?
Q: The product Frequency-Upper is 2.7GHz.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 1.12 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 85 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: At what frequency does the Switch-Configuration?
Q: The product Switch-Configuration is SPDT.
A: At what frequency does the Operating-Frequency?
Q: The product Operating-Frequency is 0.2 GHz to 2.7 GHz.
A: What is the Supply-Voltage-Max of the product?
Q: The Supply-Voltage-Max of the product is 8 V.
A: Is the cutoff frequency of the product Supply-Voltage-Min?
Q: Yes, the product's Supply-Voltage-Min is indeed 3 V
A: At what frequency does the Number-of-Switches?
Q: The product Number-of-Switches is Single.
A: Is the cutoff frequency of the product Off-Isolation-Typ?
Q: Yes, the product's Off-Isolation-Typ is indeed 22 dB
