| Mfr. #: | HMC546LP2ETR |
|---|---|
| Hersteller: | Analog Devices Inc. |
| Beschreibung: | RF Switch ICs 10W SPDT Failsafe Switch 0.2 - 2.7 GHz |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | HMC546LP2ETR Datenblatt |
Product belongs to the HMC546 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.000744 oz SMD/SMT Mounting-Style DFN-6 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: 3V Supplier device package: 6-DFN (2x2) Circuit type: SPDT Topology: - feedback P1dB is 41dBm RF-Type: WiMAX / WiBro Frequency upper limit of 2.7GHz Power-off control: 1.12 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SPDT The operating frequency is 0.2 GHz to 2.7 GHz. Maximum supply voltage of 8 V Minimum supply voltage is 3 V Single switch functionality The 22 dB of this product is 35 dB.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

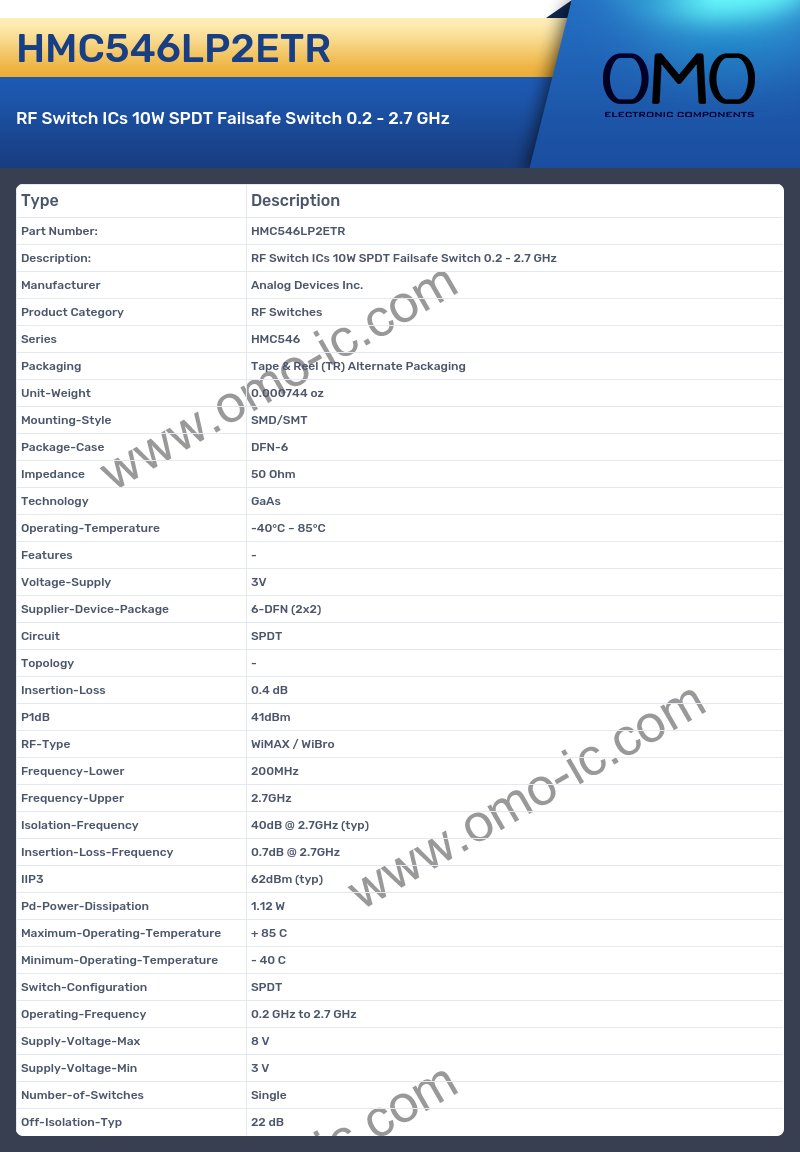

HMC546LP2ETR Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed HMC546
A: What is the Packaging of the product?
Q: The Packaging of the product is Tape & Reel (TR) Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.000744 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is DFN-6.
A: What is the Impedance of the product?
Q: The Impedance of the product is 50 Ohm.
A: Is the cutoff frequency of the product Technology?
Q: Yes, the product's Technology is indeed GaAs
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -40°C ~ 85°C.
A: What is the Voltage-Supply of the product?
Q: The Voltage-Supply of the product is 3V.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 6-DFN (2x2)
A: What is the Circuit of the product?
Q: The Circuit of the product is SPDT.
A: What is the Topology of the product?
Q: The Topology of the product is -.
A: What is the P1dB of the product?
Q: The P1dB of the product is 41dBm.
A: What is the RF-Type of the product?
Q: The RF-Type of the product is WiMAX / WiBro.
A: What is the Frequency-Upper of the product?
Q: The Frequency-Upper of the product is 2.7GHz.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 1.12 W.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 85 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: What is the Switch-Configuration of the product?
Q: The Switch-Configuration of the product is SPDT.
A: Is the cutoff frequency of the product Operating-Frequency?
Q: Yes, the product's Operating-Frequency is indeed 0.2 GHz to 2.7 GHz
A: What is the Supply-Voltage-Max of the product?
Q: The Supply-Voltage-Max of the product is 8 V.
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 3 V.
A: Is the cutoff frequency of the product Number-of-Switches?
Q: Yes, the product's Number-of-Switches is indeed Single
A: Is the cutoff frequency of the product Off-Isolation-Typ?
Q: Yes, the product's Off-Isolation-Typ is indeed 22 dB
