HMC547LC3

HMC547LC3 Overview

Product belongs to the HMC547 series. Cut Strip Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 16-VFCQFN Exposed Pad Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: - Supplier device package: 16-CSMT (3x3) Circuit type: SPDT Topology: Absorptive feedback P1dB is 23dBm RF-Type: General Purpose Frequency upper limit of 28GHz Power-off control: 0.363 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SPDT The operating frequency is DC to 28 GHz. Dual switch functionality Attribute: High-Control-Voltage, Value: - 5 V to - 7 V The 34 dB of this product is 35 dB.

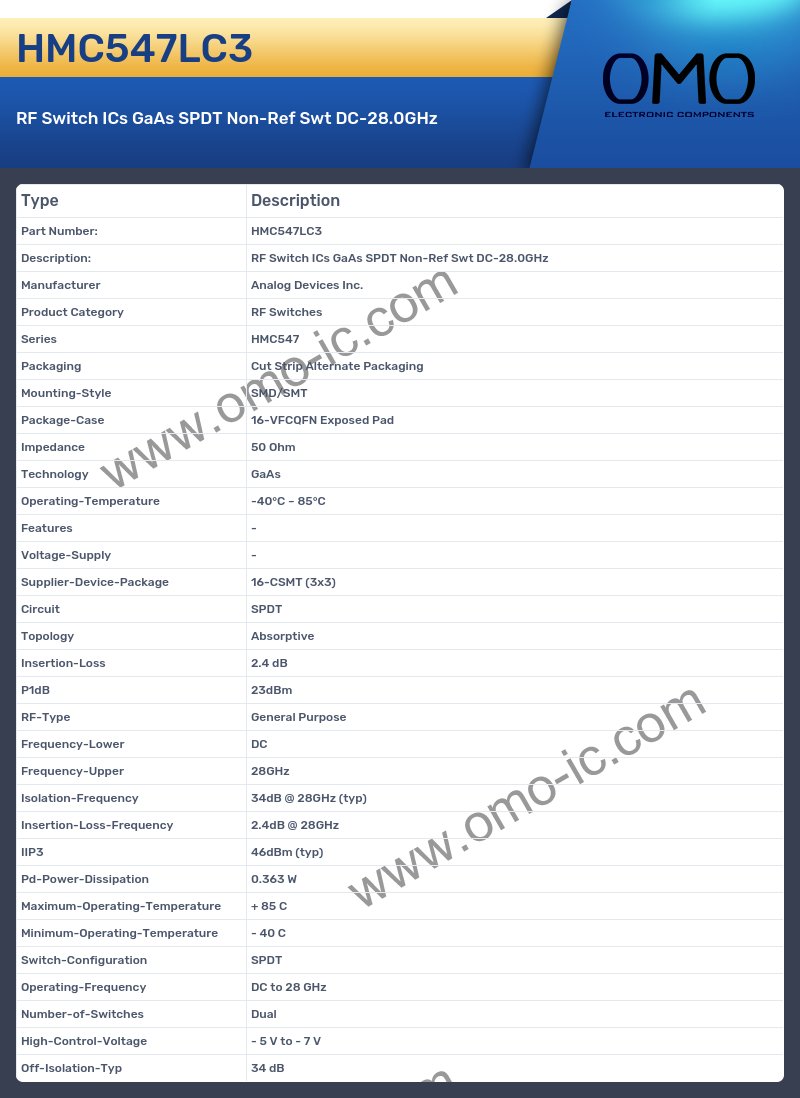

HMC547LC3 Image

HMC547LC3 Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC547
• Packaging Cut Strip Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 16-VFCQFN Exposed Pad
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply -
• Supplier-Device-Package 16-CSMT (3x3)
• Circuit SPDT
• Topology Absorptive
• Insertion-Loss 2.4 dB
• P1dB 23dBm
• RF-Type General Purpose
• Frequency-Lower DC
• Frequency-Upper 28GHz
• Isolation-Frequency 34dB @ 28GHz (typ)
• Insertion-Loss-Frequency 2.4dB @ 28GHz
• IIP3 46dBm (typ)
• Pd-Power-Dissipation 0.363 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switch-Configuration SPDT
• Operating-Frequency DC to 28 GHz
• Number-of-Switches Dual
• High-Control-Voltage - 5 V to - 7 V
• Off-Isolation-Typ 34 dB
