HMC813

HMC813 Overview

Product belongs to the HMC813G series. This product is categorized as Video Amplifiers Bulk is the packaging method for this product SMD/SMT Mounting-Style Die This product's 1GHz ~ 26GHz range is 0Hz to 2.2GHz. Number of channels: 1 Channel Voltage Supply Range: 3.3V Supplier device package: Die This product has a 150mA of 200μA. The device offers a - of 26dB. The amplifier is of Successive Detection Log type. Power-off control: No Shutdown Test-Frequency is 1GHz. P1dB is - RF-Type: General Purpose Power-off control: 0.51 W Maximum operating temperature of + 85 C Minimum operating temperature: - 55 C 150 mA is 92 nA. Maximum supply voltage of 3.6 V 26 GHz is the 3-dB bandwidth of the product.

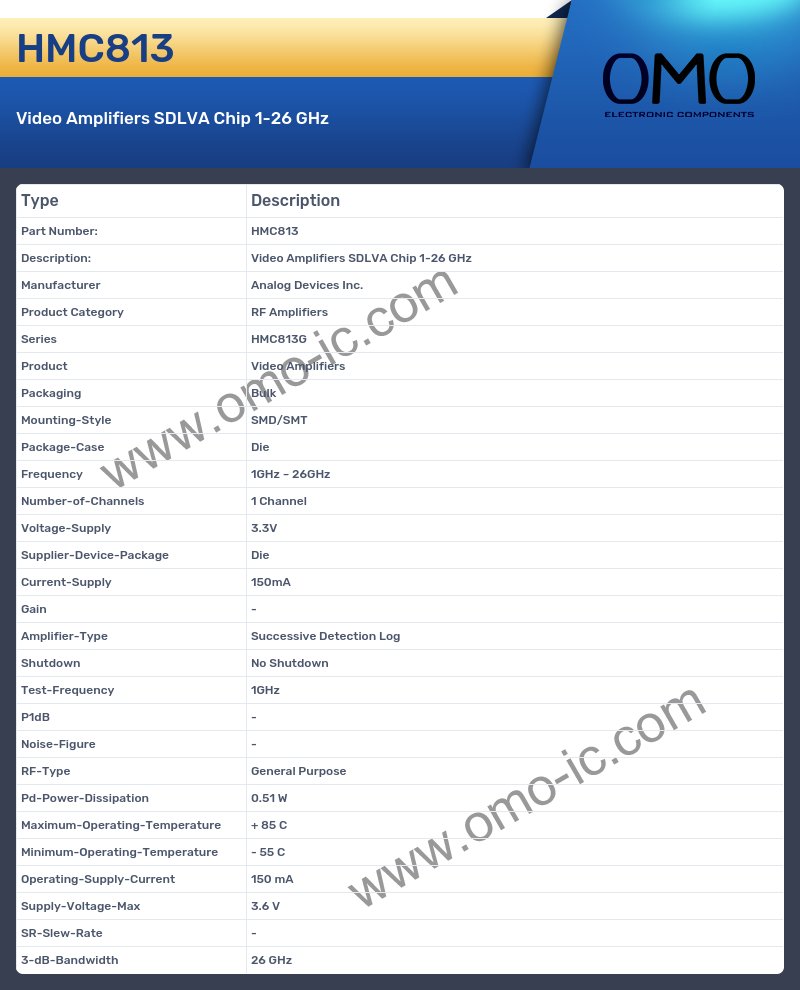

HMC813 Image

HMC813 Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Amplifiers
• Series HMC813G
• Product Video Amplifiers
• Packaging Bulk
• Mounting-Style SMD/SMT
• Package-Case Die
• Frequency 1GHz ~ 26GHz
• Number-of-Channels 1 Channel
• Voltage-Supply 3.3V
• Supplier-Device-Package Die
• Current-Supply 150mA
• Gain -
• Amplifier-Type Successive Detection Log
• Shutdown No Shutdown
• Test-Frequency 1GHz
• P1dB -
• Noise-Figure -
• RF-Type General Purpose
• Pd-Power-Dissipation 0.51 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 150 mA
• Supply-Voltage-Max 3.6 V
• SR-Slew-Rate -
• 3-dB-Bandwidth 26 GHz
