HMC966LP4E

HMC966LP4E Overview

Product belongs to the HMC966 series. This product is categorized as Down Converters Cut Strip Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SMT-24 This product's 17GHz ~ 20GHz range is 0Hz to 2.2GHz. GaAs is the technology used. Product function is -. Voltage Supply Range: 3.5V Supplier device package: 24-SMT (4x4) This product has a 160mA of 200μA. The device offers a 14dB of 26dB. RF-Type: General Purpose Mixer count: 1 Power-off control: 1.48 W Maximum operating temperature of + 85 C Minimum operating temperature: - 55 C This product operates at a 3.5 V supply voltage for reliable performance. 160 mA is 92 nA. NF-Noise-Figure is 2.5 dB - OIP3 third-order intercept IF-Frequency: DC to 3.5 GHz

HMC966LP4E Image

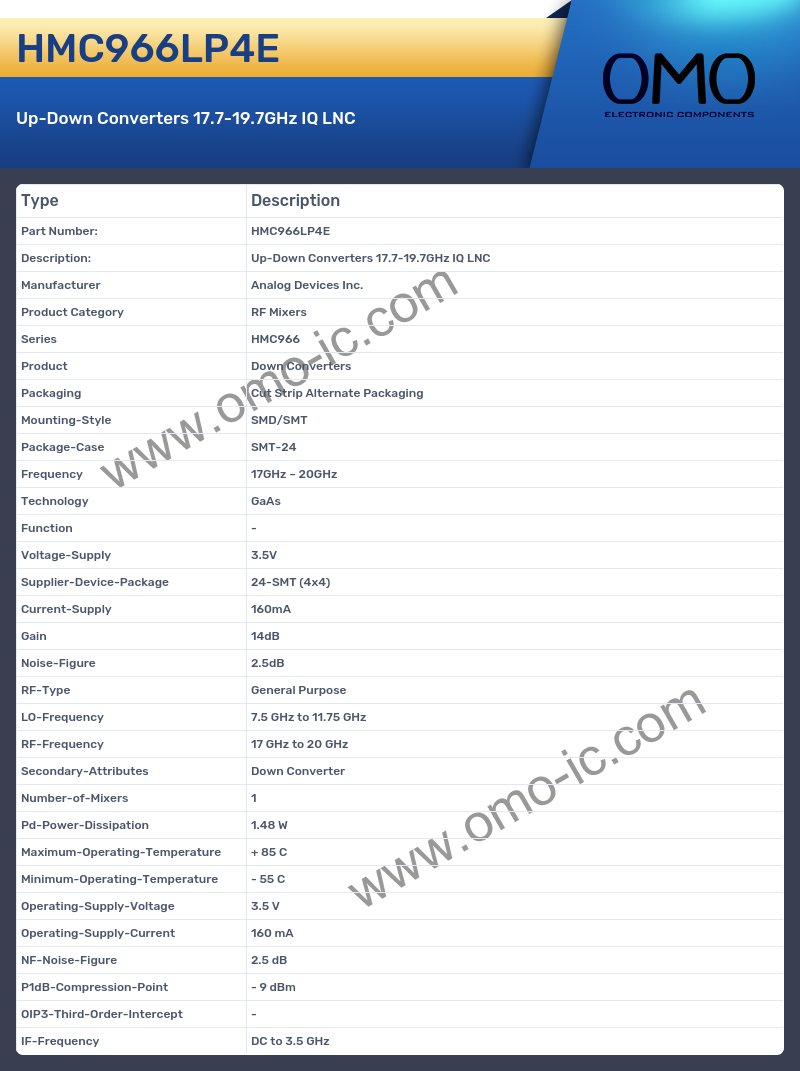

HMC966LP4E Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Mixers
• Series HMC966
• Product Down Converters
• Packaging Cut Strip Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SMT-24
• Frequency 17GHz ~ 20GHz
• Technology GaAs
• Function -
• Voltage-Supply 3.5V
• Supplier-Device-Package 24-SMT (4x4)
• Current-Supply 160mA
• Gain 14dB
• Noise-Figure 2.5dB
• RF-Type General Purpose
• LO-Frequency 7.5 GHz to 11.75 GHz
• RF-Frequency 17 GHz to 20 GHz
• Secondary-Attributes Down Converter
• Number-of-Mixers 1
• Pd-Power-Dissipation 1.48 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Voltage 3.5 V
• Operating-Supply-Current 160 mA
• NF-Noise-Figure 2.5 dB
• P1dB-Compression-Point - 9 dBm
• OIP3-Third-Order-Intercept -
• IF-Frequency DC to 3.5 GHz
