HV219FG-G

HV219FG-G Overview

Product belongs to the - series. Tray is the packaging method for this product Weight of 0.006409 oz SMD/SMT Mounting-Style LQFP-48 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Product function is Switch. Supplier device package: 48-LQFP (7x7) - is 8. Voltage supply source: Analog and digital Dual Supply Configuration 8 x SPST Circuit type: 8 x SPST 19 Ohm maximum on-state resistance Voltage supply range: ±40 V ~ 200 V/160V This product has a 7mA of 200μA. The - Power-off control: 1 W Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 4.5 V to 13.2 V supply voltage for reliable performance. Maximum supply current: 10 uA Maximum supply voltage of 13.2 V Minimum supply voltage is 4.5 V Maximum dual supply voltage: - 40 V 200 V Minimum dual supply voltage of - 160 V 40 V Dual Supply supply type Max on-resistance of 13 Ohms Maximum off time: 5 us 8 Switch switch functionality Maximum on-time: 5 us The maximum switch voltage for this product is 160 V The +/- 100 V.

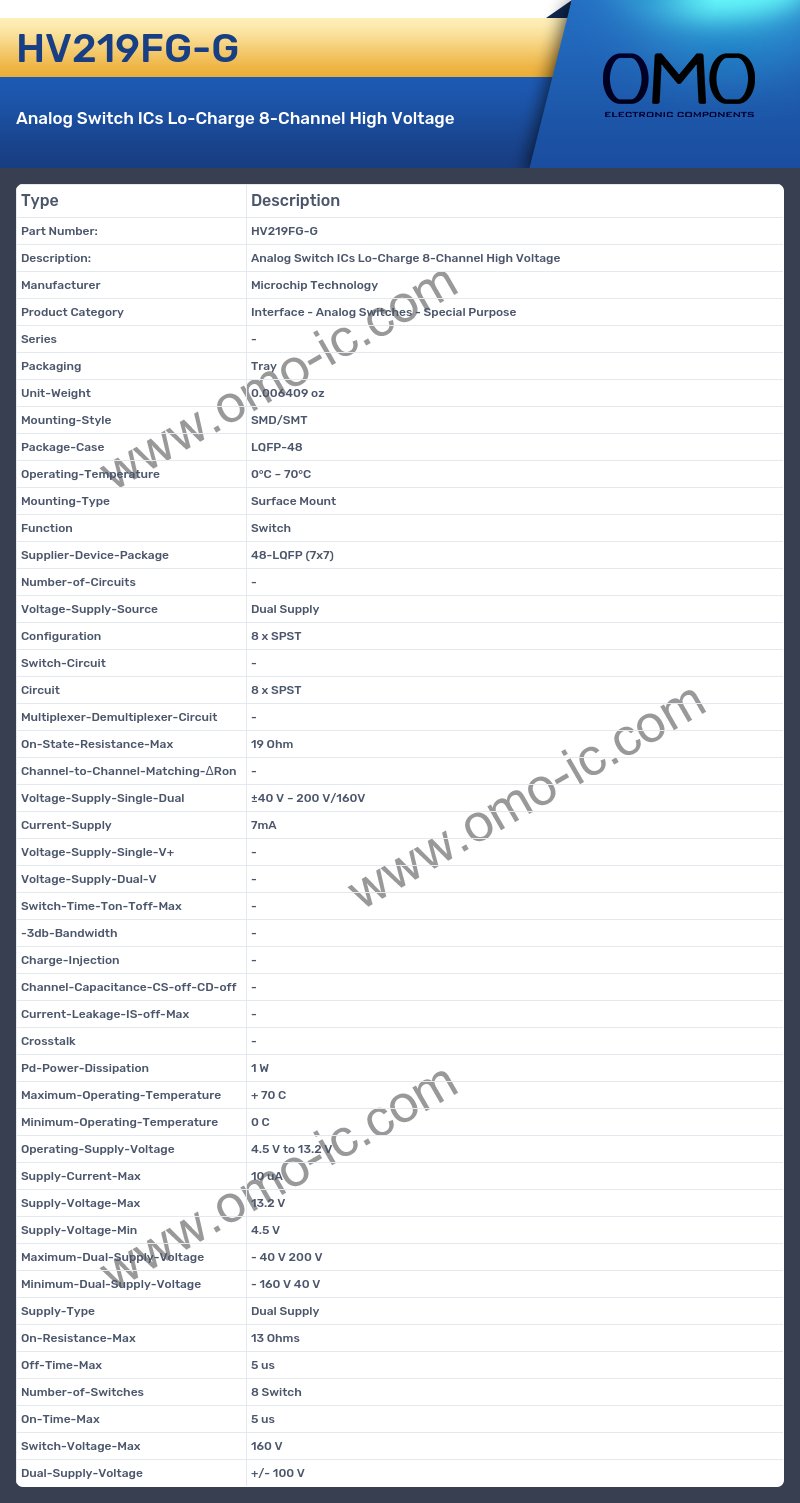

HV219FG-G Image

HV219FG-G Specifications

• Manufacturer Microchip Technology
• Product Category Interface - Analog Switches - Special Purpose
• Series -
• Packaging Tray
• Unit-Weight 0.006409 oz
• Mounting-Style SMD/SMT
• Package-Case LQFP-48
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Function Switch
• Supplier-Device-Package 48-LQFP (7x7)
• Number-of-Circuits -
• Voltage-Supply-Source Dual Supply
• Configuration 8 x SPST
• Switch-Circuit -
• Circuit 8 x SPST
• Multiplexer-Demultiplexer-Circuit -
• On-State-Resistance-Max 19 Ohm
• Channel-to-Channel-Matching-ΔRon -
• Voltage-Supply-Single-Dual ±40 V ~ 200 V/160V
• Current-Supply 7mA
• Voltage-Supply-Single-V+ -
• Voltage-Supply-Dual-V -
• Switch-Time-Ton-Toff-Max -
• -3db-Bandwidth -
• Charge-Injection -
• Channel-Capacitance-CS-off-CD-off -
• Current-Leakage-IS-off-Max -
• Crosstalk -
• Pd-Power-Dissipation 1 W
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 4.5 V to 13.2 V
• Supply-Current-Max 10 uA
• Supply-Voltage-Max 13.2 V
• Supply-Voltage-Min 4.5 V
• Maximum-Dual-Supply-Voltage - 40 V 200 V
• Minimum-Dual-Supply-Voltage - 160 V 40 V
• Supply-Type Dual Supply
• On-Resistance-Max 13 Ohms
• Off-Time-Max 5 us
• Number-of-Switches 8 Switch
• On-Time-Max 5 us
• Switch-Voltage-Max 160 V
• Dual-Supply-Voltage +/- 100 V
