ISO150AUG4 Overview

Product belongs to the - series. Type: General Purpose Tube Alternate Packaging is the packaging method for this product 28-SOIC (0.295", 7.50mm Width) (12 Leads) Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 85°C Number of channels: 2 Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 12-SOP This product's Bidirectional This product is designed with 1500Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/2/2 0:00:00 inputs from Side 1 to Side 2. Minimum 1.6kV/μs (Typ) of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 40ns, 40ns The minimum pulse width distortion is 6ns.

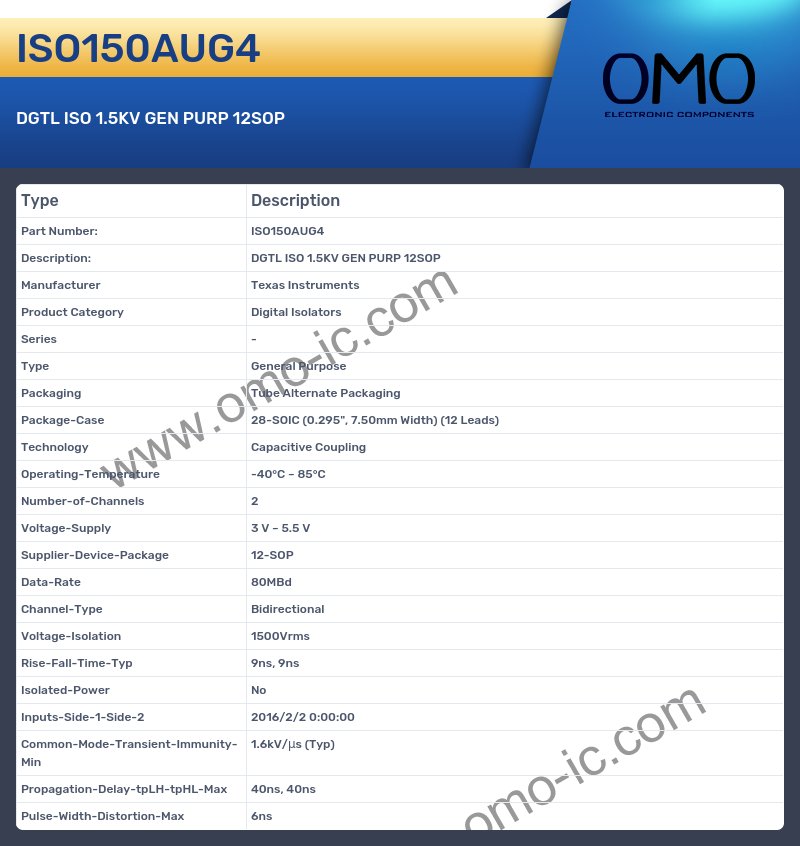

ISO150AUG4 Image

ISO150AUG4 Specifications

• Manufacturer Texas Instruments
• Product Category Digital Isolators
• Series -
• Type General Purpose
• Packaging Tube Alternate Packaging
• Package-Case 28-SOIC (0.295", 7.50mm Width) (12 Leads)
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 85°C
• Number-of-Channels 2
• Voltage-Supply 3 V ~ 5.5 V
• Supplier-Device-Package 12-SOP
• Data-Rate 80MBd
• Channel-Type Bidirectional
• Voltage-Isolation 1500Vrms
• Rise-Fall-Time-Typ 9ns, 9ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/2/2 0:00:00
• Common-Mode-Transient-Immunity-Min 1.6kV/μs (Typ)
• Propagation-Delay-tpLH-tpHL-Max 40ns, 40ns
• Pulse-Width-Distortion-Max 6ns
