| Mfr. #: | ISO7140FCCDBQ |
|---|---|
| Hersteller: | Texas Instruments |
| Beschreibung: | Digital Isolators SM-Footprint Lo-Pwr Quad CH Digital Iso |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | ISO7140FCCDBQ Datenblatt |
Product belongs to the ISO7140FCC series. This product is categorized as Digital Isolators Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.004586 oz SMD/SMT Mounting-Style SSOP-16 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 4 Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 16-SSOP This product's Unidirectional This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. Power-off control: No Shutdown This product is designed with No isolated power for maximum safety and reliability. The product has 2000/4/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 35ns, 35ns The minimum pulse width distortion is 3ns. Power-off control: 150 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Unidirectional Capacitive Coupling is the isolation type specified for this product. 15.6 mA is 92 nA. Isolation voltage of 2.5 kV Maximum supply voltage of 5 V Minimum supply voltage is 2.7 V 23 ns is 23 microseconds. This product features 4 Channel Forward-Channels for simple connectivity. The product has 0 Channel for reverse communication.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

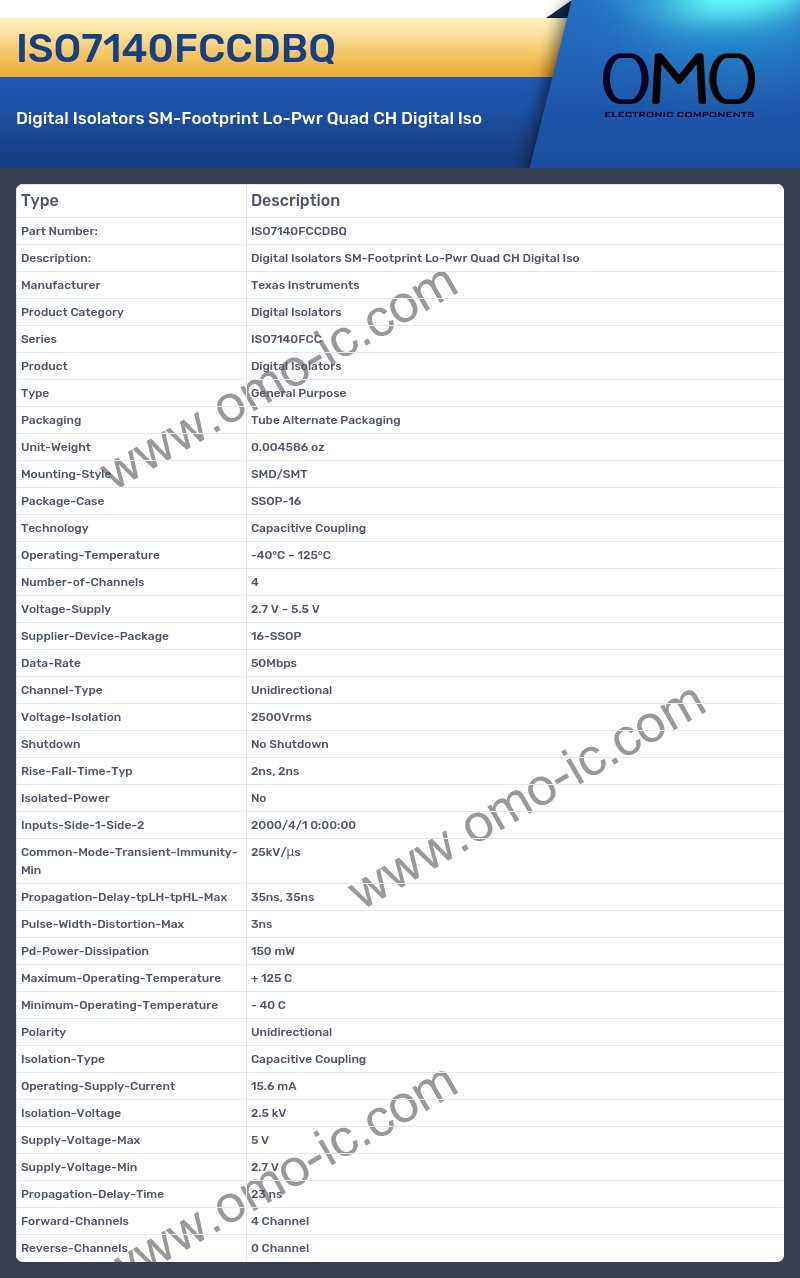

ISO7140FCCDBQ Specifications
A: At what frequency does the Series?
Q: The product Series is ISO7140FCC.
A: What is the Product of the product?
Q: The Product of the product is Digital Isolators.
A: Is the cutoff frequency of the product Type?
Q: Yes, the product's Type is indeed General Purpose
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube Alternate Packaging
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.004586 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SSOP-16
A: Is the cutoff frequency of the product Technology?
Q: Yes, the product's Technology is indeed Capacitive Coupling
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 125°C.
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 4.
A: Is the cutoff frequency of the product Voltage-Supply?
Q: Yes, the product's Voltage-Supply is indeed 2.7 V ~ 5.5 V
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 16-SSOP.
A: At what frequency does the Channel-Type?
Q: The product Channel-Type is Unidirectional.
A: Is the cutoff frequency of the product Voltage-Isolation?
Q: Yes, the product's Voltage-Isolation is indeed 2500Vrms
A: Is the cutoff frequency of the product Shutdown?
Q: Yes, the product's Shutdown is indeed No Shutdown
A: Is the cutoff frequency of the product Isolated-Power?
Q: Yes, the product's Isolated-Power is indeed No
A: What is the Inputs-Side-1-Side-2 of the product?
Q: The Inputs-Side-1-Side-2 of the product is 2000/4/1 0:00:00.
A: At what frequency does the Common-Mode-Transient-Immunity-Min?
Q: The product Common-Mode-Transient-Immunity-Min is 25kV/μs.
A: Is the cutoff frequency of the product Propagation-Delay-tpLH-tpHL-Max?
Q: Yes, the product's Propagation-Delay-tpLH-tpHL-Max is indeed 35ns, 35ns
A: What is the Pulse-Width-Distortion-Max of the product?
Q: The Pulse-Width-Distortion-Max of the product is 3ns.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 150 mW.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 125 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: At what frequency does the Polarity?
Q: The product Polarity is Unidirectional.
A: What is the Isolation-Type of the product?
Q: The Isolation-Type of the product is Capacitive Coupling.
A: At what frequency does the Operating-Supply-Current?
Q: The product Operating-Supply-Current is 15.6 mA.
A: Is the cutoff frequency of the product Isolation-Voltage?
Q: Yes, the product's Isolation-Voltage is indeed 2.5 kV
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 5 V
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 2.7 V.
A: What is the Propagation-Delay-Time of the product?
Q: The Propagation-Delay-Time of the product is 23 ns.
A: At what frequency does the Forward-Channels?
Q: The product Forward-Channels is 4 Channel.
A: What is the Reverse-Channels of the product?
Q: The Reverse-Channels of the product is 0 Channel.
