| Mfr. #: | ISO7221BDR |
|---|---|
| Hersteller: | Texas Instruments |
| Beschreibung: | Digital Isolators Dual Channel High Spd Digital Isolato |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | ISO7221BDR Datenblatt |
Product belongs to the ISO7221B series. This product is categorized as Digital Isolators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 2 Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 8-SOIC This product's Unidirectional This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. Power-off control: No Shutdown This product is designed with No isolated power for maximum safety and reliability. The product has 2016/1/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 70ns, 70ns The minimum pulse width distortion is 3ns. Power-off control: 390 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Bidirectional Capacitive Coupling is the isolation type specified for this product. 8.5 mA is 92 nA. Isolation voltage of 4 kV Maximum supply voltage of 5.5 V Minimum supply voltage is 3 V 405 ns is 23 microseconds. This product features 1 Channel Forward-Channels for simple connectivity. Rise time max: 2 ns (Typ) The product has 1 Channel for reverse communication.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

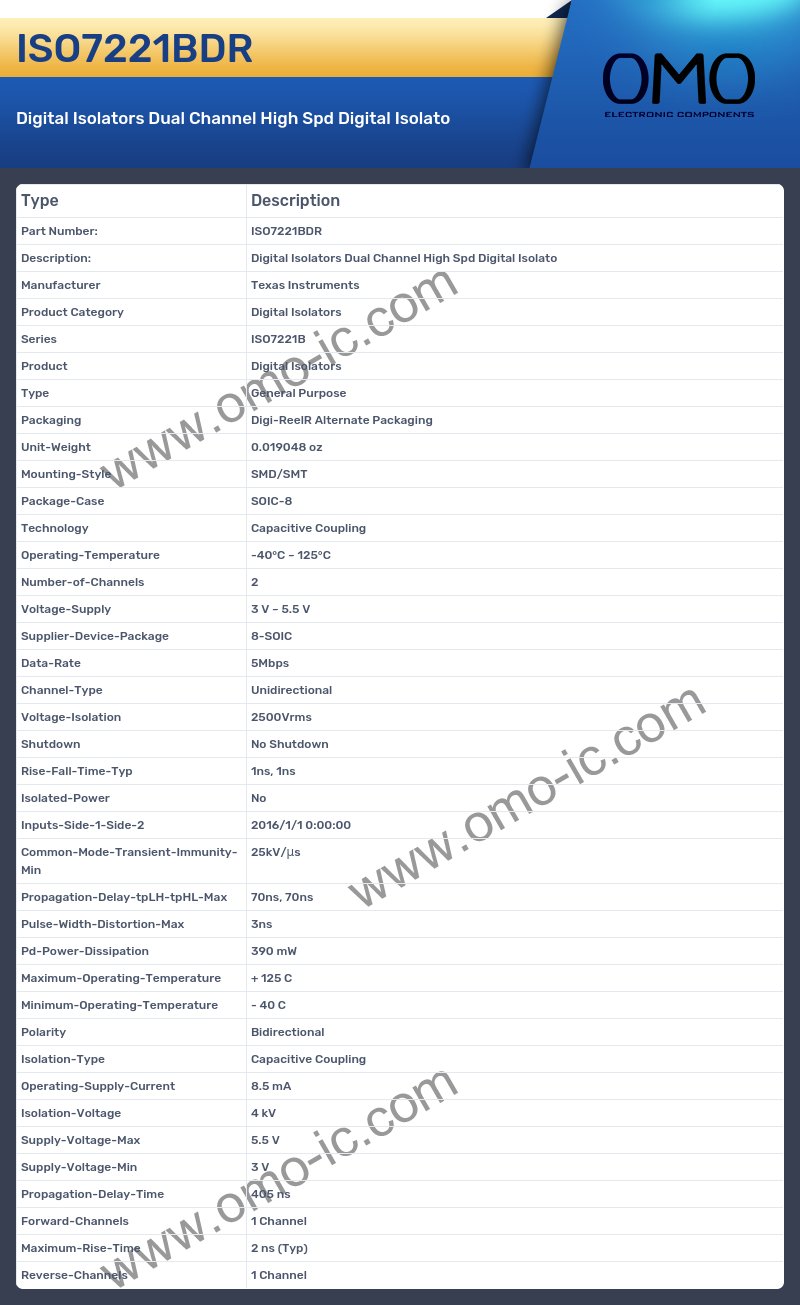

ISO7221BDR Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed ISO7221B
A: Is the cutoff frequency of the product Product?
Q: Yes, the product's Product is indeed Digital Isolators
A: Is the cutoff frequency of the product Type?
Q: Yes, the product's Type is indeed General Purpose
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.019048 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SOIC-8.
A: Is the cutoff frequency of the product Technology?
Q: Yes, the product's Technology is indeed Capacitive Coupling
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -40°C ~ 125°C.
A: What is the Number-of-Channels of the product?
Q: The Number-of-Channels of the product is 2.
A: Is the cutoff frequency of the product Voltage-Supply?
Q: Yes, the product's Voltage-Supply is indeed 3 V ~ 5.5 V
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 8-SOIC.
A: Is the cutoff frequency of the product Channel-Type?
Q: Yes, the product's Channel-Type is indeed Unidirectional
A: What is the Voltage-Isolation of the product?
Q: The Voltage-Isolation of the product is 2500Vrms.
A: Is the cutoff frequency of the product Shutdown?
Q: Yes, the product's Shutdown is indeed No Shutdown
A: At what frequency does the Isolated-Power?
Q: The product Isolated-Power is No.
A: At what frequency does the Inputs-Side-1-Side-2?
Q: The product Inputs-Side-1-Side-2 is 2016/1/1 0:00:00.
A: Is the cutoff frequency of the product Common-Mode-Transient-Immunity-Min?
Q: Yes, the product's Common-Mode-Transient-Immunity-Min is indeed 25kV/μs
A: Is the cutoff frequency of the product Propagation-Delay-tpLH-tpHL-Max?
Q: Yes, the product's Propagation-Delay-tpLH-tpHL-Max is indeed 70ns, 70ns
A: At what frequency does the Pulse-Width-Distortion-Max?
Q: The product Pulse-Width-Distortion-Max is 3ns.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 390 mW.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 125 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: Is the cutoff frequency of the product Polarity?
Q: Yes, the product's Polarity is indeed Bidirectional
A: Is the cutoff frequency of the product Isolation-Type?
Q: Yes, the product's Isolation-Type is indeed Capacitive Coupling
A: At what frequency does the Operating-Supply-Current?
Q: The product Operating-Supply-Current is 8.5 mA.
A: Is the cutoff frequency of the product Isolation-Voltage?
Q: Yes, the product's Isolation-Voltage is indeed 4 kV
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 5.5 V
A: Is the cutoff frequency of the product Supply-Voltage-Min?
Q: Yes, the product's Supply-Voltage-Min is indeed 3 V
A: What is the Propagation-Delay-Time of the product?
Q: The Propagation-Delay-Time of the product is 405 ns.
A: What is the Forward-Channels of the product?
Q: The Forward-Channels of the product is 1 Channel.
A: What is the Maximum-Rise-Time of the product?
Q: The Maximum-Rise-Time of the product is 2 ns (Typ).
A: Is the cutoff frequency of the product Reverse-Channels?
Q: Yes, the product's Reverse-Channels is indeed 1 Channel
