ISO7420FED Overview

Product belongs to the ISO7420FE series. This product is categorized as Digital Isolators Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 2 Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 8-SOIC This product's Unidirectional This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. Power-off control: No Shutdown This product is designed with No isolated power for maximum safety and reliability. The product has 2000/2/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 11ns, 11ns The minimum pulse width distortion is 3ns. Power-off control: 138 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Unidirectional Capacitive Coupling is the isolation type specified for this product. 6.2 mA is 92 nA. Isolation voltage of 2.5 kVrms Maximum supply voltage of 5 V Minimum supply voltage is 3.3 V 7 ns is 23 microseconds. This product features 2 Channel Forward-Channels for simple connectivity. The product has 0 Channel for reverse communication.

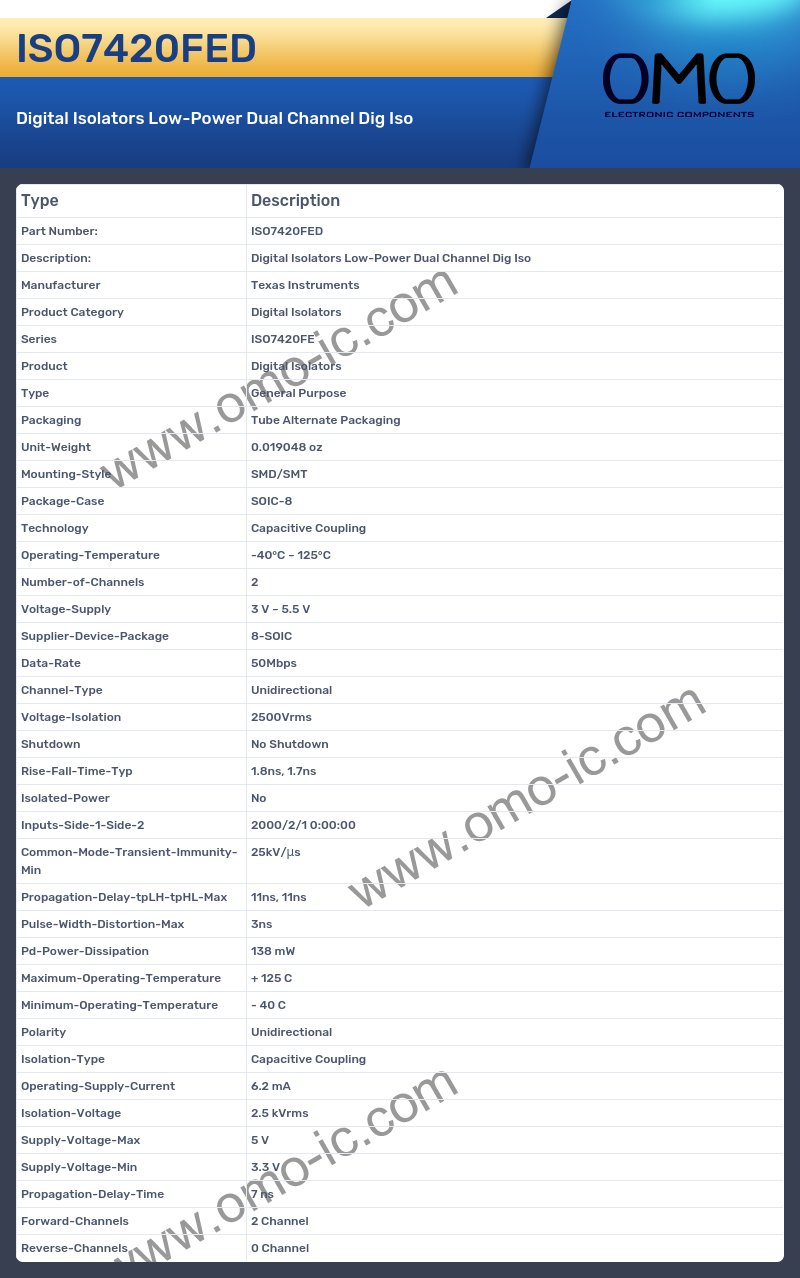

ISO7420FED Image

ISO7420FED Specifications

• Manufacturer Texas Instruments
• Product Category Digital Isolators
• Series ISO7420FE
• Product Digital Isolators
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 2
• Voltage-Supply 3 V ~ 5.5 V
• Supplier-Device-Package 8-SOIC
• Data-Rate 50Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 2500Vrms
• Shutdown No Shutdown
• Rise-Fall-Time-Typ 1.8ns, 1.7ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2000/2/1 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max 11ns, 11ns
• Pulse-Width-Distortion-Max 3ns
• Pd-Power-Dissipation 138 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Polarity Unidirectional
• Isolation-Type Capacitive Coupling
• Operating-Supply-Current 6.2 mA
• Isolation-Voltage 2.5 kVrms
• Supply-Voltage-Max 5 V
• Supply-Voltage-Min 3.3 V
• Propagation-Delay-Time 7 ns
• Forward-Channels 2 Channel
• Reverse-Channels 0 Channel
