L4940V5 Overview

Product belongs to the L4940 series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Operational temperature range: -40°C ~ 150°C Through Hole mounting type Output-Type: Fixed Supplier device package: TO-220AB Up to 17V voltage input Number-of-Outputs: 1 Output Output voltage: 5V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: 5 V Maximum Input Voltage: 17 V Output current: 1.5 A Load regulation is 25 mV. Input bias current of 5 mA This product has a 8 mA of 7 mA, making it ideal for low-power applications. The 0.2 V at 500 mA. The maximum 900 mV is 360 mV. This product's 10 mV is 0.01 %/V.

L4940V5 Image

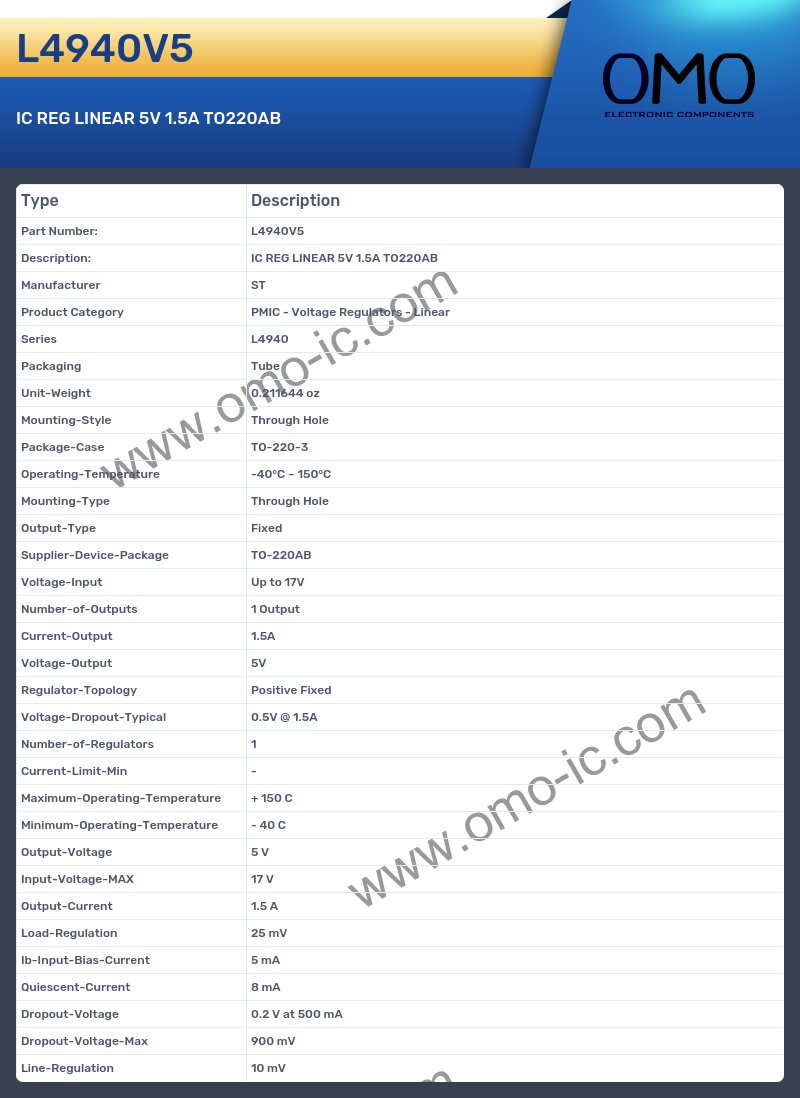

L4940V5 Specifications

• Manufacturer ST
• Product Category PMIC - Voltage Regulators - Linear
• Series L4940
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Operating-Temperature -40°C ~ 150°C
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package TO-220AB
• Voltage-Input Up to 17V
• Number-of-Outputs 1 Output
• Current-Output 1.5A
• Voltage-Output 5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.5V @ 1.5A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5 V
• Input-Voltage-MAX 17 V
• Output-Current 1.5 A
• Load-Regulation 25 mV
• Ib-Input-Bias-Current 5 mA
• Quiescent-Current 8 mA
• Dropout-Voltage 0.2 V at 500 mA
• Dropout-Voltage-Max 900 mV
• Line-Regulation 10 mV
