| Mfr. #: | L5991D013TR |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | IC REG CTRLR PWM CM 16-SOIC |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | L5991D013TR Datenblatt |
Product belongs to the L5991 series. Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.007079 oz SMD/SMT Mounting-Style SO-16 Operational temperature range: -40°C ~ 150°C (TJ) * mounting type Supplier device package: 16-SO Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Boost, Flyback feedback Supply Voltage: 10 V ~ 20 V This product features 'Frequency-Switching' at Up to 1MHz for optimal performance. The Control-Features include Frequency Control, Soft Start, Sync function. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C This product operates at a 12 V to 20 V supply voltage for reliable performance. Output voltage: 5.075 V Output current: 1500 mA Switching frequency is 1000 kHz This product has a 35 ns of 16 ns. This product has a 70 ns of 16 ns. Maximum duty cycle of 93 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

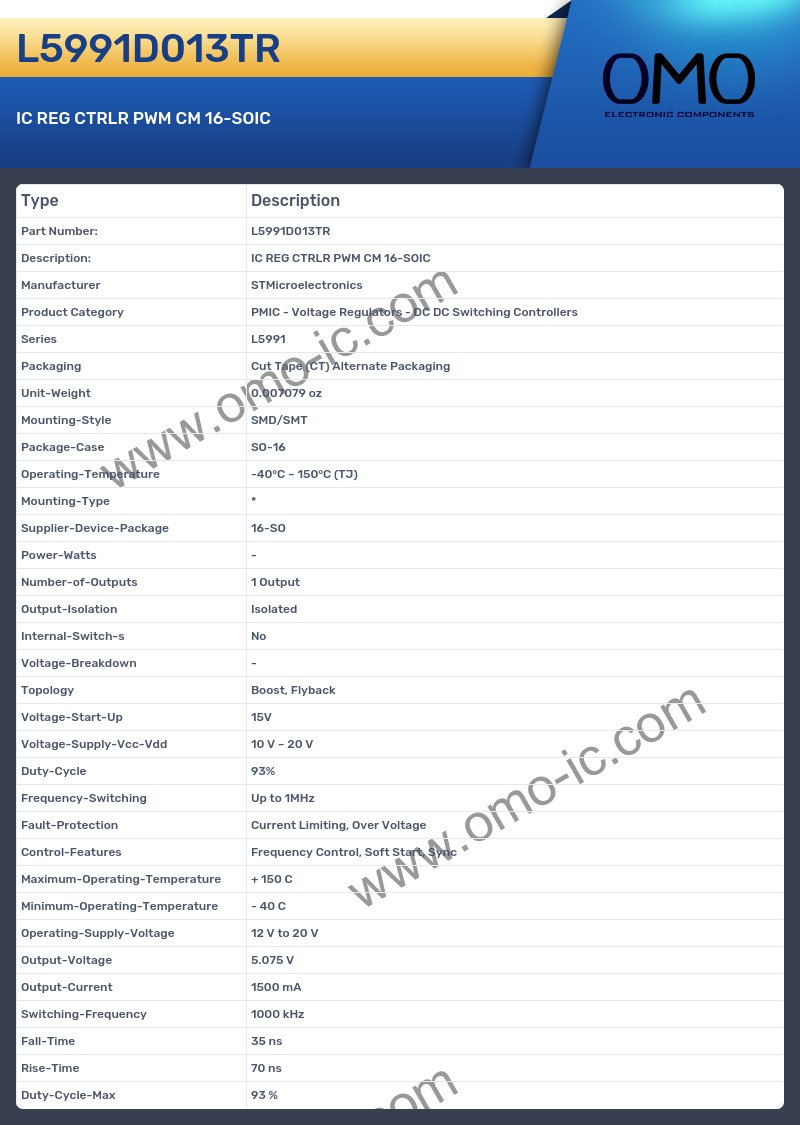

L5991D013TR Specifications
A: What is the Series of the product?
Q: The Series of the product is L5991.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Cut Tape (CT) Alternate Packaging
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.007079 oz
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: At what frequency does the Package-Case?
Q: The product Package-Case is SO-16.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -40°C ~ 150°C (TJ).
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is *.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 16-SO
A: What is the Number-of-Outputs of the product?
Q: The Number-of-Outputs of the product is 1 Output.
A: At what frequency does the Output-Isolation?
Q: The product Output-Isolation is Isolated.
A: Is the cutoff frequency of the product Internal-Switch-s?
Q: Yes, the product's Internal-Switch-s is indeed No
A: What is the Topology of the product?
Q: The Topology of the product is Boost, Flyback.
A: Is the cutoff frequency of the product Voltage-Supply-Vcc-Vdd?
Q: Yes, the product's Voltage-Supply-Vcc-Vdd is indeed 10 V ~ 20 V
A: What is the Frequency-Switching of the product?
Q: The Frequency-Switching of the product is Up to 1MHz.
A: What is the Control-Features of the product?
Q: The Control-Features of the product is Frequency Control, Soft Start, Sync.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: Is the cutoff frequency of the product Operating-Supply-Voltage?
Q: Yes, the product's Operating-Supply-Voltage is indeed 12 V to 20 V
A: Is the cutoff frequency of the product Output-Voltage?
Q: Yes, the product's Output-Voltage is indeed 5.075 V
A: What is the Output-Current of the product?
Q: The Output-Current of the product is 1500 mA.
A: Is the cutoff frequency of the product Switching-Frequency?
Q: Yes, the product's Switching-Frequency is indeed 1000 kHz
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 35 ns.
A: At what frequency does the Rise-Time?
Q: The product Rise-Time is 70 ns.
A: Is the cutoff frequency of the product Duty-Cycle-Max?
Q: Yes, the product's Duty-Cycle-Max is indeed 93 %
