L6207PD

L6207PD Overview

Product belongs to the L6207 series. Type: Driver Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications PowerSO-36 DMOS is the technology used. Operational temperature range: -25°C ~ 125°C (TJ) Surface Mount mounting type Versatile DC Motors, Stepper Motors, Voltage Regulators applications for maximum usability Interface: Logic Voltage Supply Range: 8 V ~ 52 V Supplier device package: PowerSO-36 Current-Output-Channel is 2.8A The Half Bridge (4). This product supports a Inductive of Inductive, Capacitive, Resistive for versatile applications. The 300 mOhm. The product's 5.6A is 4A. Voltage-Load range is 8 V ~ 52 V. This product operates at a 8 V to 52 V supply voltage for reliable performance. 10 mA is 92 nA.

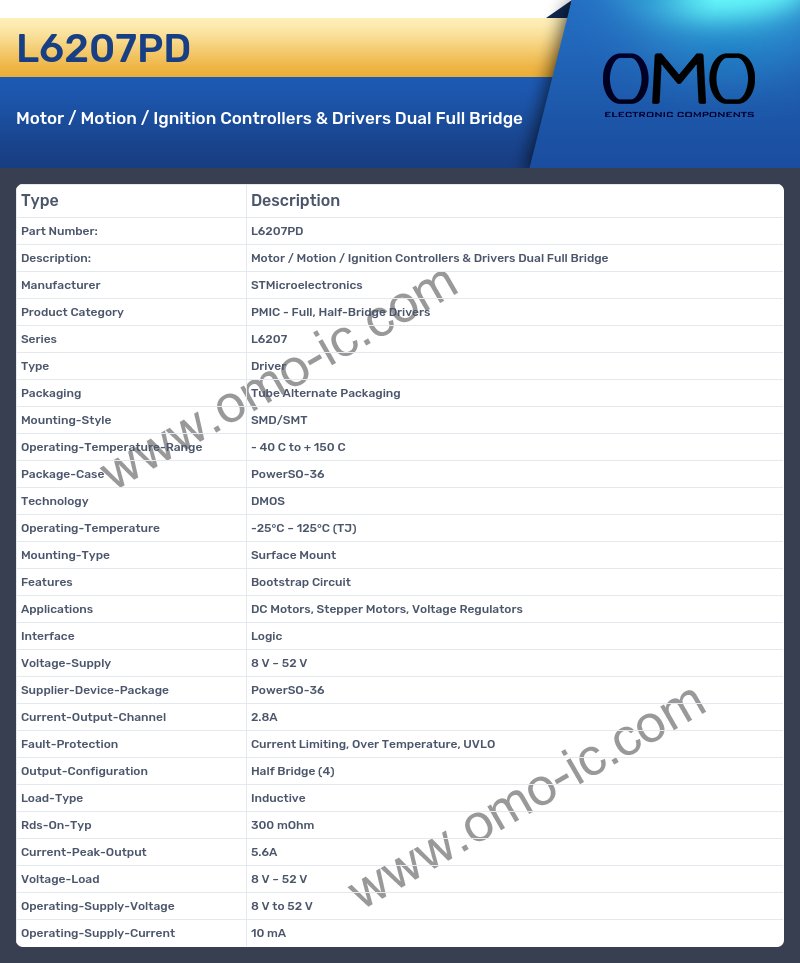

L6207PD Image

L6207PD Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Full, Half-Bridge Drivers
• Series L6207
• Type Driver
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case PowerSO-36
• Technology DMOS
• Operating-Temperature -25°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Features Bootstrap Circuit
• Applications DC Motors, Stepper Motors, Voltage Regulators
• Interface Logic
• Voltage-Supply 8 V ~ 52 V
• Supplier-Device-Package PowerSO-36
• Current-Output-Channel 2.8A
• Fault-Protection Current Limiting, Over Temperature, UVLO
• Output-Configuration Half Bridge (4)
• Load-Type Inductive
• Rds-On-Typ 300 mOhm
• Current-Peak-Output 5.6A
• Voltage-Load 8 V ~ 52 V
• Operating-Supply-Voltage 8 V to 52 V
• Operating-Supply-Current 10 mA
