L6229PD

L6229PD Overview

Product belongs to the L6229 series. This product is categorized as Stepper Motor Controllers / Drivers Type: 3 Phase Brushless DC Motor Driver Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 25 C to + 150 C operating temperature range for diverse applications PowerSO-36 BiCDMOS is the technology used. Operational temperature range: -25°C ~ 125°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: Parallel Voltage Supply Range: 12 V ~ 52 V Supplier device package: PowerSO-36 The Half Bridge (3). Voltage-Load range is 12 V ~ 52 V. Brushless DC (BLDC) motor type is used for high-performance and efficient operation. This product operates at a 8 V to 52 V supply voltage for reliable performance. Output current: 1.4 A

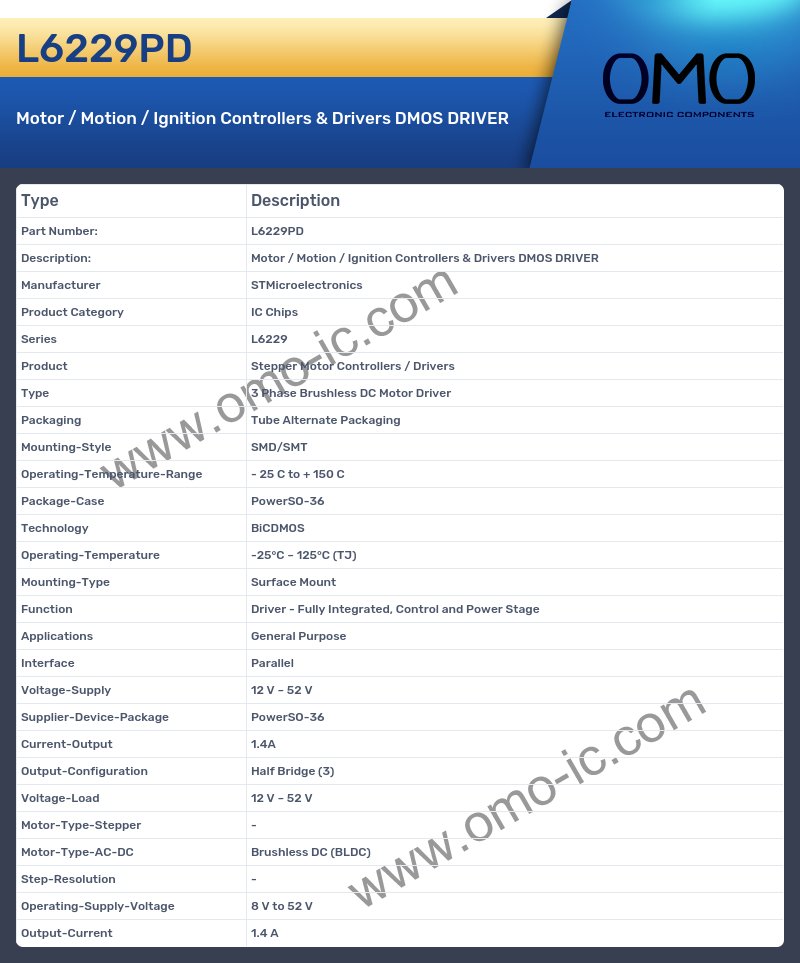

L6229PD Image

L6229PD Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series L6229
• Product Stepper Motor Controllers / Drivers
• Type 3 Phase Brushless DC Motor Driver
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 25 C to + 150 C
• Package-Case PowerSO-36
• Technology BiCDMOS
• Operating-Temperature -25°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface Parallel
• Voltage-Supply 12 V ~ 52 V
• Supplier-Device-Package PowerSO-36
• Current-Output 1.4A
• Output-Configuration Half Bridge (3)
• Voltage-Load 12 V ~ 52 V
• Motor-Type-Stepper -
• Motor-Type-AC-DC Brushless DC (BLDC)
• Step-Resolution -
• Operating-Supply-Voltage 8 V to 52 V
• Output-Current 1.4 A
