L6370QTR

L6370QTR Overview

Product belongs to the L6370Q series. This product is categorized as Power Switches Type: High Side Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.005309 oz SMD/SMT Mounting-Style QFN-48 The Differential for this product is CMOS/TTL. Operational temperature range: -25°C ~ 125°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 48-QFN (7x7) The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The 100 mOhm. Voltage-Load range is 9.5 V ~ 35 V. Our product delivers a 2.5A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: Internally Limited Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C This product operates at a 9.5 V to 35 V supply voltage for reliable performance. Output current: 3.2 A Maximum supply voltage of 35 V Minimum supply voltage is 9.5 V Max on-resistance of 100 mOhms This product's 3.2 A feature is adjustable.

L6370QTR Image

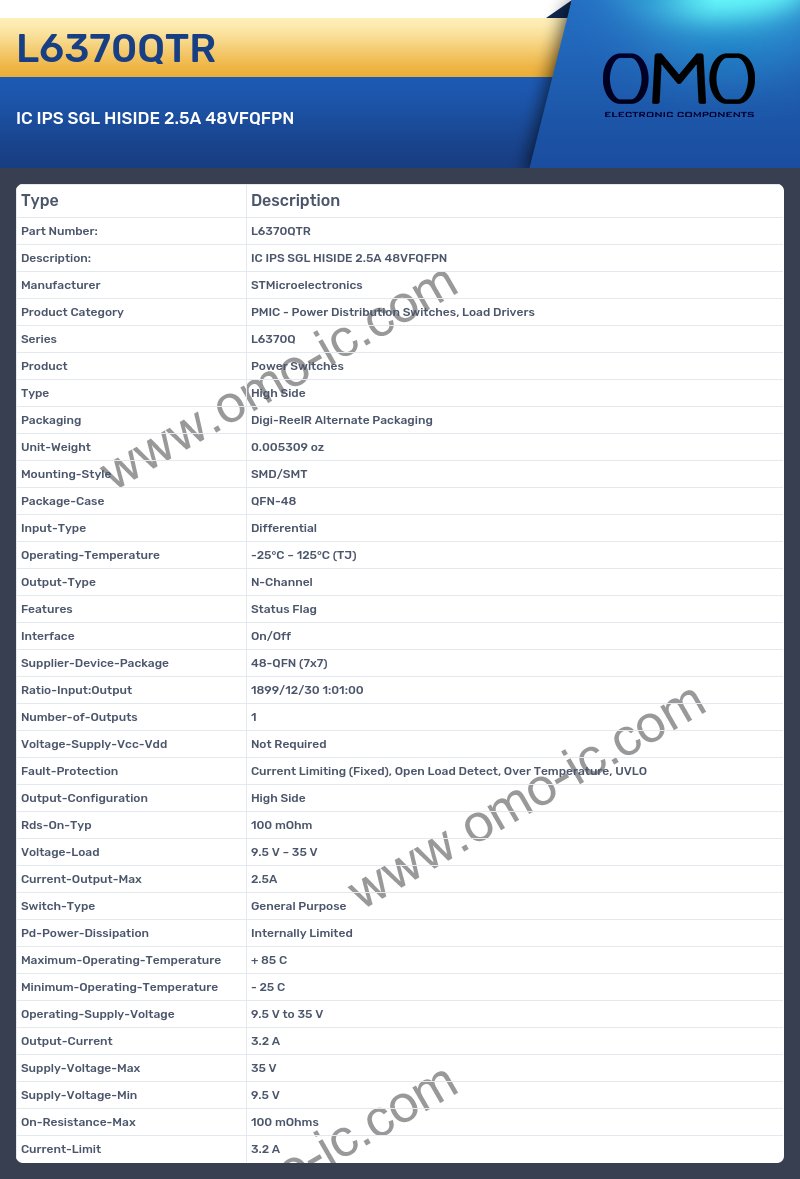

L6370QTR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series L6370Q
• Product Power Switches
• Type High Side
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.005309 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-48
• Input-Type Differential
• Operating-Temperature -25°C ~ 125°C (TJ)
• Output-Type N-Channel
• Features Status Flag
• Interface On/Off
• Supplier-Device-Package 48-QFN (7x7)
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO
• Output-Configuration High Side
• Rds-On-Typ 100 mOhm
• Voltage-Load 9.5 V ~ 35 V
• Current-Output-Max 2.5A
• Switch-Type General Purpose
• Pd-Power-Dissipation Internally Limited
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Operating-Supply-Voltage 9.5 V to 35 V
• Output-Current 3.2 A
• Supply-Voltage-Max 35 V
• Supply-Voltage-Min 9.5 V
• On-Resistance-Max 100 mOhms
• Current-Limit 3.2 A
