L6566BHTR Overview

Product belongs to the L6566 series. This product is categorized as Current Mode PWM Controllers Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SO-Narrow-16 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: Totem Pole Supplier device package: 16-SO Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Flyback feedback Supply Voltage: 8 V ~ 23 V This product features 'Frequency-Switching' at 10kHz ~ 300kHz for optimal performance. The Control-Features include Soft Start function. Power-off control: Yes The product's Isolated is non-isolated. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C This product operates at a 8 V to 23 V supply voltage for reliable performance. Output voltage: 5 V This product is an Multimode controller for SMPS. 4 mA is 92 nA. Input Voltage Range: 8 V to 23 V Output current: 800 mA Switching frequency is 10 kHz to 300 kHz This product has a 40 ns of 16 ns. This product has a 50 ns of 16 ns. Maximum duty cycle of 75 %

L6566BHTR Image

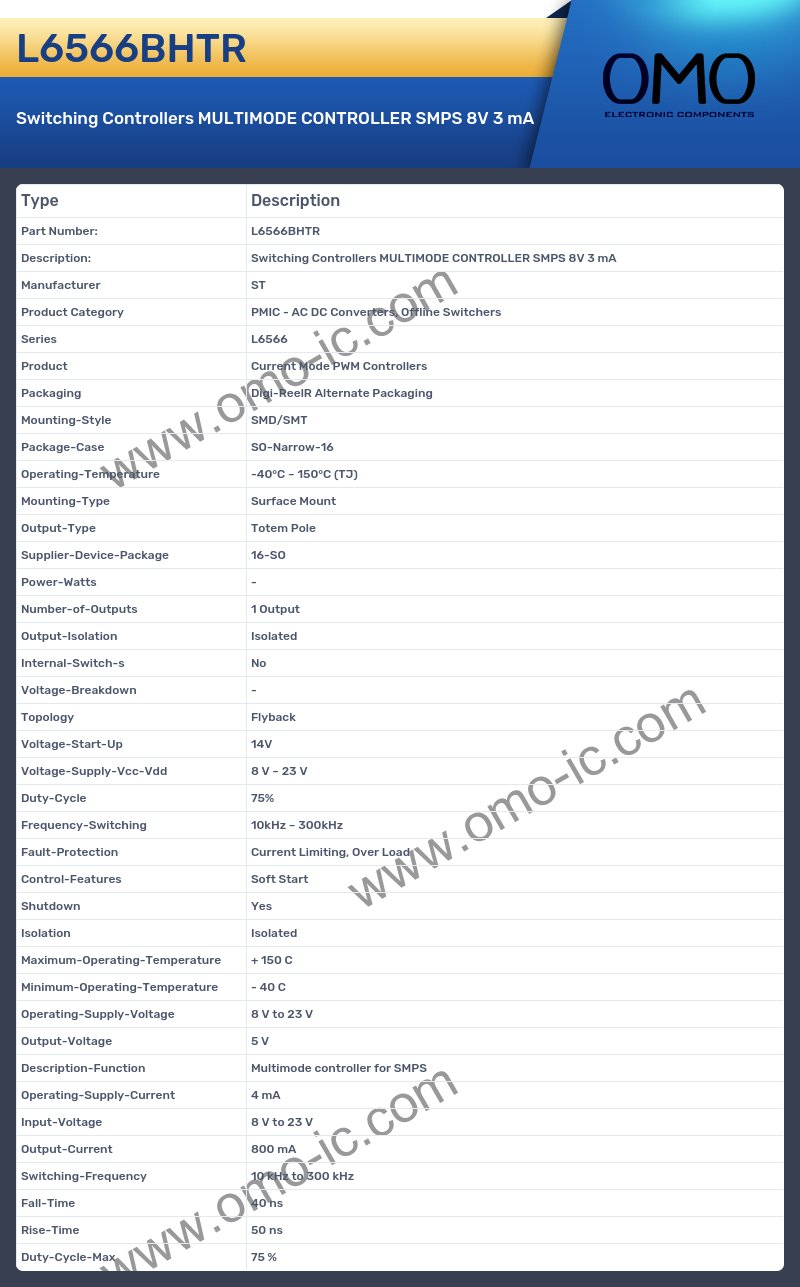

L6566BHTR Specifications

• Manufacturer ST
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series L6566
• Product Current Mode PWM Controllers
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SO-Narrow-16
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Totem Pole
• Supplier-Device-Package 16-SO
• Power-Watts -
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Flyback
• Voltage-Start-Up 14V
• Voltage-Supply-Vcc-Vdd 8 V ~ 23 V
• Duty-Cycle 75%
• Frequency-Switching 10kHz ~ 300kHz
• Fault-Protection Current Limiting, Over Load
• Control-Features Soft Start
• Shutdown Yes
• Isolation Isolated
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 8 V to 23 V
• Output-Voltage 5 V
• Description-Function Multimode controller for SMPS
• Operating-Supply-Current 4 mA
• Input-Voltage 8 V to 23 V
• Output-Current 800 mA
• Switching-Frequency 10 kHz to 300 kHz
• Fall-Time 40 ns
• Rise-Time 50 ns
• Duty-Cycle-Max 75 %
