L7805ACP

L7805ACP Overview

Product belongs to the L7805 series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 FP Operational temperature range: 0°C ~ 125°C Through Hole mounting type Output-Type: Fixed Supplier device package: TO-220FP Up to 35V voltage input Number-of-Outputs: 1 Output voltage: 5V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: 0 C Polarity: Positive Output voltage: 5 V Maximum Input Voltage: 35 V Output current: 1.5 A The product's 7 V is 5.1 V. Load regulation is 100 mV. This product's 50 mV is 0.01 %/V. The product's 68 dB is -20 dB.

L7805ACP Image

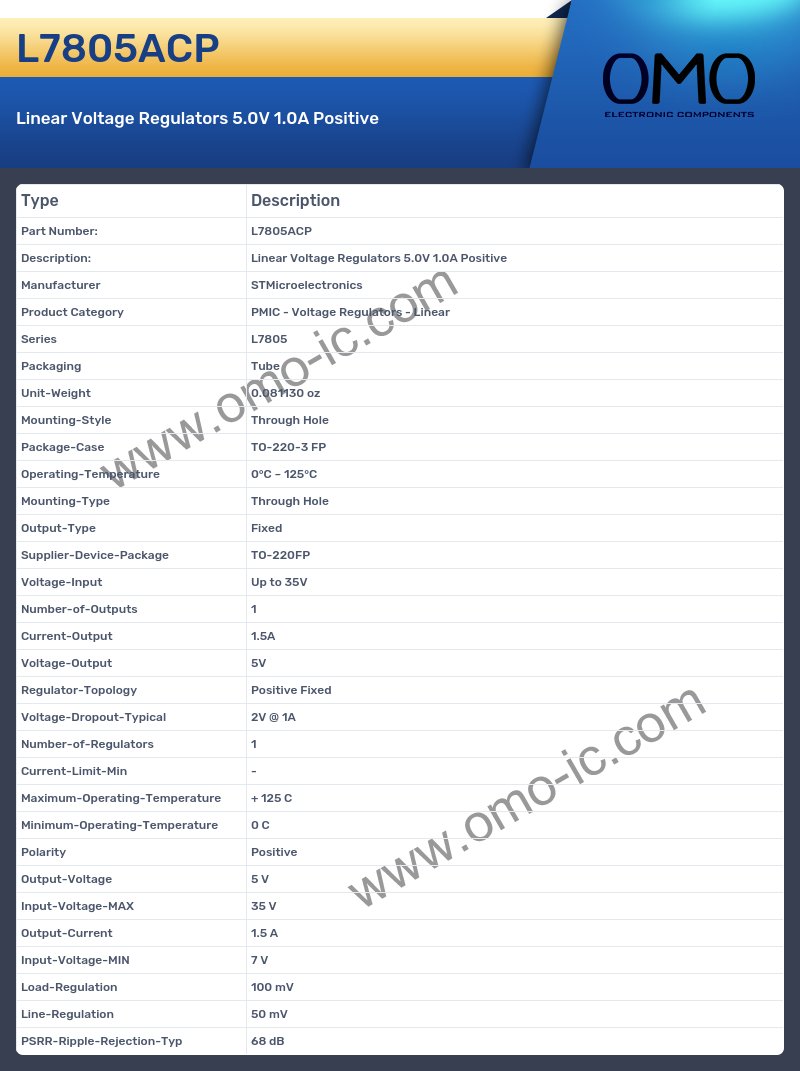

L7805ACP Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series L7805
• Packaging Tube
• Unit-Weight 0.081130 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3 FP
• Operating-Temperature 0°C ~ 125°C
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package TO-220FP
• Voltage-Input Up to 35V
• Number-of-Outputs 1
• Current-Output 1.5A
• Voltage-Output 5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 2V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature 0 C
• Polarity Positive
• Output-Voltage 5 V
• Input-Voltage-MAX 35 V
• Output-Current 1.5 A
• Input-Voltage-MIN 7 V
• Load-Regulation 100 mV
• Line-Regulation 50 mV
• PSRR-Ripple-Rejection-Typ 68 dB
