L9733XPTR Overview

Product belongs to the L9733 series. This product is categorized as MOSFET Gate Drivers Type: MOSFET Driver Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSSO-28 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TA) Output-Type: N-Channel Interface: SPI Supplier device package: PowerSSO-28 Exposed Pad The Ratio-Input:Output for this product is 1899/12/30 1:08:00. Configuration High Side/Low Side Number-of-Outputs: 8 Supply Voltage: 4.5 V ~ 5.5 V The High Side or Low Side. The 700 mOhm (Max). Voltage-Load range is 4.5 V ~ 18 V. Our product delivers a 1A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output current: 800 mA This product has a 70 ns of 16 ns. This product has a 70 ns of 16 ns. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Number-of-Drivers: 8 Driver 20 us maximum turn-on delay time

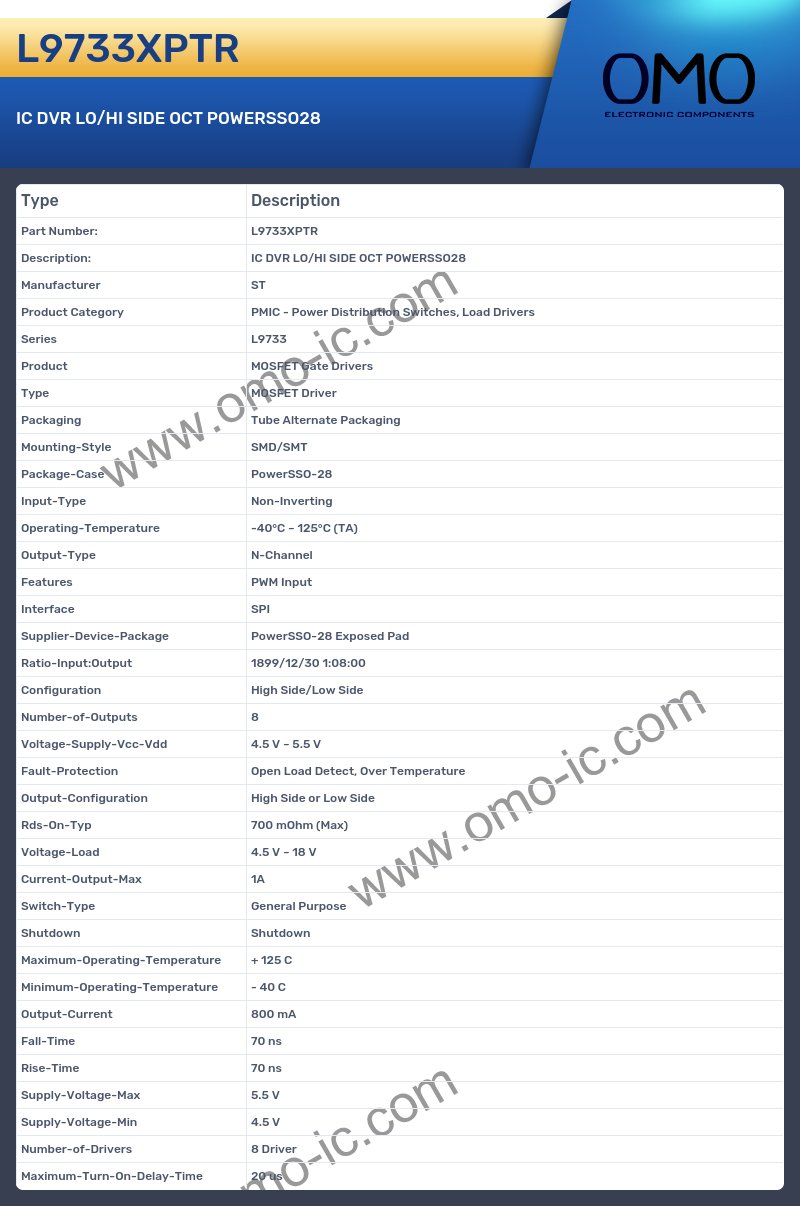

L9733XPTR Image

L9733XPTR Specifications

• Manufacturer ST
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series L9733
• Product MOSFET Gate Drivers
• Type MOSFET Driver
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PowerSSO-28
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 125°C (TA)
• Output-Type N-Channel
• Features PWM Input
• Interface SPI
• Supplier-Device-Package PowerSSO-28 Exposed Pad
• Ratio-Input:Output 1899/12/30 1:08:00
• Configuration High Side/Low Side
• Number-of-Outputs 8
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 5.5 V
• Fault-Protection Open Load Detect, Over Temperature
• Output-Configuration High Side or Low Side
• Rds-On-Typ 700 mOhm (Max)
• Voltage-Load 4.5 V ~ 18 V
• Current-Output-Max 1A
• Switch-Type General Purpose
• Shutdown Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Current 800 mA
• Fall-Time 70 ns
• Rise-Time 70 ns
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Number-of-Drivers 8 Driver
• Maximum-Turn-On-Delay-Time 20 us
