L99MC6GJTR Overview

Product belongs to the - series. This product is categorized as Half-Bridge Drivers Type: High Side/Low Side Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSSO-16 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: SPI Supplier device package: PowerSSO-16 The Ratio-Input:Output for this product is 1899/12/30 1:06:00. Configuration Non-Inverting Number-of-Outputs: 6 Supply Voltage: 3 V ~ 5.25 V The High Side or Low Side. The 700 mOhm. Voltage-Load range is 6 V ~ 28 V. Our product delivers a 600mA of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: Shutdown Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C 1.3 mA is 92 nA. Output current: 600 mA This product has a 110 ns of 16 ns. This product has a 110 ns of 16 ns. The 700 mOhms for this product is 12 Ohms. Maximum supply voltage of 5.25 V Minimum supply voltage is 3 V Number-of-Drivers: 6 Driver This product has a Maximum-Turn-Off-Delay-Time of 100 us. 100 us maximum turn-on delay time

L99MC6GJTR Image

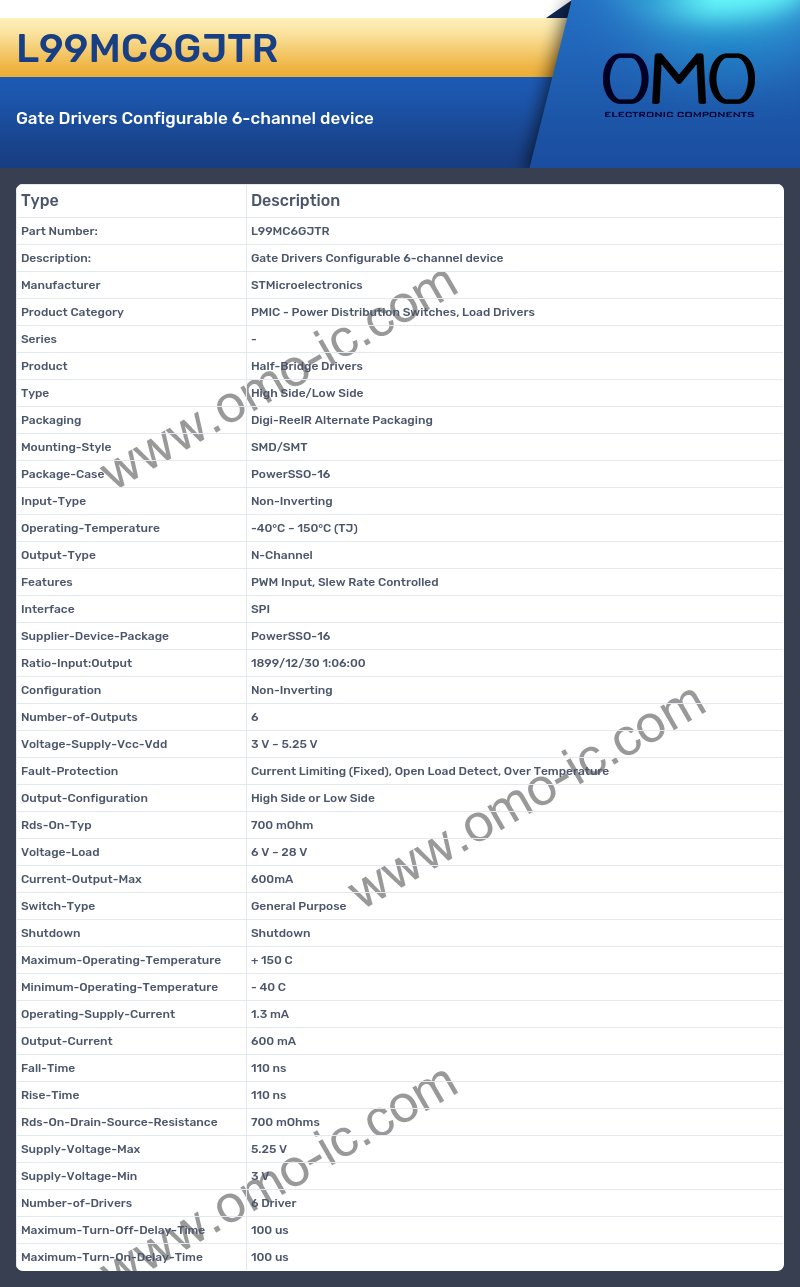

L99MC6GJTR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series -
• Product Half-Bridge Drivers
• Type High Side/Low Side
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PowerSSO-16
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features PWM Input, Slew Rate Controlled
• Interface SPI
• Supplier-Device-Package PowerSSO-16
• Ratio-Input:Output 1899/12/30 1:06:00
• Configuration Non-Inverting
• Number-of-Outputs 6
• Voltage-Supply-Vcc-Vdd 3 V ~ 5.25 V
• Fault-Protection Current Limiting (Fixed), Open Load Detect, Over Temperature
• Output-Configuration High Side or Low Side
• Rds-On-Typ 700 mOhm
• Voltage-Load 6 V ~ 28 V
• Current-Output-Max 600mA
• Switch-Type General Purpose
• Shutdown Shutdown
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1.3 mA
• Output-Current 600 mA
• Fall-Time 110 ns
• Rise-Time 110 ns
• Rds-On-Drain-Source-Resistance 700 mOhms
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 3 V
• Number-of-Drivers 6 Driver
• Maximum-Turn-Off-Delay-Time 100 us
• Maximum-Turn-On-Delay-Time 100 us
