LD1117V

LD1117V Overview

Product belongs to the LD1117V series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Operational temperature range: 0°C ~ 125°C Through Hole mounting type Output-Type: Adjustable Supplier device package: TO-220AB Up to 15V voltage input Number-of-Outputs: 1 Output Output voltage: 1.25 V ~ 15 V Positive Adjustable regulator topology The product has 1 of 1. Power-off control: 12 W Maximum operating temperature of + 150 C Minimum operating temperature: 0 C Output voltage: 1.25 V to 15 V Maximum Input Voltage: 15 V Output current: 950 mA Load regulation is 0.4 %. The voltage regulation accuracy of this product is 1 %. Input bias current of 5 mA This product has a 10 mA of 7 mA, making it ideal for low-power applications. Reference voltage is 1.26 V . The 1 V at 100 mA. The maximum 1.1 V is 360 mV. This product's 0.2 % is 0.01 %/V.

LD1117V Image

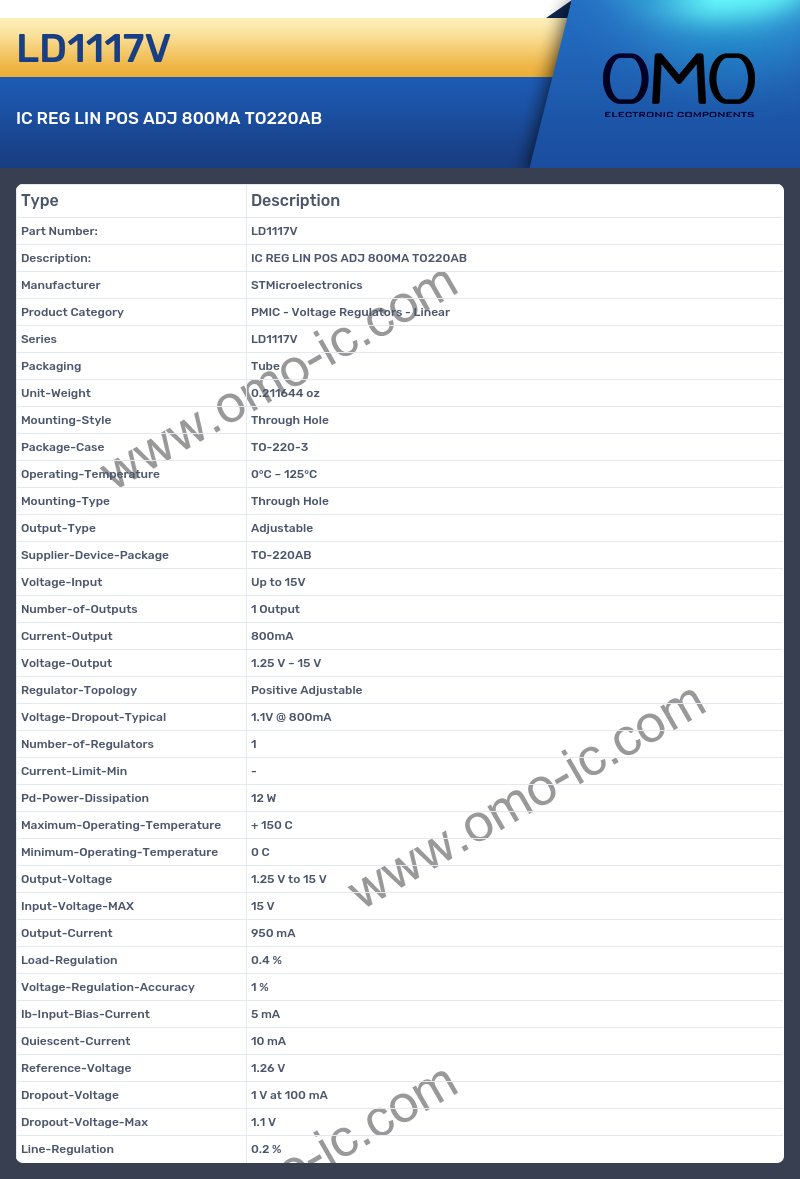

LD1117V Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LD1117V
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Operating-Temperature 0°C ~ 125°C
• Mounting-Type Through Hole
• Output-Type Adjustable
• Supplier-Device-Package TO-220AB
• Voltage-Input Up to 15V
• Number-of-Outputs 1 Output
• Current-Output 800mA
• Voltage-Output 1.25 V ~ 15 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 1.1V @ 800mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 12 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage 1.25 V to 15 V
• Input-Voltage-MAX 15 V
• Output-Current 950 mA
• Load-Regulation 0.4 %
• Voltage-Regulation-Accuracy 1 %
• Ib-Input-Bias-Current 5 mA
• Quiescent-Current 10 mA
• Reference-Voltage 1.26 V
• Dropout-Voltage 1 V at 100 mA
• Dropout-Voltage-Max 1.1 V
• Line-Regulation 0.2 %
