LD3980PU08R

LD3980PU08R Overview

Product belongs to the LD3980 series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style DFN-EP-6 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 6-DFN (3x3) 1.7 V ~ 3.6 V voltage input Number-of-Outputs: 1 Output Output voltage: 0.8V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 800 mV Maximum Input Voltage: 3.6 V Output current: 610 mA The product's + 1.7 V is 5.1 V. Load regulation is 0.3 % / mA. The voltage regulation accuracy of this product is 1 %. Input bias current of 90 uA This product has a 110 uA of 7 mA, making it ideal for low-power applications. Reference voltage is 0.7 V . The 0.13 V at 300 mA. The maximum 150 mV at 300 mA is 360 mV. This product's 0.15 % / V is 0.01 %/V.

LD3980PU08R Image

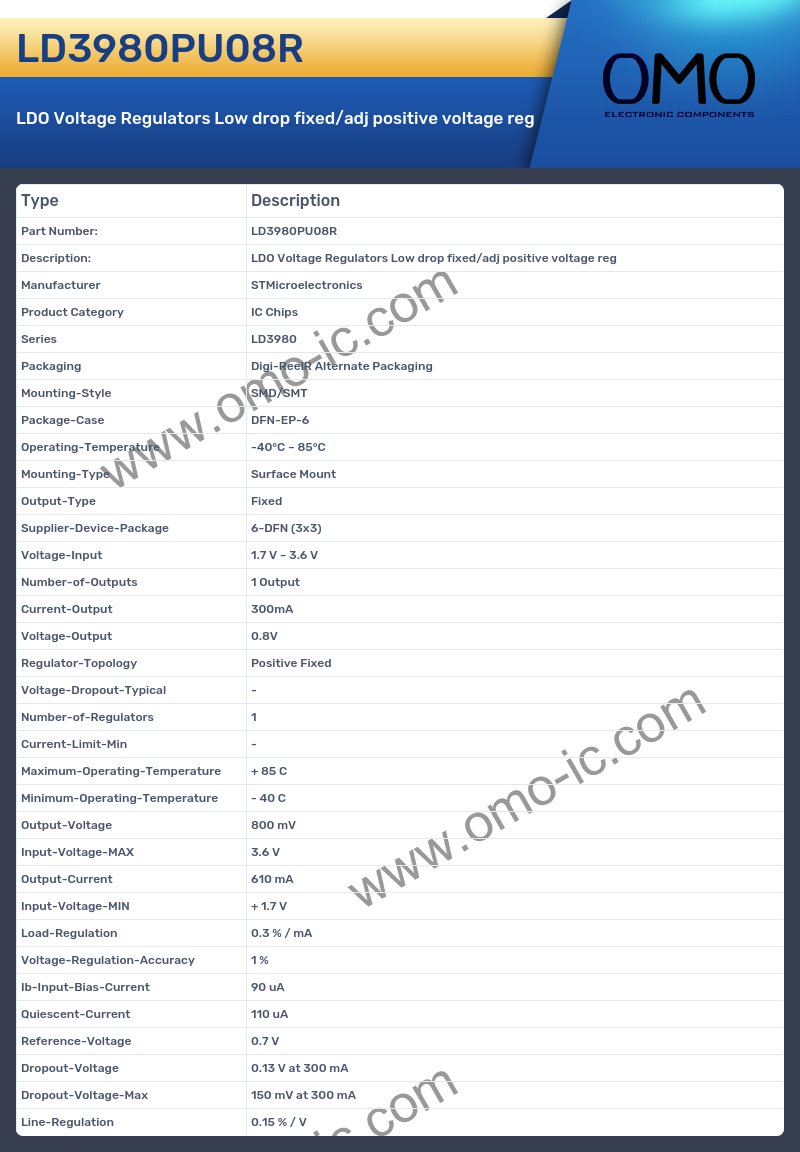

LD3980PU08R Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series LD3980
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case DFN-EP-6
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 6-DFN (3x3)
• Voltage-Input 1.7 V ~ 3.6 V
• Number-of-Outputs 1 Output
• Current-Output 300mA
• Voltage-Output 0.8V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical -
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 800 mV
• Input-Voltage-MAX 3.6 V
• Output-Current 610 mA
• Input-Voltage-MIN + 1.7 V
• Load-Regulation 0.3 % / mA
• Voltage-Regulation-Accuracy 1 %
• Ib-Input-Bias-Current 90 uA
• Quiescent-Current 110 uA
• Reference-Voltage 0.7 V
• Dropout-Voltage 0.13 V at 300 mA
• Dropout-Voltage-Max 150 mV at 300 mA
• Line-Regulation 0.15 % / V
