LDFPUR Overview

Product belongs to the - series. This product is categorized as LDO Voltage Regulators Type: Very Low Drop Linear Regulator Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style DFN-EP-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 6-DFN (3x3) 2.6 V ~ 16 V voltage input Number-of-Outputs: 1 Output Output voltage: 0.8 V ~ 12 V Positive Adjustable regulator topology The product has 1 of 1. Power-off control: Internally Limited Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: Adj 200 uA is 92 nA. Maximum Input Voltage: 16 V Output current: 1 A The product's 2.6 V is 5.1 V. Load regulation is 0.2 % / A. The 200 mV. The maximum 500 mV is 360 mV. This product's 0.01 %/V is 0.01 %/V. The product's 62 dB is -20 dB. This product has an 800 mV to 12 V of 2.7 V to 5.5 V.

LDFPUR Image

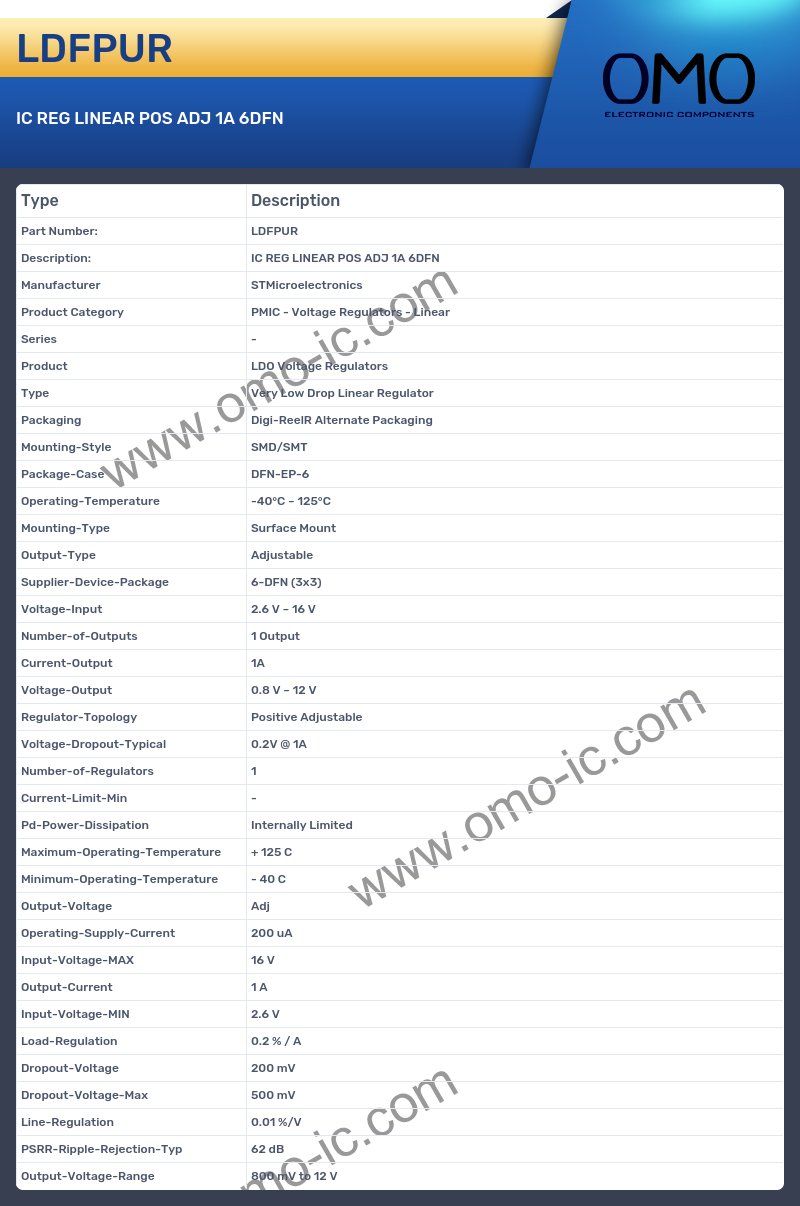

LDFPUR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Product LDO Voltage Regulators
• Type Very Low Drop Linear Regulator
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case DFN-EP-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package 6-DFN (3x3)
• Voltage-Input 2.6 V ~ 16 V
• Number-of-Outputs 1 Output
• Current-Output 1A
• Voltage-Output 0.8 V ~ 12 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.2V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation Internally Limited
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage Adj
• Operating-Supply-Current 200 uA
• Input-Voltage-MAX 16 V
• Output-Current 1 A
• Input-Voltage-MIN 2.6 V
• Load-Regulation 0.2 % / A
• Dropout-Voltage 200 mV
• Dropout-Voltage-Max 500 mV
• Line-Regulation 0.01 %/V
• PSRR-Ripple-Rejection-Typ 62 dB
• Output-Voltage-Range 800 mV to 12 V
