LM1117IMP-3.3/NOPB

LM1117IMP-3.3/NOPB Overview

Product belongs to the LM1117-3.3 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006632 oz SMD/SMT Mounting-Style SOT-223-4 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-223 Up to 15V voltage input Number-of-Outputs: 1 Output Output voltage: 3.3V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.3 V Maximum Input Voltage: 15 V Output current: 1.5 A Load regulation is 1 mV. The voltage regulation accuracy of this product is +/- 1 %. Input bias current of 5 mA This product has a 15 mA of 7 mA, making it ideal for low-power applications. The 1.1 V at 100 mA 1.15 V at 500 mA 1.2 V at 800 mA. The maximum 1.3 V at 100 mA 1.35 V at 500 mA 1.4 V at 800 mA is 360 mV. This product's 1 mV is 0.01 %/V.

LM1117IMP-3.3/NOPB Image

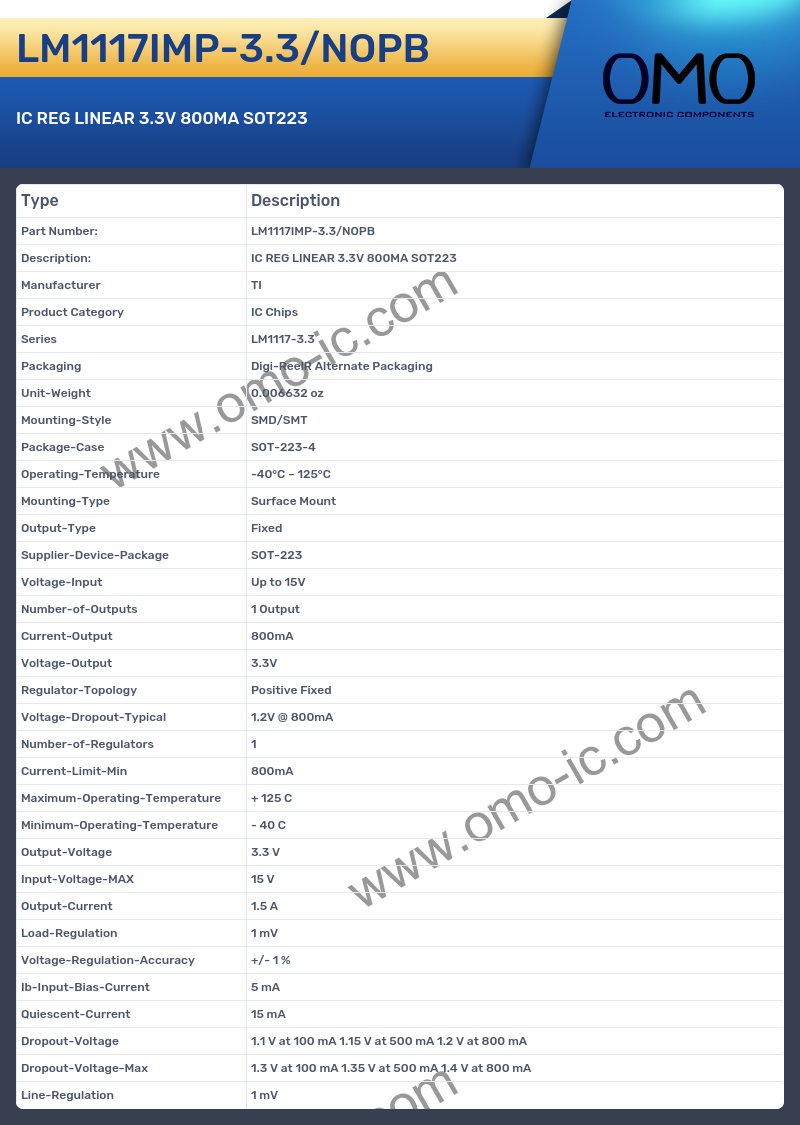

LM1117IMP-3.3/NOPB Specifications

• Manufacturer TI
• Product Category IC Chips
• Series LM1117-3.3
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.006632 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-223-4
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-223
• Voltage-Input Up to 15V
• Number-of-Outputs 1 Output
• Current-Output 800mA
• Voltage-Output 3.3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 1.2V @ 800mA
• Number-of-Regulators 1
• Current-Limit-Min 800mA
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Input-Voltage-MAX 15 V
• Output-Current 1.5 A
• Load-Regulation 1 mV
• Voltage-Regulation-Accuracy +/- 1 %
• Ib-Input-Bias-Current 5 mA
• Quiescent-Current 15 mA
• Dropout-Voltage 1.1 V at 100 mA 1.15 V at 500 mA 1.2 V at 800 mA
• Dropout-Voltage-Max 1.3 V at 100 mA 1.35 V at 500 mA 1.4 V at 800 mA
• Line-Regulation 1 mV
