LM236DR-2-5 Overview

Product belongs to the LM236-2.5 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -25°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SOIC Tolerance of ±2% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 2.49V . 33 PPM / C is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C Output voltage: 2.49 V Initial accuracy: 2 % Maximum shunt current of 10 mA This product has a minimum 400 uA of 50 uA.

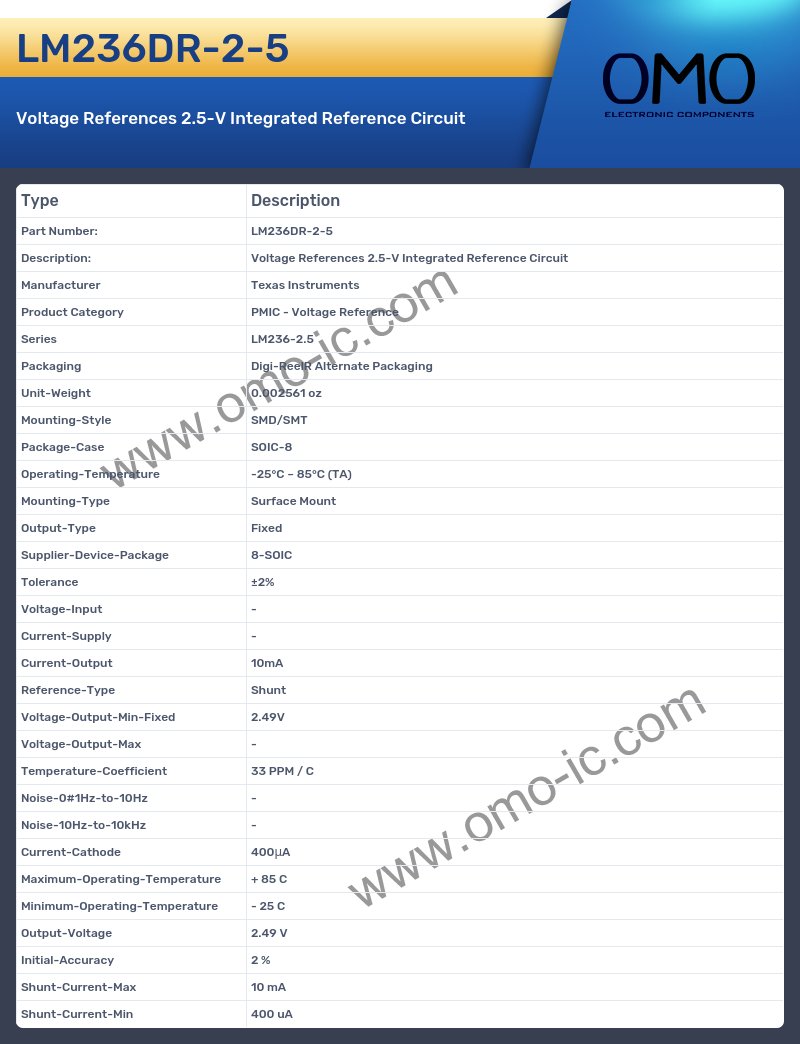

LM236DR-2-5 Image

LM236DR-2-5 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Reference
• Series LM236-2.5
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -25°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-SOIC
• Tolerance ±2%
• Voltage-Input -
• Current-Supply -
• Current-Output 10mA
• Reference-Type Shunt
• Voltage-Output-Min-Fixed 2.49V
• Voltage-Output-Max -
• Temperature-Coefficient 33 PPM / C
• Noise-0#1Hz-to-10Hz -
• Noise-10Hz-to-10kHz -
• Current-Cathode 400μA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Output-Voltage 2.49 V
• Initial-Accuracy 2 %
• Shunt-Current-Max 10 mA
• Shunt-Current-Min 400 uA
