LM236H-5.0

LM236H-5.0 Overview

Product belongs to the LM136-5.0 series. Tube is the packaging method for this product Through Hole Mounting-Style TO-46 Operational temperature range: -25°C ~ 85°C (TA) Through Hole mounting type Output-Type: Fixed Supplier device package: TO (NDT) Tolerance of ±2% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 5V . - is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C Output voltage: 5 V Initial accuracy: 1 % Maximum shunt current of 10 mA Maximum output voltage is 6 V .

LM236H-5.0 Image

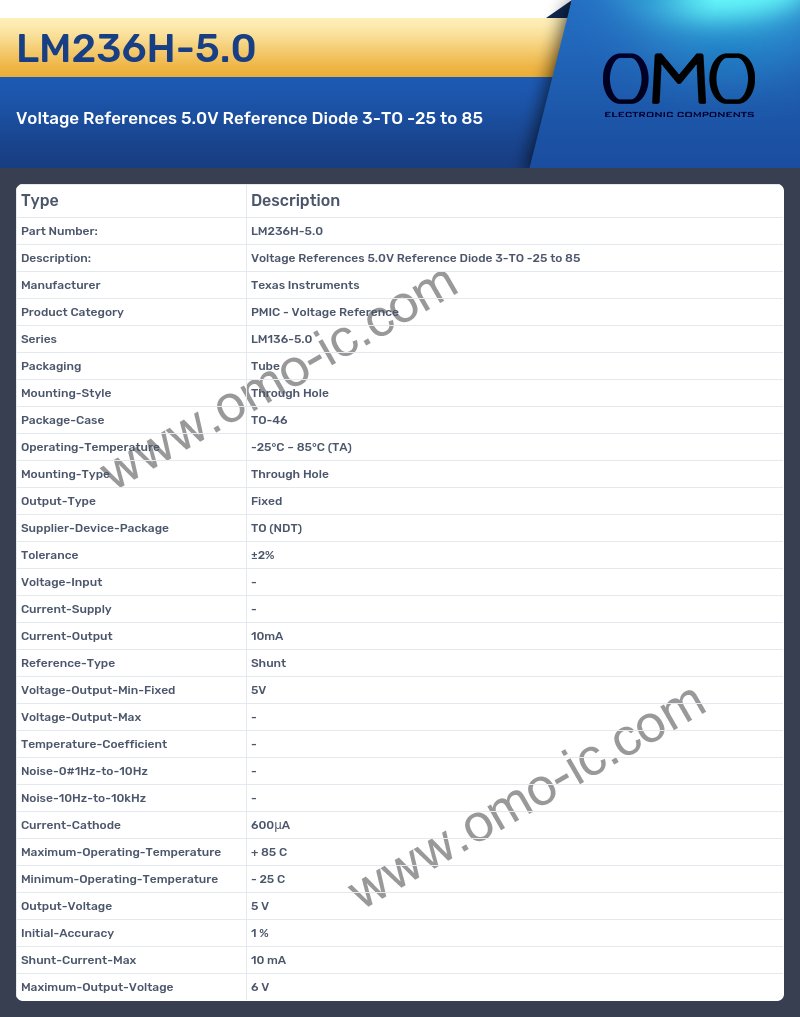

LM236H-5.0 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Reference
• Series LM136-5.0
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case TO-46
• Operating-Temperature -25°C ~ 85°C (TA)
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package TO (NDT)
• Tolerance ±2%
• Voltage-Input -
• Current-Supply -
• Current-Output 10mA
• Reference-Type Shunt
• Voltage-Output-Min-Fixed 5V
• Voltage-Output-Max -
• Temperature-Coefficient -
• Noise-0#1Hz-to-10Hz -
• Noise-10Hz-to-10kHz -
• Current-Cathode 600μA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Output-Voltage 5 V
• Initial-Accuracy 1 %
• Shunt-Current-Max 10 mA
• Maximum-Output-Voltage 6 V
