LM2694SD

LM2694SD Overview

Product belongs to the - series. Digi-ReelR is the packaging method for this product 10-WFDFN Exposed Pad Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 10-WSON (3x3) Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 1MHz for optimal performance. The Positive. Minimum fixed output voltage is 2.5V . The value of No is included as a product attribute. The minimum input voltage is 8V. The 30V.

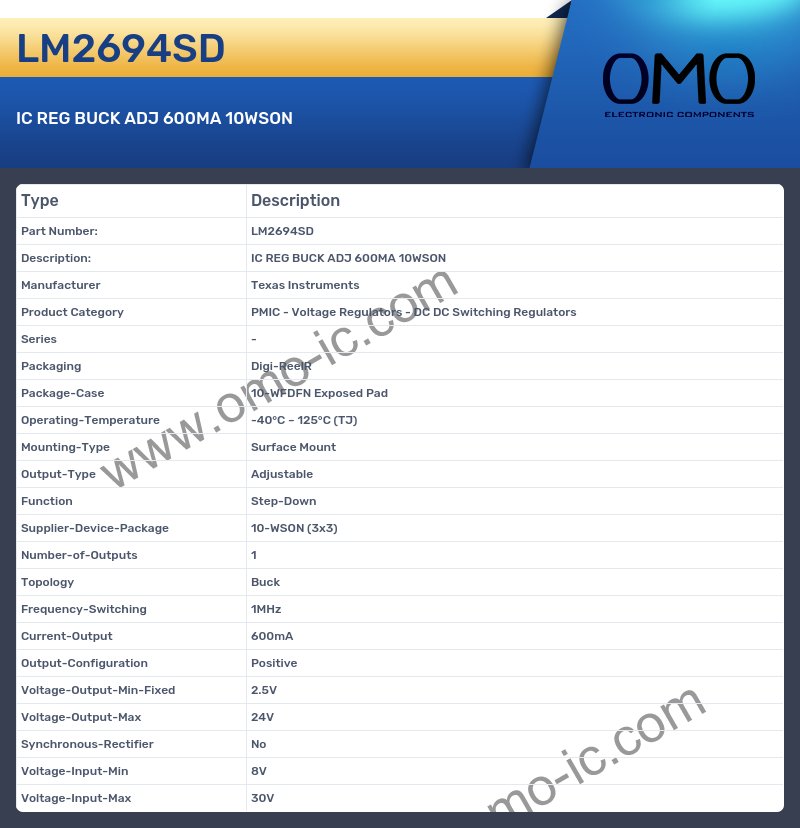

LM2694SD Image

LM2694SD Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series -
• Packaging Digi-ReelR
• Package-Case 10-WFDFN Exposed Pad
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 10-WSON (3x3)
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 1MHz
• Current-Output 600mA
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 2.5V
• Voltage-Output-Max 24V
• Synchronous-Rectifier No
• Voltage-Input-Min 8V
• Voltage-Input-Max 30V
