LM311PSRE4

LM311PSRE4 Overview

Product belongs to the LM311 series. This product is categorized as Analog Comparators Type: General Purpose Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004325 oz SMD/SMT Mounting-Style SOP-8 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL Number of channels: 1 Channel Supplier device package: 8-SO Voltage supply range: 3.5 V ~ 30 V, ±1.75 V ~ 15 V 1 element 7.5mA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 115 ns response time Power-off control: No Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 7.5 mA is 92 nA. Maximum supply voltage of 30 V Minimum supply voltage is 3.5 V Differential comparator type Input bias current of 300 nA The 7.5 mV. The - 14.7V to 13.8 V. 50 mA

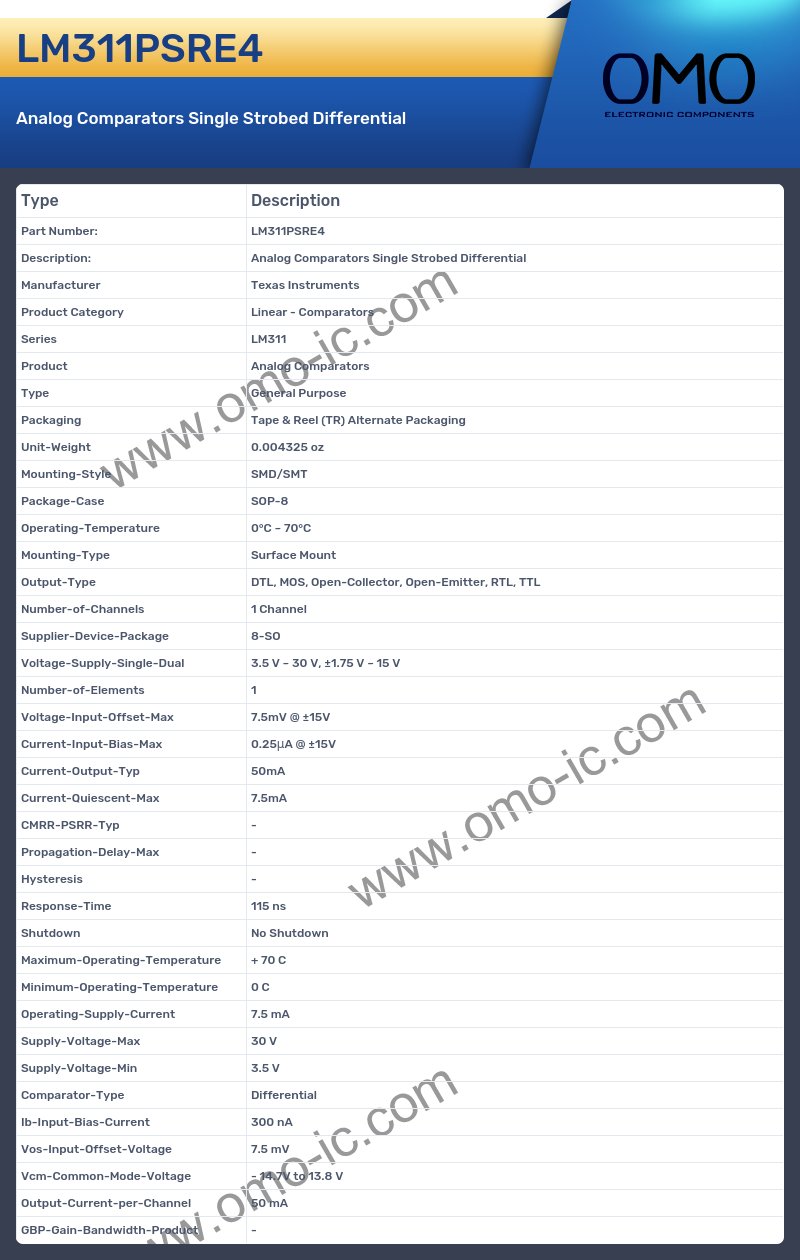

LM311PSRE4 Image

LM311PSRE4 Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series LM311
• Product Analog Comparators
• Type General Purpose
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004325 oz
• Mounting-Style SMD/SMT
• Package-Case SOP-8
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SO
• Voltage-Supply-Single-Dual 3.5 V ~ 30 V, ±1.75 V ~ 15 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 7.5mV @ ±15V
• Current-Input-Bias-Max 0.25μA @ ±15V
• Current-Output-Typ 50mA
• Current-Quiescent-Max 7.5mA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 115 ns
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 7.5 mA
• Supply-Voltage-Max 30 V
• Supply-Voltage-Min 3.5 V
• Comparator-Type Differential
• Ib-Input-Bias-Current 300 nA
• Vos-Input-Offset-Voltage 7.5 mV
• Vcm-Common-Mode-Voltage - 14.7V to 13.8 V
• Output-Current-per-Channel 50 mA
• GBP-Gain-Bandwidth-Product -
