| Mfr. #: | LM3630ATME |
|---|---|
| Hersteller: | Texas Instruments |
| Beschreibung: | LED Lighting Drivers Hi Eff Dual-String White LED Dv |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | LM3630ATME Datenblatt |
Product belongs to the LM3630A series. Type: DC DC Regulator Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style DSBGA-12 This product's - range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Current Mode Versatile Backlight applications for maximum usability Supplier device package: 12-DSBGA Number-of-Outputs: 2 Current-Output-Channel is 28.5mA This product has Yes. Topology: Step-Up (Boost) feedback The maximum voltage supply is 5.5V. The minimum 2.3V required for voltage supply. Output voltage: - Dimming control is done through PWM communication. Power-off control: Internally Limited Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C The operating frequency is 500 kHz 1 MHz. Input Voltage Range: 2.3 V to 5.5 V Output current: 20 mA Maximum supply current: 350 uA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

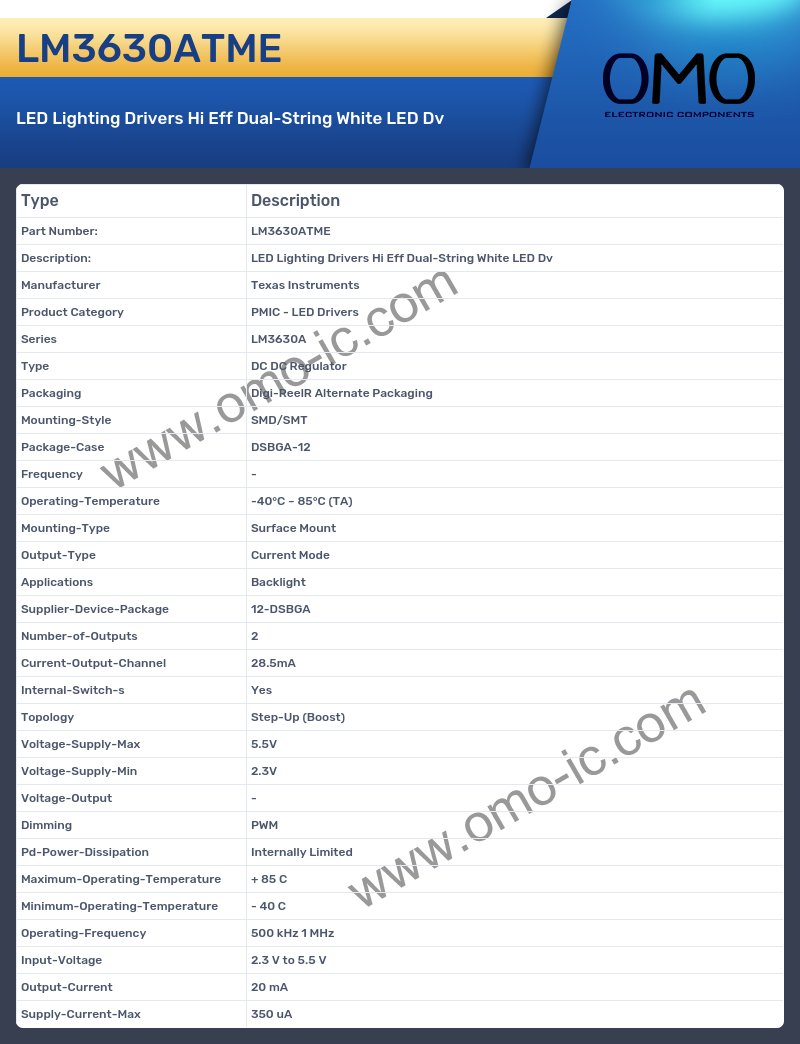

LM3630ATME Specifications
A: At what frequency does the Series?
Q: The product Series is LM3630A.
A: Is the cutoff frequency of the product Type?
Q: Yes, the product's Type is indeed DC DC Regulator
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: What is the Package-Case of the product?
Q: The Package-Case of the product is DSBGA-12.
A: At what frequency does the Frequency?
Q: The product Frequency is -.
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 85°C (TA).
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: What is the Output-Type of the product?
Q: The Output-Type of the product is Current Mode.
A: Is the cutoff frequency of the product Applications?
Q: Yes, the product's Applications is indeed Backlight
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 12-DSBGA
A: At what frequency does the Number-of-Outputs?
Q: The product Number-of-Outputs is 2.
A: What is the Current-Output-Channel of the product?
Q: The Current-Output-Channel of the product is 28.5mA.
A: At what frequency does the Internal-Switch-s?
Q: The product Internal-Switch-s is Yes.
A: At what frequency does the Topology?
Q: The product Topology is Step-Up (Boost).
A: At what frequency does the Voltage-Supply-Max?
Q: The product Voltage-Supply-Max is 5.5V.
A: At what frequency does the Voltage-Supply-Min?
Q: The product Voltage-Supply-Min is 2.3V.
A: At what frequency does the Voltage-Output?
Q: The product Voltage-Output is -.
A: Is the cutoff frequency of the product Dimming?
Q: Yes, the product's Dimming is indeed PWM
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed Internally Limited
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 85 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: Is the cutoff frequency of the product Operating-Frequency?
Q: Yes, the product's Operating-Frequency is indeed 500 kHz 1 MHz
A: At what frequency does the Input-Voltage?
Q: The product Input-Voltage is 2.3 V to 5.5 V.
A: What is the Output-Current of the product?
Q: The Output-Current of the product is 20 mA.
A: At what frequency does the Supply-Current-Max?
Q: The product Supply-Current-Max is 350 uA.
