LM393AN

LM393AN Overview

Product belongs to the - series. This product is categorized as Analog Comparators Type: General Purpose Tube is the packaging method for this product Weight of 0.030018 oz Through Hole Mounting-Style DIP-8 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Output-Type: CMOS, DTL, ECL, MOS, Open-Collector, TTL Number of channels: 2 Channel Supplier device package: 8-DIP Voltage supply range: 2 V ~ 36 V, ±1 V ~ 18 V 2 element 2.5mA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 1.3 us response time Power-off control: No Shutdown Power-off control: 1040 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 2 mA is 92 nA. This product is also known as LM393AN_NL and can be referred to by either part number. Maximum supply voltage of 36 V Minimum supply voltage is 18 V Input bias current of 250 nA The 2 mV. The +/- 50 nA. The Negative Rail to Positive Rail - 1.5 V. 18 mA

LM393AN Image

LM393AN Specifications

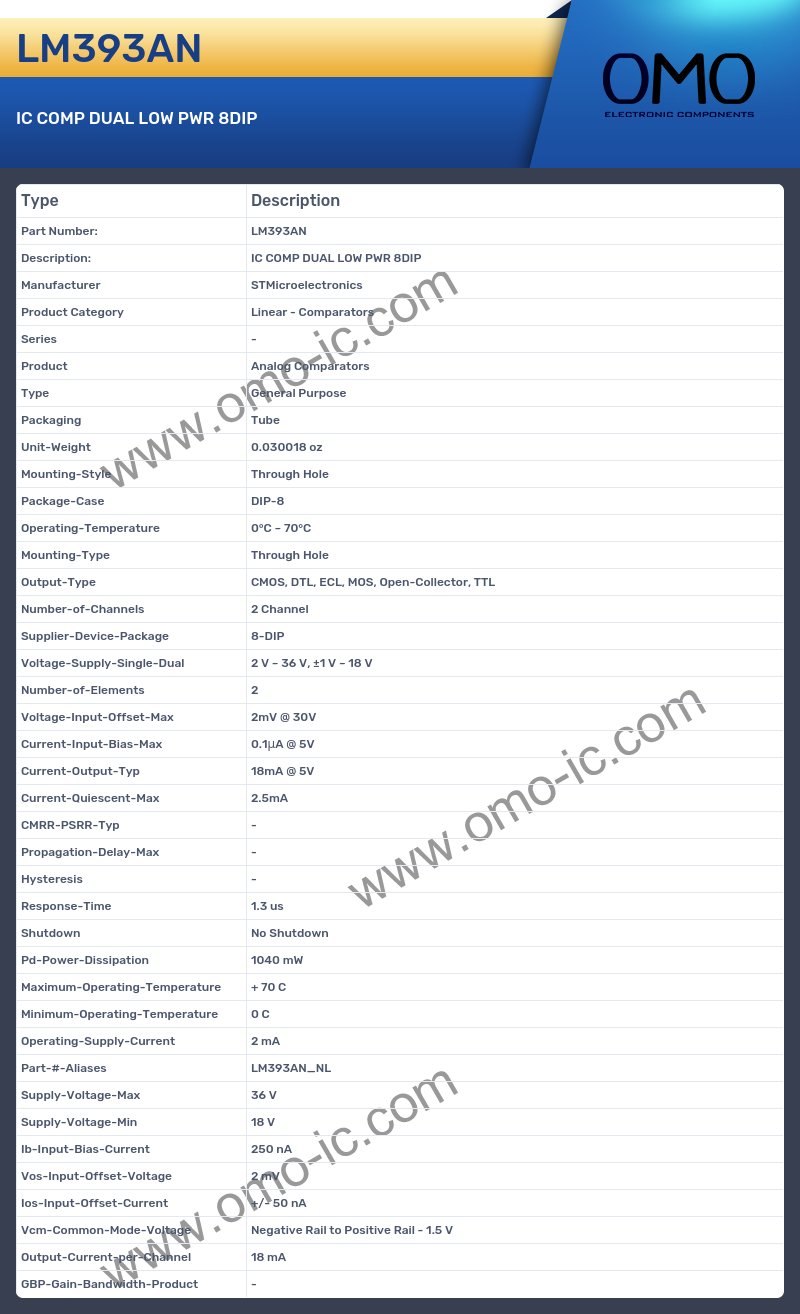

• Manufacturer STMicroelectronics
• Product Category Linear - Comparators
• Series -
• Product Analog Comparators
• Type General Purpose
• Packaging Tube
• Unit-Weight 0.030018 oz
• Mounting-Style Through Hole
• Package-Case DIP-8
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Through Hole
• Output-Type CMOS, DTL, ECL, MOS, Open-Collector, TTL
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-DIP
• Voltage-Supply-Single-Dual 2 V ~ 36 V, ±1 V ~ 18 V
• Number-of-Elements 2
• Voltage-Input-Offset-Max 2mV @ 30V
• Current-Input-Bias-Max 0.1μA @ 5V
• Current-Output-Typ 18mA @ 5V
• Current-Quiescent-Max 2.5mA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 1.3 us
• Shutdown No Shutdown
• Pd-Power-Dissipation 1040 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 2 mA
• Part-#-Aliases LM393AN_NL
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 18 V
• Ib-Input-Bias-Current 250 nA
• Vos-Input-Offset-Voltage 2 mV
• Ios-Input-Offset-Current +/- 50 nA
• Vcm-Common-Mode-Voltage Negative Rail to Positive Rail - 1.5 V
• Output-Current-per-Channel 18 mA
• GBP-Gain-Bandwidth-Product -
