LP38690SD-1.8

LP38690SD-1.8 Overview

Product belongs to the LP38690 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000342 oz SMD/SMT Mounting-Style WSON-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 6-WSON (3x3) Up to 10V voltage input Number-of-Outputs: 1 Output Output voltage: 1.8V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.8 V Maximum Input Voltage: 10 V Output current: 1 A The product's 2.7 V is 5.1 V. Load regulation is 1.8 %/A. The voltage regulation accuracy of this product is +/- 2.5 %. Input bias current of 55 uA This product has a 100 uA of 7 mA, making it ideal for low-power applications. The 0.95 V at 1 A. The maximum 1.6 V at 1 A is 360 mV. This product's 0.03 %/V is 0.01 %/V.

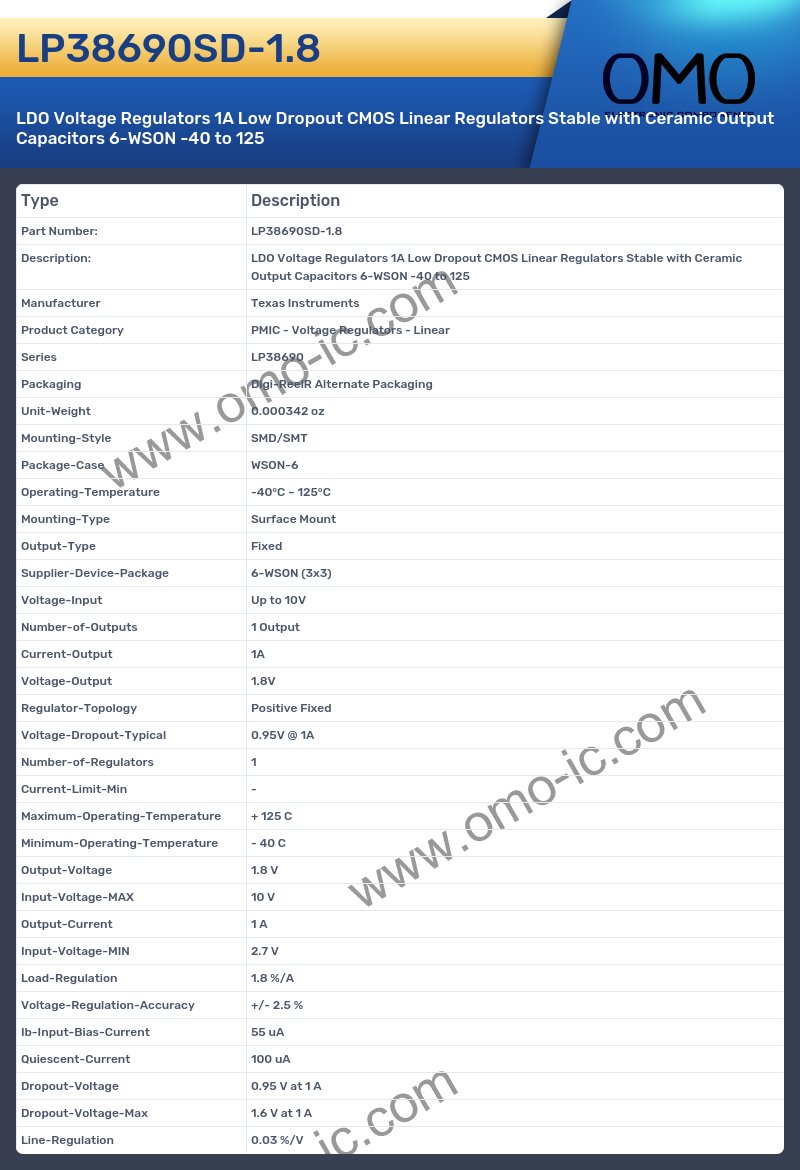

LP38690SD-1.8 Image

LP38690SD-1.8 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series LP38690
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000342 oz
• Mounting-Style SMD/SMT
• Package-Case WSON-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 6-WSON (3x3)
• Voltage-Input Up to 10V
• Number-of-Outputs 1 Output
• Current-Output 1A
• Voltage-Output 1.8V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.95V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.8 V
• Input-Voltage-MAX 10 V
• Output-Current 1 A
• Input-Voltage-MIN 2.7 V
• Load-Regulation 1.8 %/A
• Voltage-Regulation-Accuracy +/- 2.5 %
• Ib-Input-Bias-Current 55 uA
• Quiescent-Current 100 uA
• Dropout-Voltage 0.95 V at 1 A
• Dropout-Voltage-Max 1.6 V at 1 A
• Line-Regulation 0.03 %/V
