MAT01AH Overview

Product belongs to the MAT01 series. Tube is the packaging method for this product TO-78-6 Metal Can Through Hole mounting type Supplier device package: TO-78-6 Configuration Dual Transistor type: 2 NPN (Dual) Matched Pair Maximum current collector Ic is 25mA . Maximum collector-emitter breakdown voltage of 45V DC current gain minimum (hFE) of Ic/Vce at -. Product Attribute: Vce-Saturation-Max-Ib-Ic: 800mV @ 1mA, 10mA Power-off control: 500 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Rated VCEO up to 45 V The transistor polarity is NPN. Max DC collector current: 0.025 A Minimum hfe for DC collector-base gain is 500 at 10 uA at 15 V.

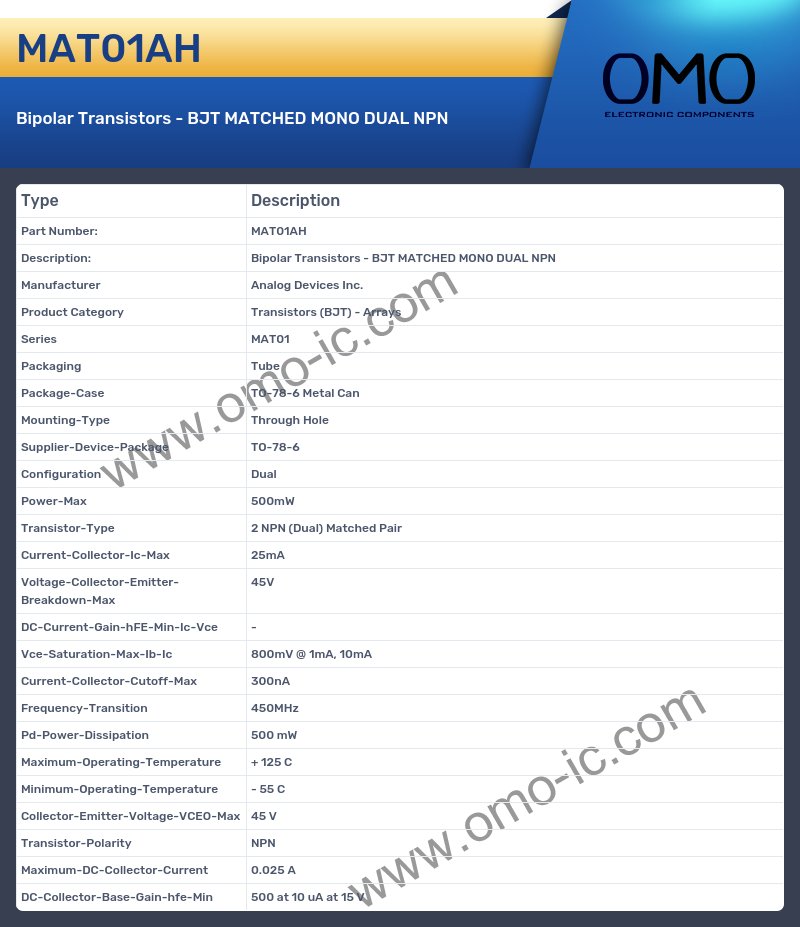

MAT01AH Image

MAT01AH Specifications

• Manufacturer Analog Devices Inc.
• Product Category Transistors (BJT) - Arrays
• Series MAT01
• Packaging Tube
• Package-Case TO-78-6 Metal Can
• Mounting-Type Through Hole
• Supplier-Device-Package TO-78-6
• Configuration Dual
• Power-Max 500mW
• Transistor-Type 2 NPN (Dual) Matched Pair
• Current-Collector-Ic-Max 25mA
• Voltage-Collector-Emitter-Breakdown-Max 45V
• DC-Current-Gain-hFE-Min-Ic-Vce -
• Vce-Saturation-Max-Ib-Ic 800mV @ 1mA, 10mA
• Current-Collector-Cutoff-Max 300nA
• Frequency-Transition 450MHz
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 45 V
• Transistor-Polarity NPN
• Maximum-DC-Collector-Current 0.025 A
• DC-Collector-Base-Gain-hfe-Min 500 at 10 uA at 15 V
