| Mfr. #: | MAT01GH |
|---|---|
| Hersteller: | Analog Devices Inc. |
| Beschreibung: | Bipolar Transistors - BJT MATCHED MONO DUAL NPN |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | MAT01GH Datenblatt |
Product belongs to the MAT01 series. Tube is the packaging method for this product TO-78-6 Metal Can Through Hole mounting type Supplier device package: TO-78-6 Configuration Dual Transistor type: 2 NPN (Dual) Matched Pair Maximum current collector Ic is 25mA . Maximum collector-emitter breakdown voltage of 45V DC current gain minimum (hFE) of Ic/Vce at -. Product Attribute: Vce-Saturation-Max-Ib-Ic: 800mV @ 1mA, 10mA Power-off control: 500 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Rated VCEO up to 45 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 800 mV The 45 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 25 mA Gain-Bandwidth-Product: 450 MHz Minimum hfe for DC collector-base gain is 250 at 10 uA 15 V.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

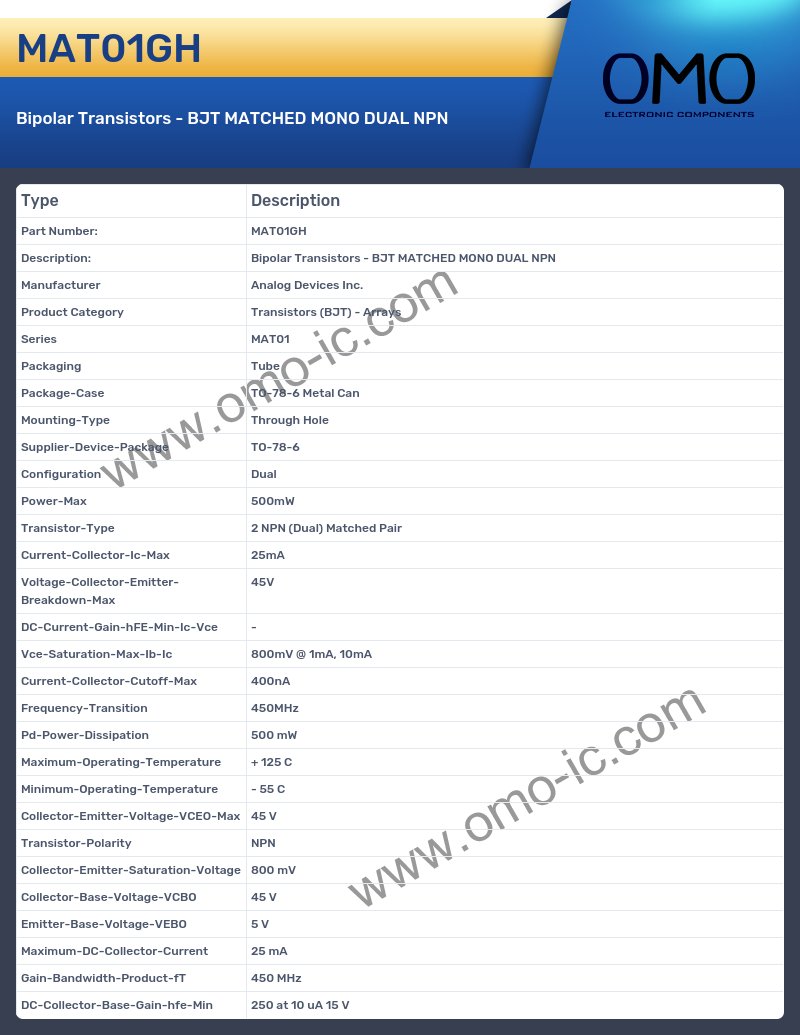

MAT01GH Specifications
A: At what frequency does the Series?
Q: The product Series is MAT01.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-78-6 Metal Can
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Through Hole.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed TO-78-6
A: What is the Configuration of the product?
Q: The Configuration of the product is Dual.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is 2 NPN (Dual) Matched Pair.
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 25mA.
A: At what frequency does the Voltage-Collector-Emitter-Breakdown-Max?
Q: The product Voltage-Collector-Emitter-Breakdown-Max is 45V.
A: Is the cutoff frequency of the product DC-Current-Gain-hFE-Min-Ic-Vce?
Q: Yes, the product's DC-Current-Gain-hFE-Min-Ic-Vce is indeed -
A: What is the Vce-Saturation-Max-Ib-Ic of the product?
Q: The Vce-Saturation-Max-Ib-Ic of the product is 800mV @ 1mA, 10mA.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 500 mW.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 125 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is 45 V.
A: At what frequency does the Transistor-Polarity?
Q: The product Transistor-Polarity is NPN.
A: What is the Collector-Emitter-Saturation-Voltage of the product?
Q: The Collector-Emitter-Saturation-Voltage of the product is 800 mV.
A: At what frequency does the Collector-Base-Voltage-VCBO?
Q: The product Collector-Base-Voltage-VCBO is 45 V.
A: What is the Emitter-Base-Voltage-VEBO of the product?
Q: The Emitter-Base-Voltage-VEBO of the product is 5 V.
A: Is the cutoff frequency of the product Maximum-DC-Collector-Current?
Q: Yes, the product's Maximum-DC-Collector-Current is indeed 25 mA
A: What is the Gain-Bandwidth-Product-fT of the product?
Q: The Gain-Bandwidth-Product-fT of the product is 450 MHz.
A: At what frequency does the DC-Collector-Base-Gain-hfe-Min?
Q: The product DC-Collector-Base-Gain-hfe-Min is 250 at 10 uA 15 V.
