MAT03FHZ Overview

Product belongs to the MAT03 series. Tube is the packaging method for this product Through Hole Mounting-Style TO-78-6 Metal Can Through Hole mounting type Supplier device package: TO-78-6 Configuration Dual Transistor type: 2 PNP (Dual) Maximum current collector Ic is 20mA . Maximum collector-emitter breakdown voltage of 36V DC current gain minimum (hFE) of Ic/Vce at -. Product Attribute: Vce-Saturation-Max-Ib-Ic: 100mV @ 100μA, 1mA Power-off control: 500 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Rated VCEO up to 36 V The transistor polarity is PNP. Saturation voltage between collector and emitter is 0.025 V The 36 V voltage rating is 40 V. 36 V rating of 5 V Max DC collector current: 20 mA Gain-Bandwidth-Product: 190 MHz This product is capable of handling a 20 mA continuous collector current. Minimum hfe for DC collector-base gain is 40. 120 of 605.

MAT03FHZ Image

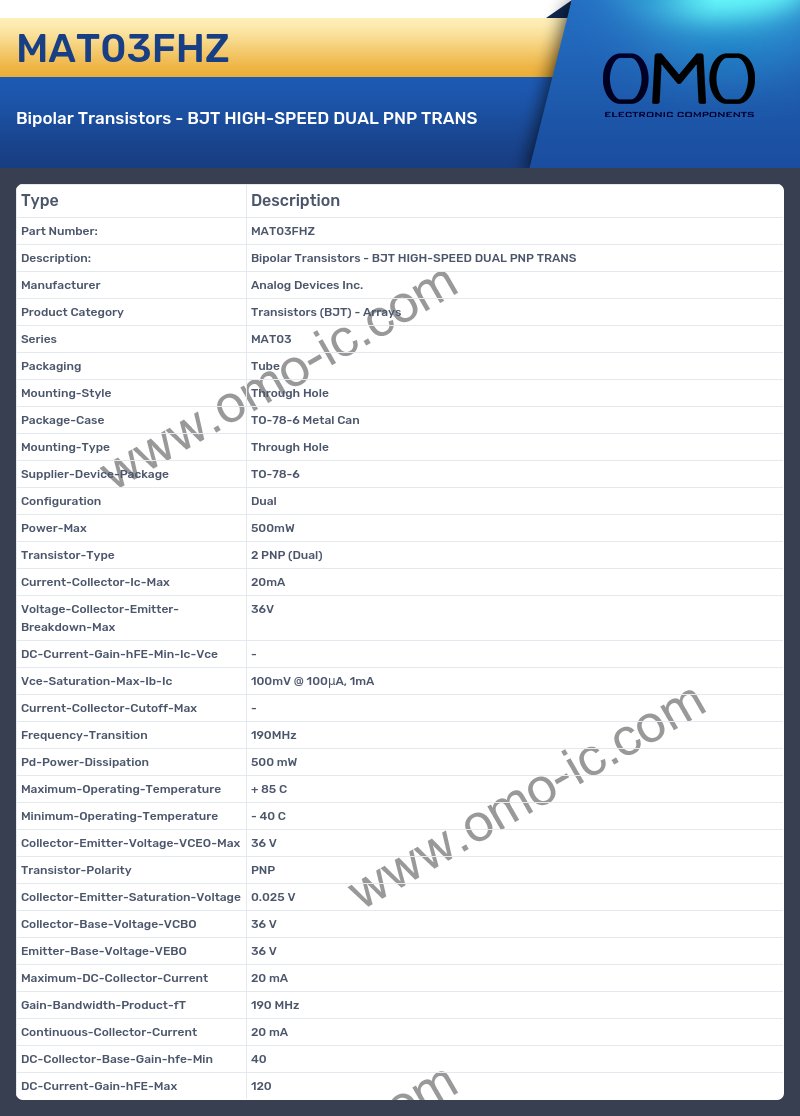

MAT03FHZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Transistors (BJT) - Arrays
• Series MAT03
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case TO-78-6 Metal Can
• Mounting-Type Through Hole
• Supplier-Device-Package TO-78-6
• Configuration Dual
• Power-Max 500mW
• Transistor-Type 2 PNP (Dual)
• Current-Collector-Ic-Max 20mA
• Voltage-Collector-Emitter-Breakdown-Max 36V
• DC-Current-Gain-hFE-Min-Ic-Vce -
• Vce-Saturation-Max-Ib-Ic 100mV @ 100μA, 1mA
• Current-Collector-Cutoff-Max -
• Frequency-Transition 190MHz
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Collector-Emitter-Voltage-VCEO-Max 36 V
• Transistor-Polarity PNP
• Collector-Emitter-Saturation-Voltage 0.025 V
• Collector-Base-Voltage-VCBO 36 V
• Emitter-Base-Voltage-VEBO 36 V
• Maximum-DC-Collector-Current 20 mA
• Gain-Bandwidth-Product-fT 190 MHz
• Continuous-Collector-Current 20 mA
• DC-Collector-Base-Gain-hfe-Min 40
• DC-Current-Gain-hFE-Max 120
