MAX3223EIDW

MAX3223EIDW Overview

Product belongs to the MAX3223E series. This product is categorized as RS-232 Transceivers Type: Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style SOIC-20 Wide Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is Transceiver. Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 20-SOIC This product has a 2016/2/2 number of drivers and receivers. Power-off control: Without Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3.3 V 5 V supply voltage for reliable performance. 1 mA is 92 nA. Output current: 35 mA RS-232 protocol is supported. Maximum supply voltage of 5.5 V Minimum supply voltage is 3 V Number-of-Drivers: 2 Driver The product has 2 Receiver receivers. 150 ns is 23 microseconds. Signal type of the receiver is Single-Ended.

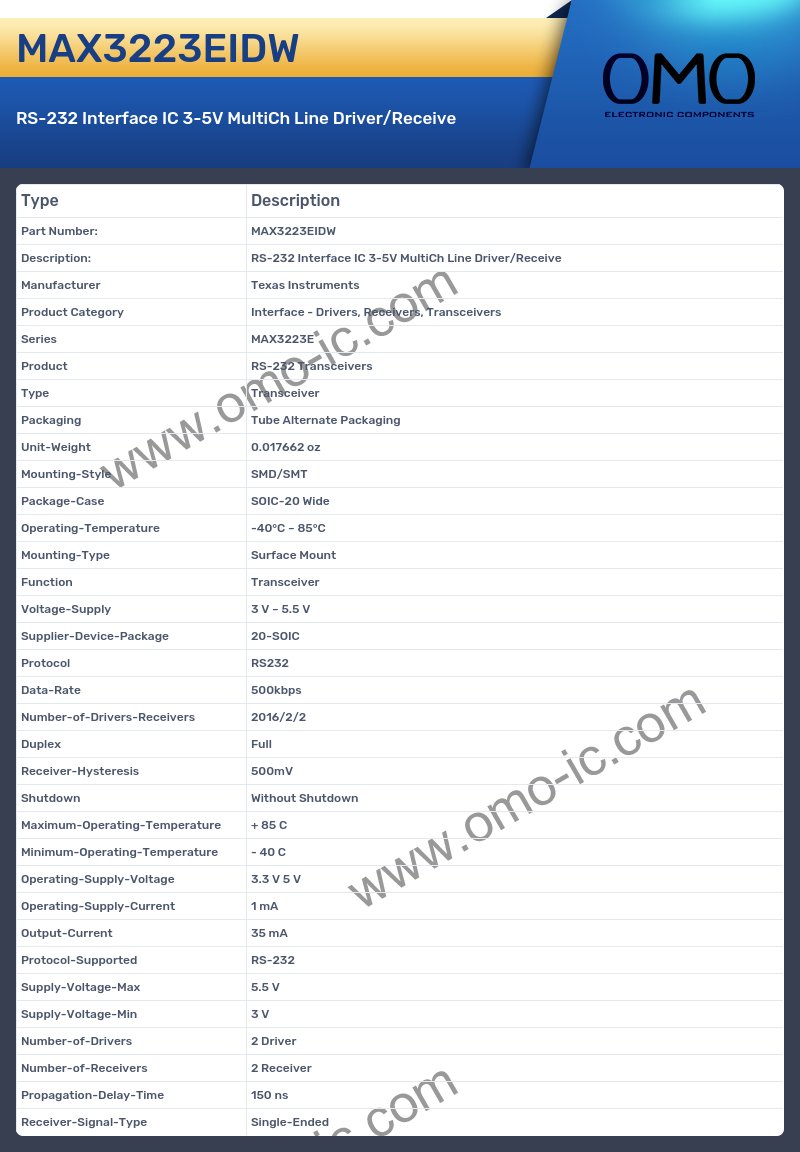

MAX3223EIDW Image

MAX3223EIDW Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series MAX3223E
• Product RS-232 Transceivers
• Type Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.017662 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20 Wide
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Function Transceiver
• Voltage-Supply 3 V ~ 5.5 V
• Supplier-Device-Package 20-SOIC
• Protocol RS232
• Data-Rate 500kbps
• Number-of-Drivers-Receivers 2016/2/2
• Duplex Full
• Receiver-Hysteresis 500mV
• Shutdown Without Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3.3 V 5 V
• Operating-Supply-Current 1 mA
• Output-Current 35 mA
• Protocol-Supported RS-232
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3 V
• Number-of-Drivers 2 Driver
• Number-of-Receivers 2 Receiver
• Propagation-Delay-Time 150 ns
• Receiver-Signal-Type Single-Ended
