MCP1650S-E/MS

MCP1650S-E/MS Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product Weight of 0.004938 oz SMD/SMT Mounting-Style MSOP-8 Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 8-MSOP Number-of-Outputs: 1 Topology: Boost, Flyback, SEPIC feedback Supply Voltage: 2.7 V ~ 5.5 V This product features 'Frequency-Switching' at 750kHz for optimal performance. The Control-Features include Current Limit, Enable, Low Battery, Power Good function. The Positive. Output-Phases: 1 Maximum duty cycle of 88 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Power-off control: Yes Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 5.5 V supply voltage for reliable performance. 120 uA is 92 nA. Switching frequency is 750 kHz

MCP1650S-E/MS Image

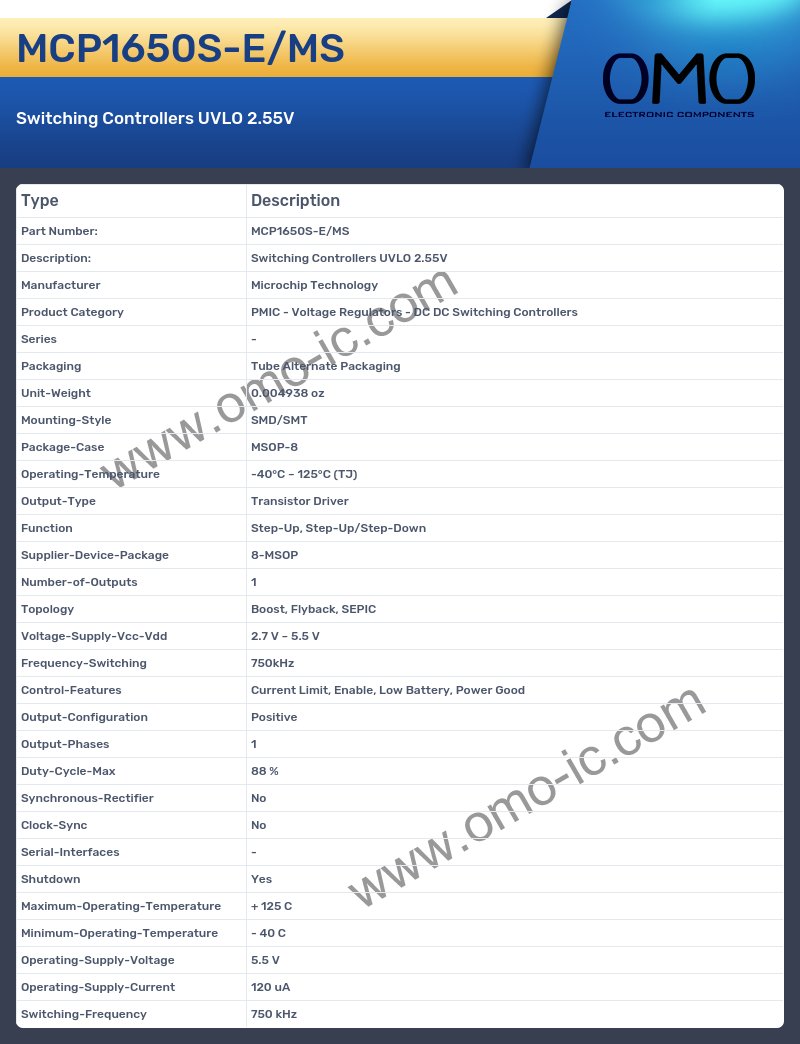

MCP1650S-E/MS Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004938 oz
• Mounting-Style SMD/SMT
• Package-Case MSOP-8
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 8-MSOP
• Number-of-Outputs 1
• Topology Boost, Flyback, SEPIC
• Voltage-Supply-Vcc-Vdd 2.7 V ~ 5.5 V
• Frequency-Switching 750kHz
• Control-Features Current Limit, Enable, Low Battery, Power Good
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 88 %
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Shutdown Yes
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5.5 V
• Operating-Supply-Current 120 uA
• Switching-Frequency 750 kHz
