MCP1755S-5002E/MC Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product Weight of 0.001319 oz SMD/SMT Mounting-Style DFN-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-DFN (2x3) Tolerance of 2 % Up to 16V voltage input Output voltage: 5V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.8 V to 5.5 V Maximum Input Voltage: 17.6 V Output current: 300 mA Load regulation is 0.5 %. The maximum 300 mV is 360 mV. This product's 0.01 % is 0.01 %/V. The product's 70 dB is -20 dB.

MCP1755S-5002E/MC Image

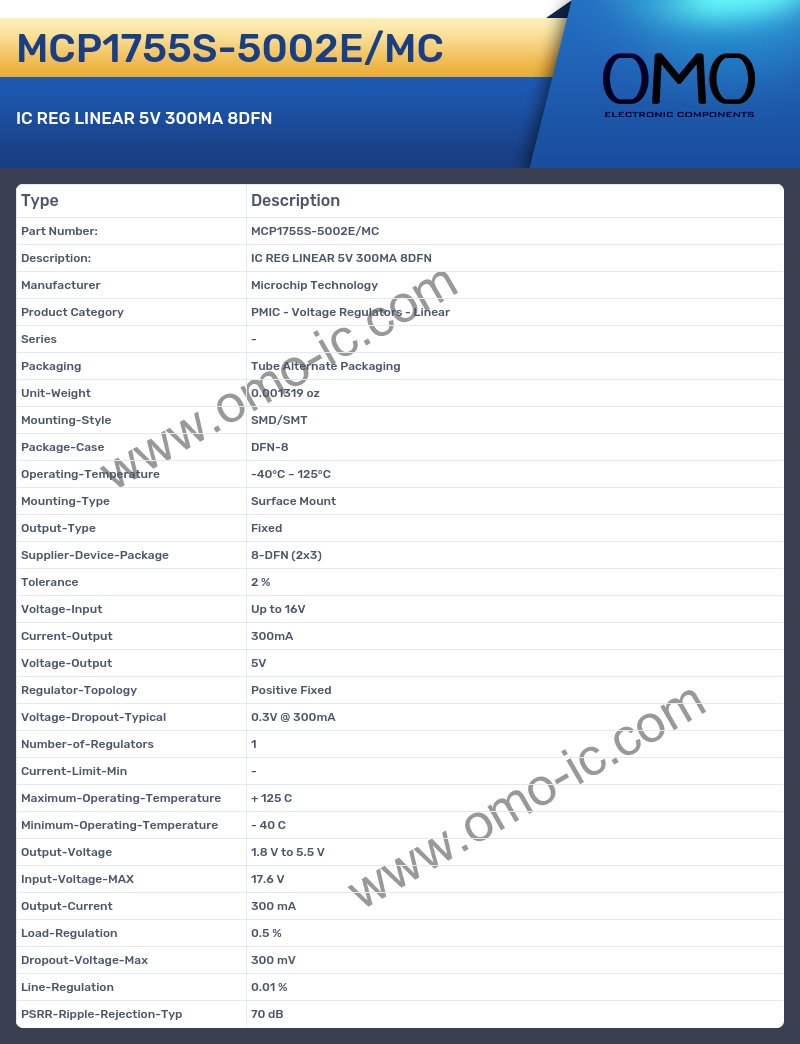

MCP1755S-5002E/MC Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Packaging Tube Alternate Packaging
• Unit-Weight 0.001319 oz
• Mounting-Style SMD/SMT
• Package-Case DFN-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-DFN (2x3)
• Tolerance 2 %
• Voltage-Input Up to 16V
• Current-Output 300mA
• Voltage-Output 5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.3V @ 300mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.8 V to 5.5 V
• Input-Voltage-MAX 17.6 V
• Output-Current 300 mA
• Load-Regulation 0.5 %
• Dropout-Voltage-Max 300 mV
• Line-Regulation 0.01 %
• PSRR-Ripple-Rejection-Typ 70 dB
