MCP1801T-3302I/OT

MCP1801T-3302I/OT Overview

Product belongs to the - series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-5 Up to 10V voltage input Number-of-Outputs: 1 Output Output voltage: 3.3V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 0.25 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 3.3 V Maximum Input Voltage: 10 V Output current: 150 mA The product's + 2 V is 5.1 V. Load regulation is 50 mV. The voltage regulation accuracy of this product is 2 %. Input bias current of 25 uA This product has a 50 uA of 7 mA, making it ideal for low-power applications. The 0.06 V at 30 mA. The maximum 90 mV at 30 mA is 360 mV. This product's 0.2 % / V is 0.01 %/V.

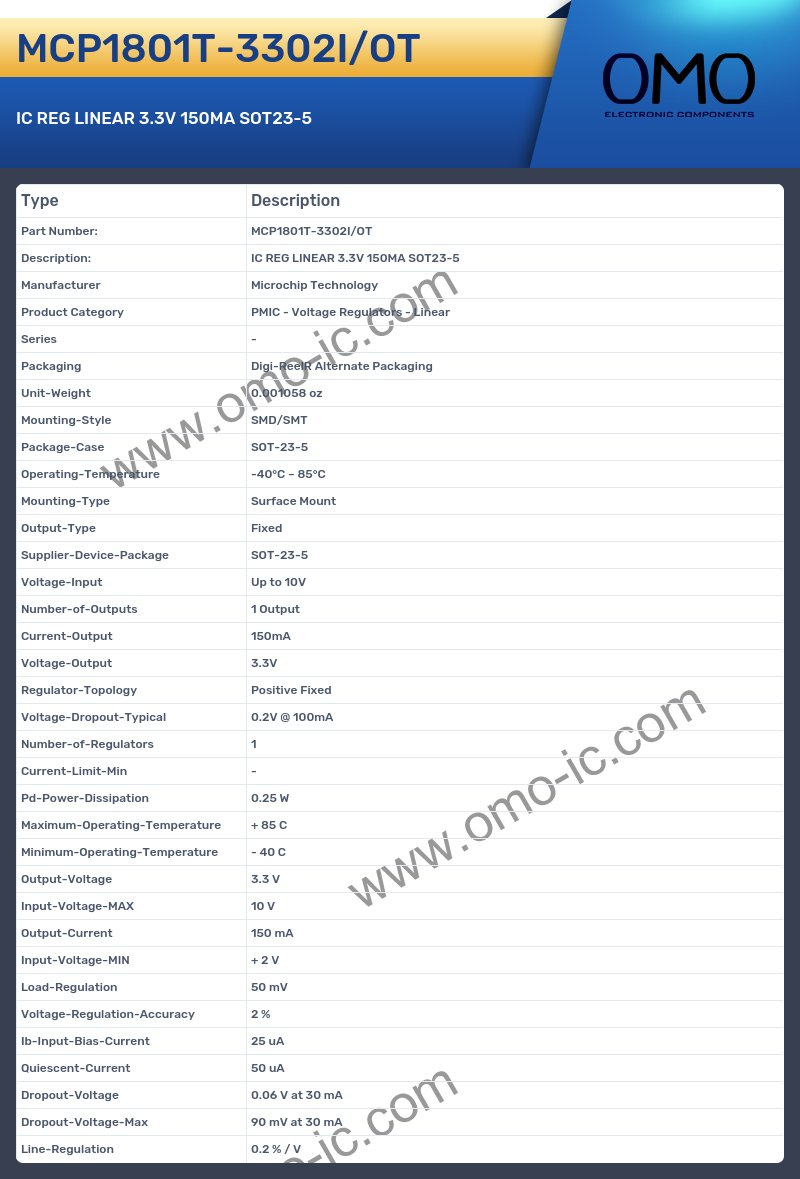

MCP1801T-3302I/OT Image

MCP1801T-3302I/OT Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-5
• Voltage-Input Up to 10V
• Number-of-Outputs 1 Output
• Current-Output 150mA
• Voltage-Output 3.3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.2V @ 100mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 0.25 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Input-Voltage-MAX 10 V
• Output-Current 150 mA
• Input-Voltage-MIN + 2 V
• Load-Regulation 50 mV
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 25 uA
• Quiescent-Current 50 uA
• Dropout-Voltage 0.06 V at 30 mA
• Dropout-Voltage-Max 90 mV at 30 mA
• Line-Regulation 0.2 % / V
