MCP19111T-E/MQ

MCP19111T-E/MQ Overview

Product belongs to the Automotive, AEC-Q100 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002497 oz SMD/SMT Mounting-Style QFN-28 Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: Transistor Driver Product function is Step-Down. Supplier device package: 28-QFN (5x5) Number-of-Outputs: 1 Topology: Buck feedback Supply Voltage: 4.5 V ~ 32 V This product features 'Frequency-Switching' at 100kHz ~ 1.6MHz for optimal performance. The Control-Features include Phase Control function. The Positive. Output-Phases: 1 Maximum duty cycle of The value of Yes is included as a product attribute. No enabled Serial Interfaces: I2C, PMBus, SMBus Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 0.5 V to 3.6 V Input Voltage Range: 4.5 V to 32 V Output current: 30 mA Switching frequency is 100 kHz

MCP19111T-E/MQ Image

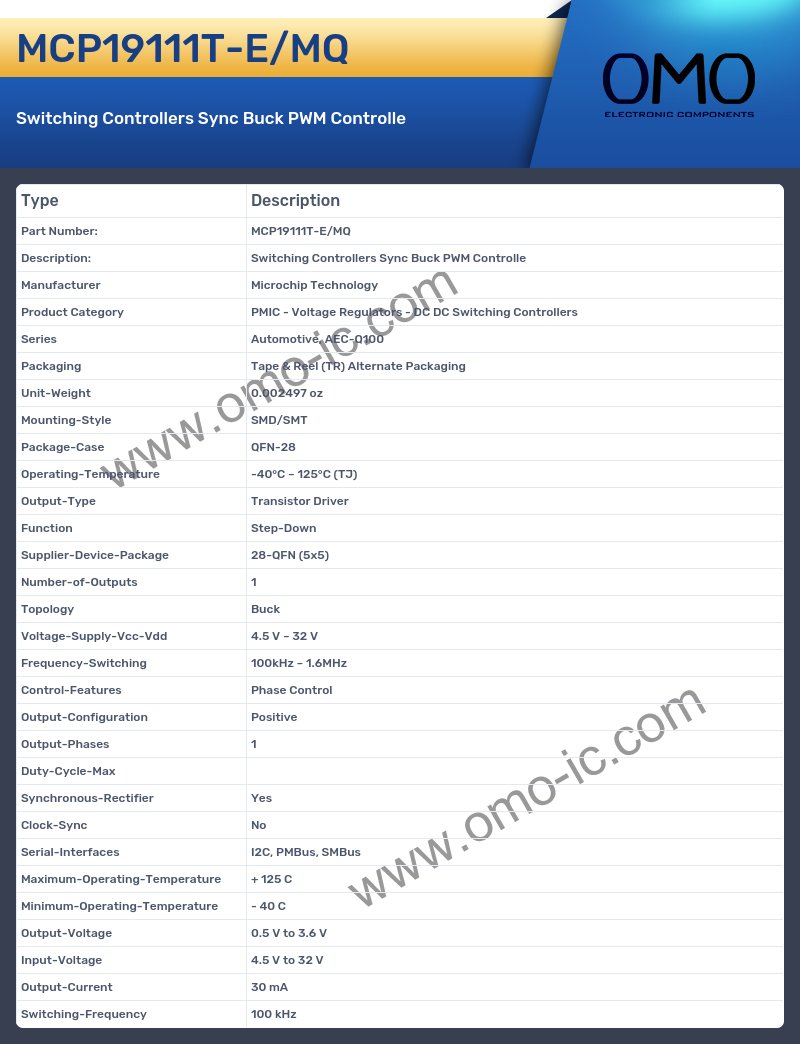

MCP19111T-E/MQ Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series Automotive, AEC-Q100
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.002497 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-28
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type Transistor Driver
• Function Step-Down
• Supplier-Device-Package 28-QFN (5x5)
• Number-of-Outputs 1
• Topology Buck
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 32 V
• Frequency-Switching 100kHz ~ 1.6MHz
• Control-Features Phase Control
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max
• Synchronous-Rectifier Yes
• Clock-Sync No
• Serial-Interfaces I2C, PMBus, SMBus
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.5 V to 3.6 V
• Input-Voltage 4.5 V to 32 V
• Output-Current 30 mA
• Switching-Frequency 100 kHz
