MCP3304T-BI/SL

MCP3304T-BI/SL Overview

Product belongs to the - series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 4 Channel Supplier device package: 16-SOIC This product's 100k. Data-Interface: SPI 13 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 80.02 dB Number-of-Converters: 1 Converter 100 kS/s Sampling Rate Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1 LSB

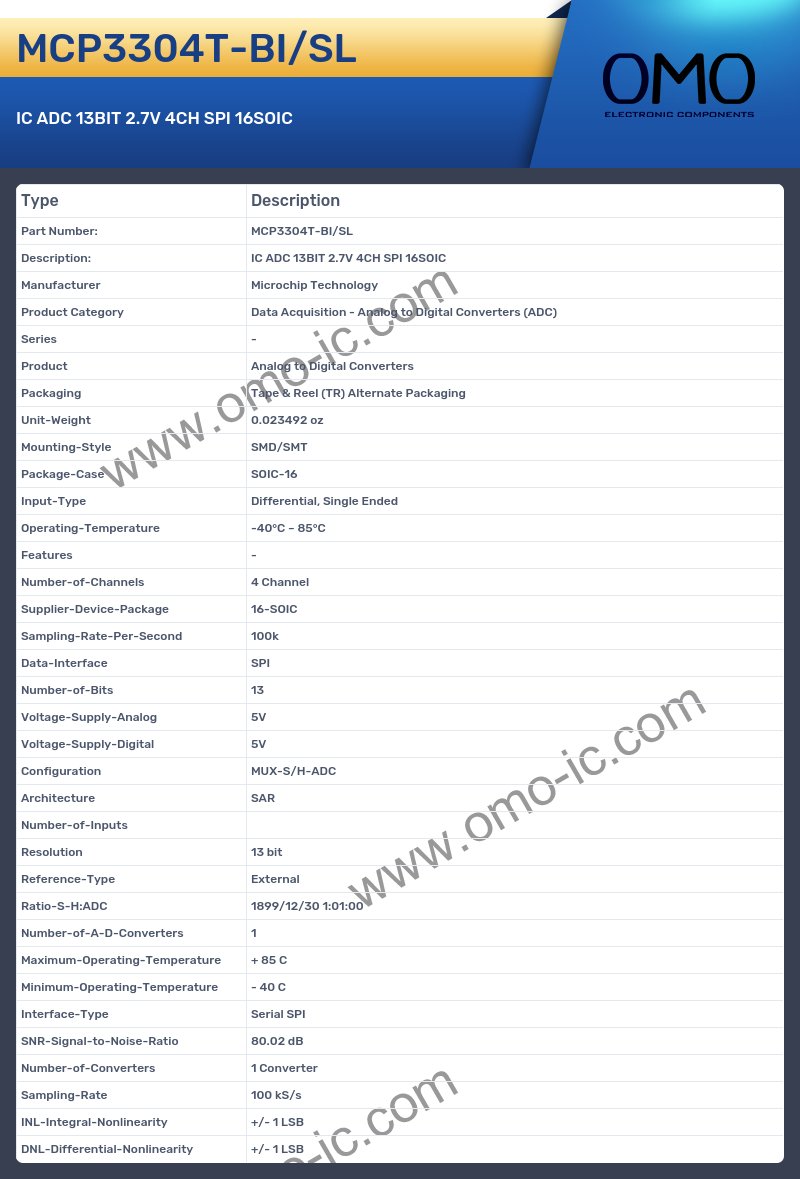

MCP3304T-BI/SL Image

MCP3304T-BI/SL Specifications

• Manufacturer Microchip Technology
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series -
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 4 Channel
• Supplier-Device-Package 16-SOIC
• Sampling-Rate-Per-Second 100k
• Data-Interface SPI
• Number-of-Bits 13
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs
• Resolution 13 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 80.02 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 100 kS/s
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
