MCP4802-E/P

MCP4802-E/P Overview

Product belongs to the - series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.032805 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: -40°C ~ 125°C Output-Type: Voltage - Buffered Number of channels: 2 Channel Supplier device package: 8-PDIP Data-Interface: SPI 8 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is String DAC . Internal is the reference type. Number of D-A converters: 2 The 4.5μs (Typ) is an impressive 15 us. No Differential-Output Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C 415 uA is 92 nA. Serial SPI interface type Maximum supply voltage of 6.5 V Minimum supply voltage is 2.7 V Number-of-Converters: 2 Converter

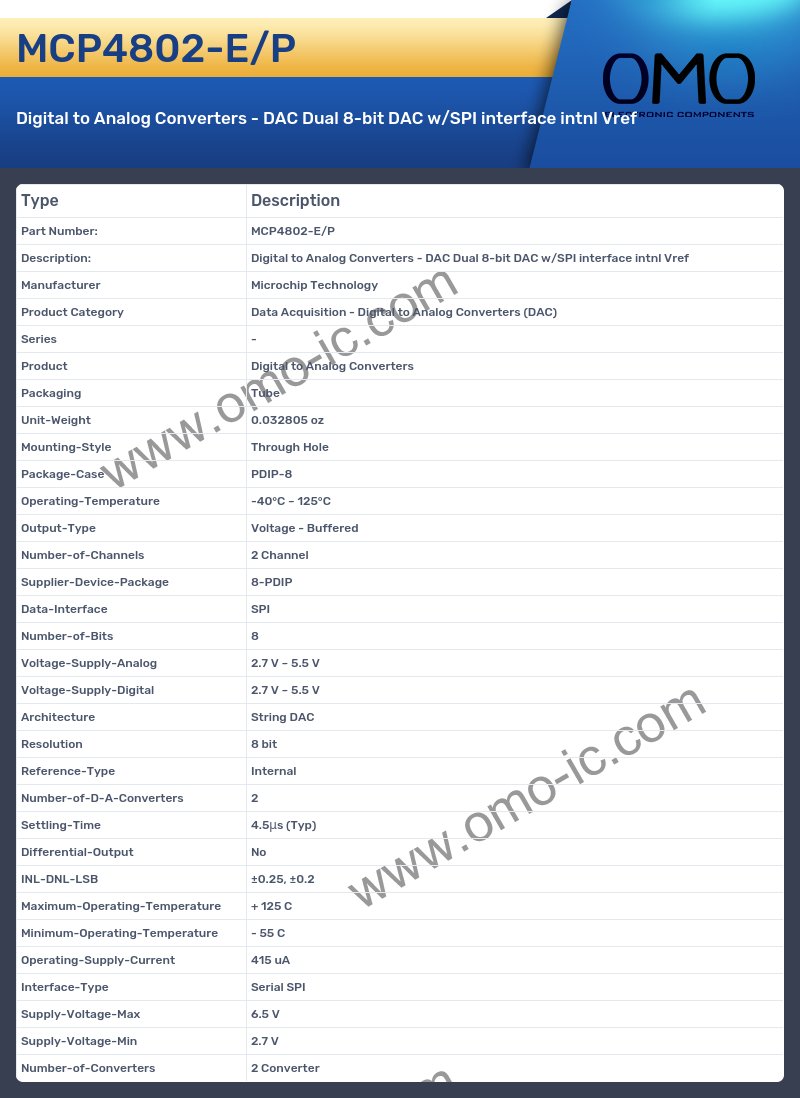

MCP4802-E/P Image

MCP4802-E/P Specifications

• Manufacturer Microchip Technology
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series -
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.032805 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Operating-Temperature -40°C ~ 125°C
• Output-Type Voltage - Buffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-PDIP
• Data-Interface SPI
• Number-of-Bits 8
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture String DAC
• Resolution 8 bit
• Reference-Type Internal
• Number-of-D-A-Converters 2
• Settling-Time 4.5μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±0.25, ±0.2
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 415 uA
• Interface-Type Serial SPI
• Supply-Voltage-Max 6.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-Converters 2 Converter
